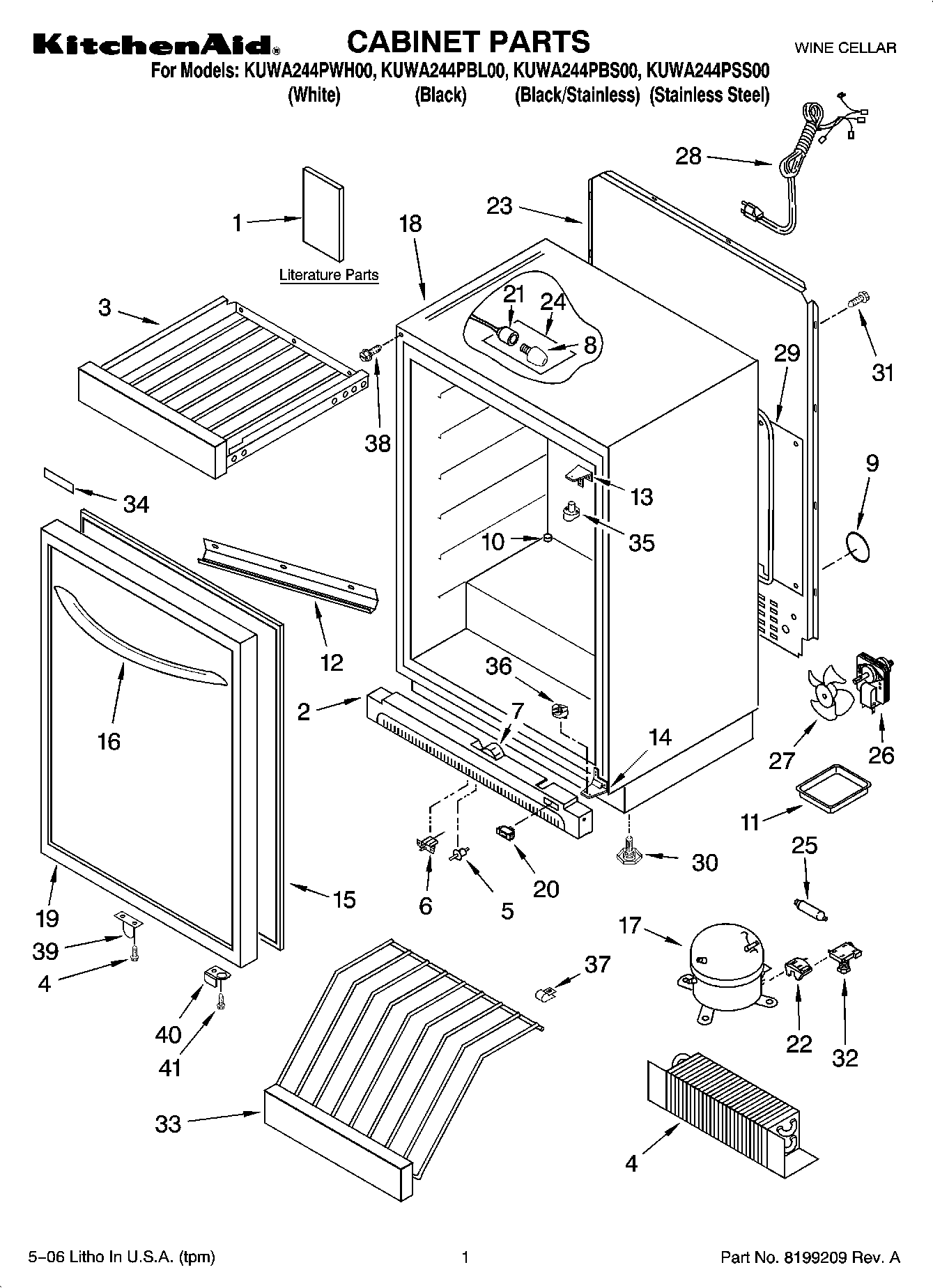

KUWA244PBS00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
2	Grille (White)
2	Grille (Black)
3	Shelf, Wine (5)
4	Condenser
5	Switch, Door
6	THERMOSTAT-REFRIGERATOR
7	Knob, Thermostat (White)
7	Knob, Thermostat (Black)
8	WP22002263 Whirlpool Dryer 10W Light Bulb
9	Cover, Hole
10	Drain Cup
11	Drain Pan
12	Drain Trough
13	Hinge, Top (Stainless)
13	Hinge, Top (White)
13	Hinge, Top (Black)
14	Hinge, Bottom (Stainless)
14	Hinge, Bottom (Black)
14	Hinge, Bottom (White)
15	Gasket, Door (White)
15	Gasket, Door (Grey)
15	Gasket, Door (Black)
16	Handle, Door (Stainless)
16	Handle, Door (White)
16	Handle, Door (Black)
17	Compressor (Includes Items 22, 25 & 32)
18	Cabinet (Not A Servicable Part)
19	Door Assembly (White)
19	Door Assembly (Stainless)
19	Door Assembly (Black)
20	Switch, Light
21	Socket, Light
22	Overload
23	Panel, Rear
24	Cover, Light
25	Drier
26	Fan Motor
27	Blade, Fan Motor
28	Power Cord
29	Evaporator
30	Foot, Leveling (4)
31	WP8281196 Whirlpool Screw
32	Relay
33	Wine Display Rack
34	Nameplate
34	Nameplate (White)
35	Closer, Door (Upper)
36	Closer, Door (Lower)
37	Clip
38	Plug, Door (White Cabinet)
38	Plug, Door (Black Cabinet)
38	Plug, Door (Stainless Cabinet (Screw))
39	Bracket, Door Switch
40	Plate, Pivot (White)
40	Plate, Pivot (Black)
41	WP8281227 Whirlpool Screw
41	WPL ARI117154A
