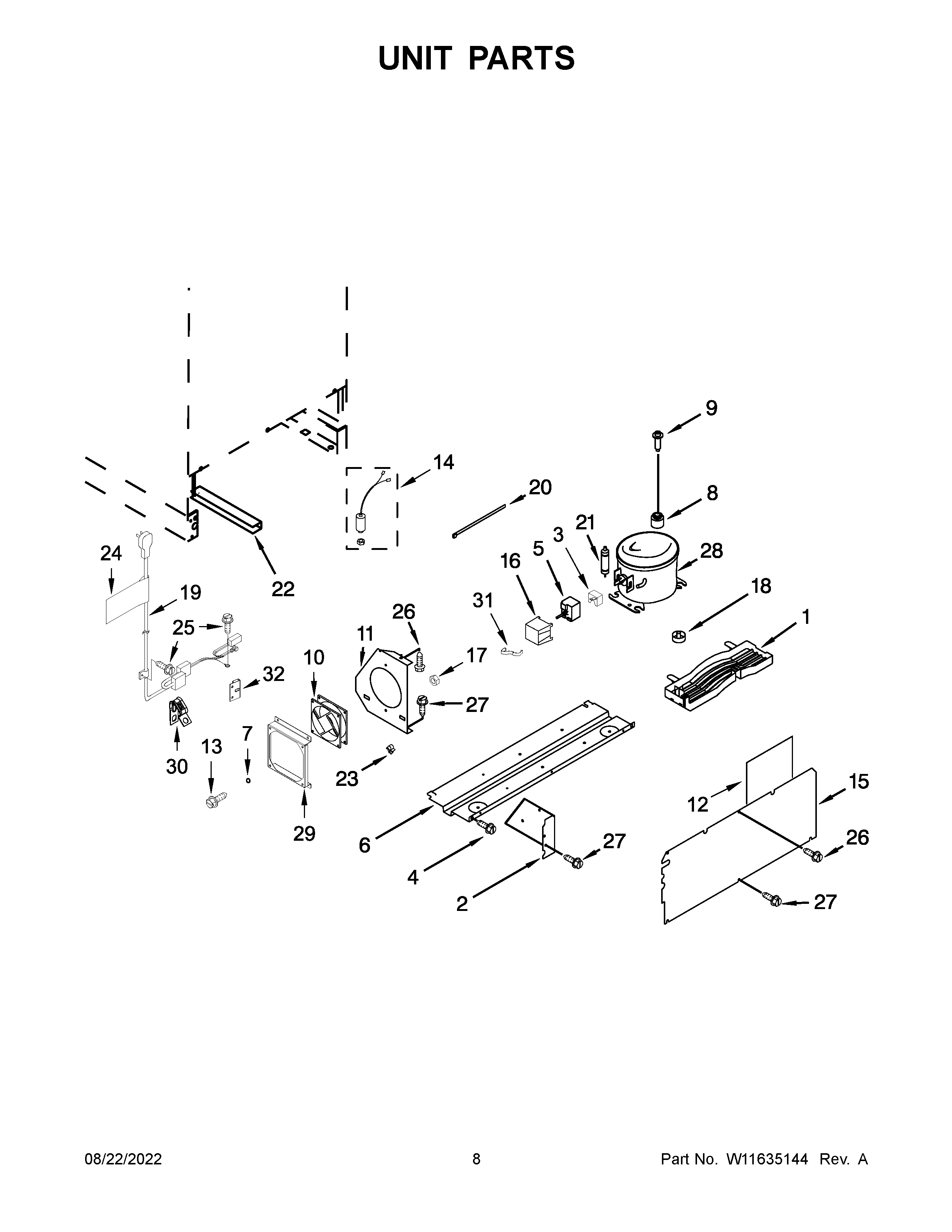

KUWL204EPA01 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11562741 Whirlpool Refrigerator Compressor
1	W10316689 Whirlpool Refrigerator Drip Pan
2	BRACKET, (DEFROST TIMER)
3	OVERLOAD
4	4344797 Whirlpool Screw
5	W11596023 Whirlpool Start Device
6	CABINET BASE PLATE
7	W10204688 Whirlpool Plate Assembly
8	WP4344779 Whirlpool Refrigerator Grommet
9	W10772873 Whirlpool Screw
10	W10772882 Whirlpool Refrigerator Condenser Motor
12	INSULATION, REAR COVER
13	SCREW
14	W10778969 Whirlpool Refrigerator Capacitor
15	W10796445 Whirlpool Refrigerator Back Cover
16	COVER, RELAY
17	NUT
18	W10163276 Whirlpool Refrigerator Trap
19	WPW10204676 Whirlpool Refrigerator Power Cord
20	4344829 Whirlpool Tie Wire
21	W10163273 Whirlpool Refrigerator Tube
22	TRIM, EDGE
23	W10238022 Whirlpool Refrigerator Clip
24	4344913 Whirlpool Label Assembly
25	4344826 Whirlpool Refrigerator Screw
26	SCREW
27	W11380570 Whirlpool Microwave Screw
28	W11422743 Whirlpool Compressor
29	W11506521 Whirlpool Refrigerator Bracket
30	CLAMP, CORD
31	W11498144 Whirlpool Retainer
32	CLAMP, CORD
