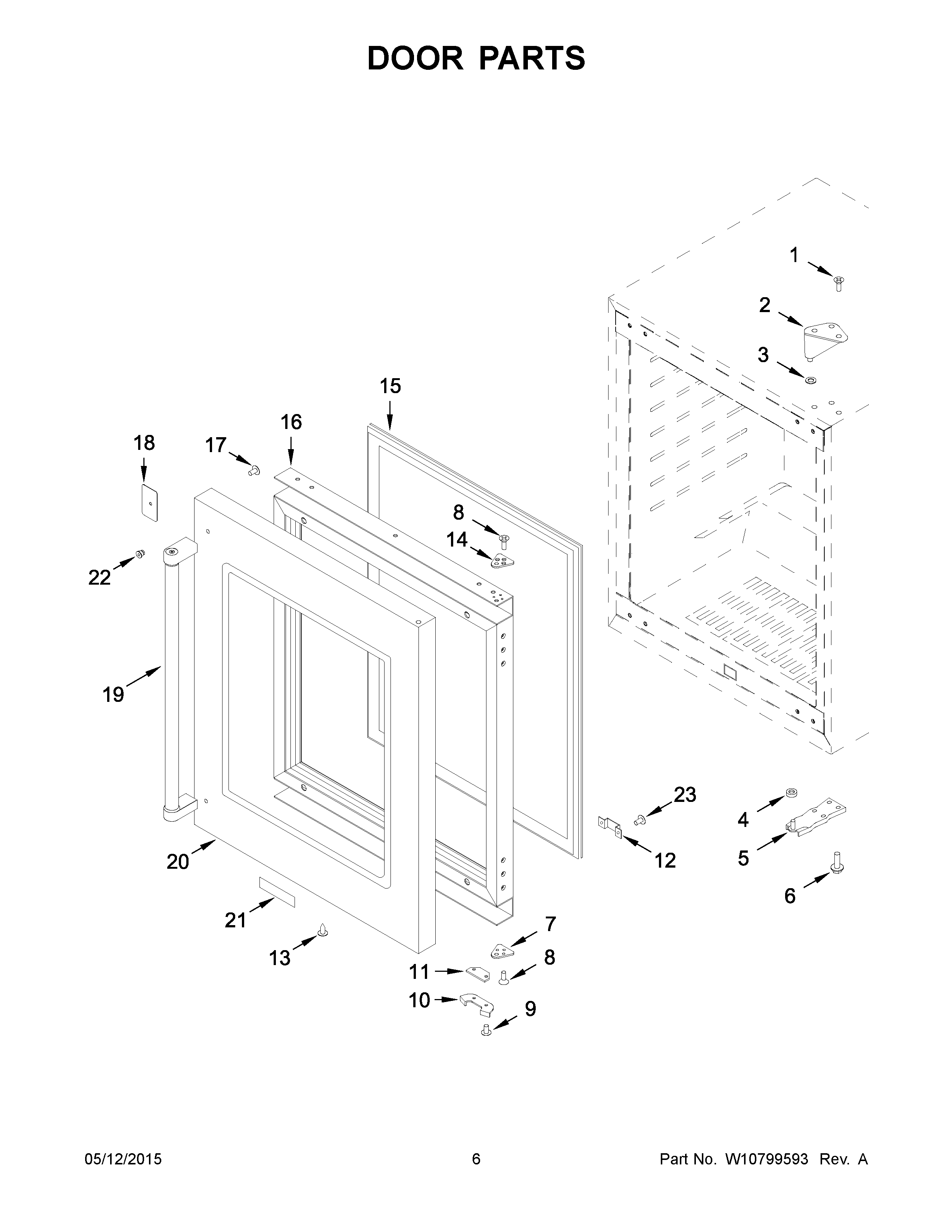

KUWL204ESB00 04 – DOOR PARTS

Products

Position	Product
1	4344796 Whirlpool Refrigerator Screw
2	4344754 Whirlpool Refrigerator Door Hinge
3	4344760 Whirlpool Refrigerator Washer
4	W11241702 Whirlpool Refrigerator Washer
5	W10239363 Whirlpool Refrigerator Door Hinge
5A	4344787 Whirlpool Refrigerator Door Hinge
6	W10780355 Whirlpool Refrigerator Screw
7	4344756 Whirlpool Refrigerator Spacer
8	W10243123 Whirlpool Refrigerator Screw
9	4344801 Whirlpool Refrigerator Screw
10	4344758 Whirlpool Refrigerator Bracket
11	4344788 Whirlpool Refrigerator Spacer
12	SWITCH PLATE
13	SCREW
14	4344755 Whirlpool Refrigerator Spacer
15	WPW10624183 Whirlpool Refrigerator Gasket
16A	W11431237 Whirlpool Refrigerator Door
16	W11431969 Whirlpool Refrigerator Door
17	W10859467 Whirlpool Refrigerator Screw
18	W11263339 Whirlpool Refrigerator Plate
19	W11497229 Whirlpool Refrigerator Handle
20	W11164089 Whirlpool Refrigerator FRT Drawer
20A	W10797360 Whirlpool Refrigerator Front Drawer
21	W11179312 Whirlpool Refrigerator Nameplate
22	W11179356 Whirlpool Refrigerator Stud Handle
23	W10319187 Whirlpool Refrigerator Screw
