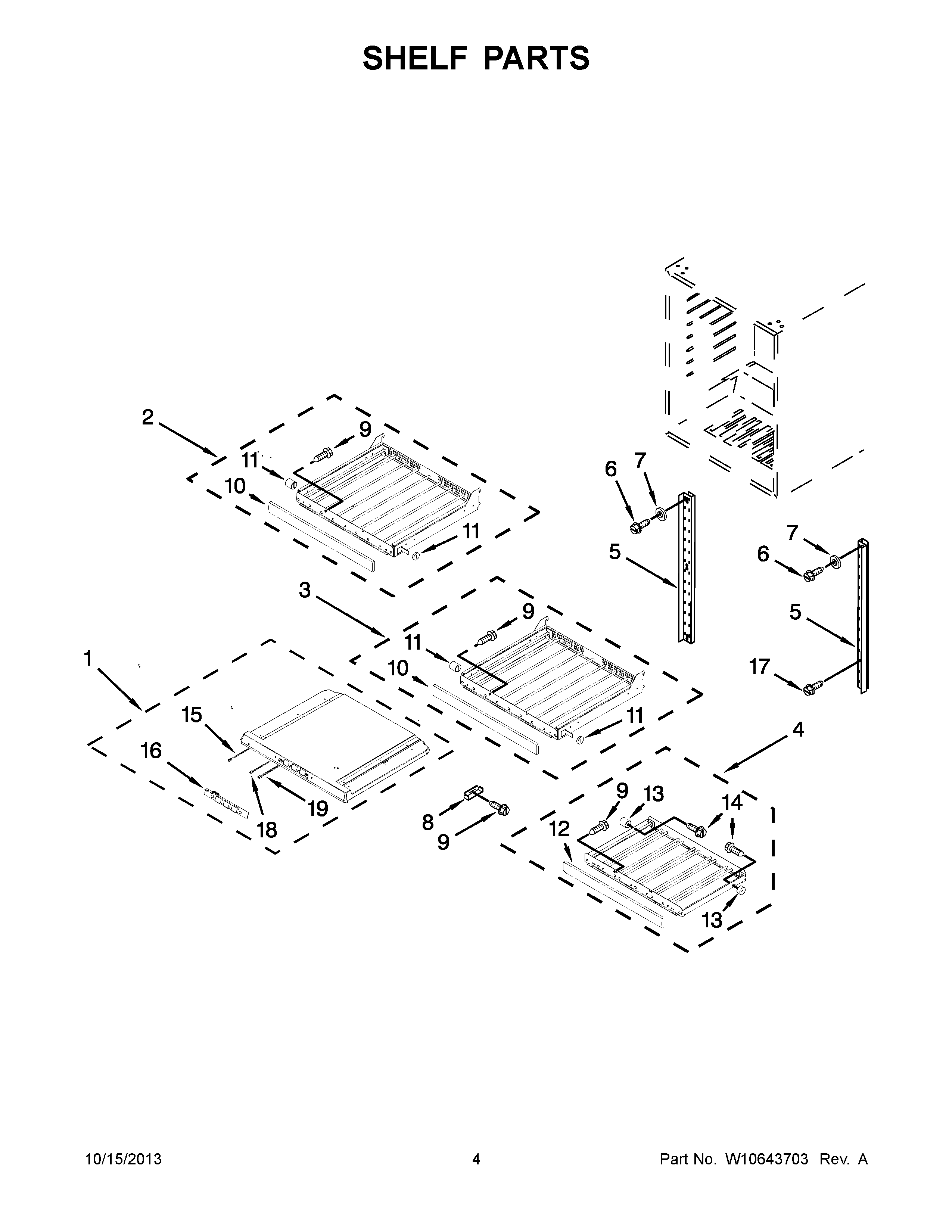

KUWL304CSS00 03 – SHELF PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	LED Spacer
NI	Support Spacer
NI	OVERLAY, DISPLAY
NI	Support
NI	SCREW
1	TEMPERATURE SEPARATOR
2	WINE RACK, UPPER
3	WINE RACK, MIDDLE
4	WINE RACK, BOTTOM
5	LADDER, SHELF (LEFT SIDE)
5	LADDER, SHELF (RIGHT SIDE)
6	Screw
7	Washer
8	Stop, Lower Rack
9	W10281318 Whirlpool Refrigerator Screw
10	TRIM, UPPER & MIDDLE RACKS
11	Support (Right)
11	Support (Left)
12	TRIM, LOWER RACK
13	4344886 Whirlpool Support
13	Support, Bumper (Left)
14	Screw (Left)
14	Screw (Right)
15	W10238024 Whirlpool Wire
16	W10282164 Whirlpool Refrigerator Display
17	SCREW W/WASHER
18	W10238025 Whirlpool Refrigerator Sensor
19	W10238026 Whirlpool Refrigerator Sensor
