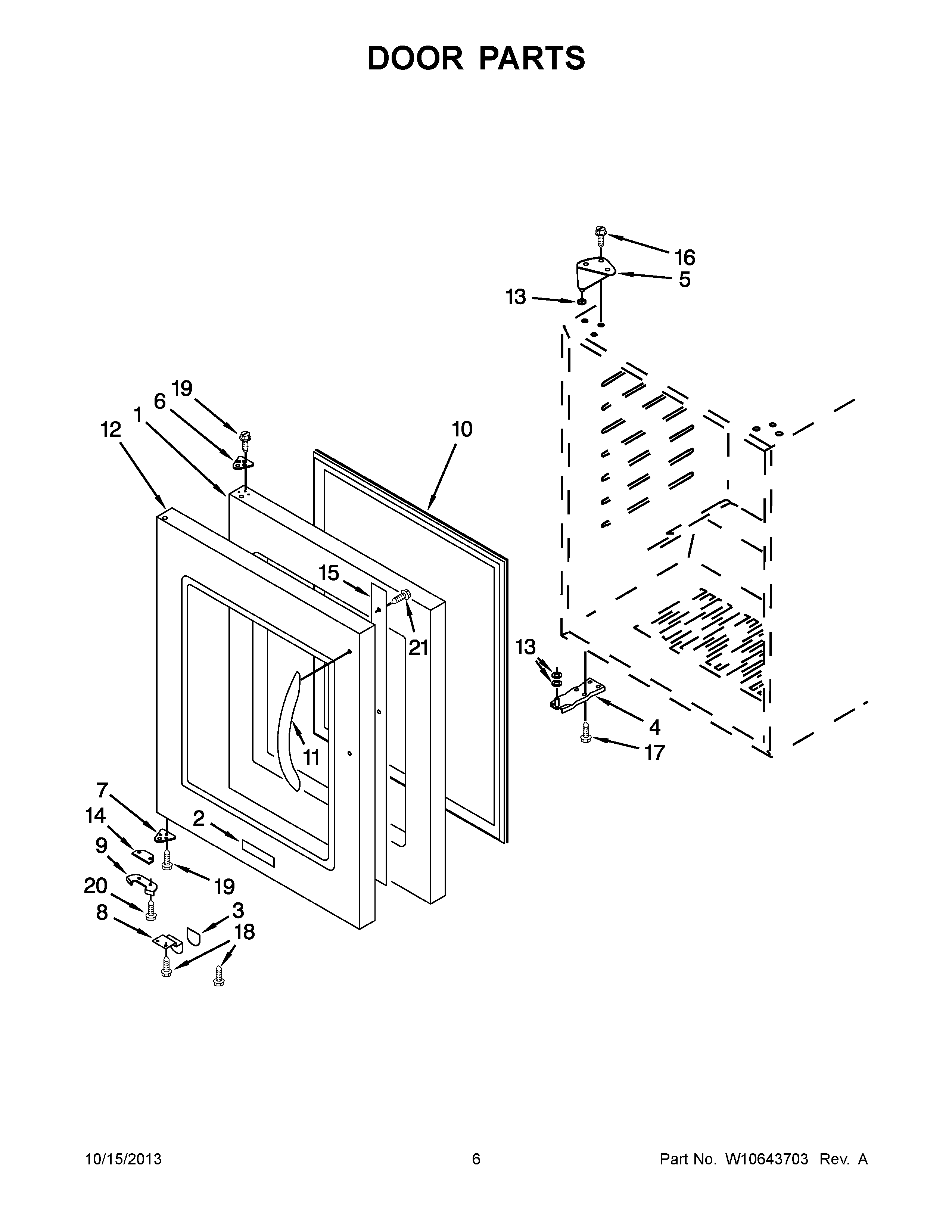

KUWL304CSS00 04 – DOOR PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NICLEANER, STAINLESS STEEL (12 OZ)
1BRACKET, THERMOSTAT
2NAME PLATE
3GASKET-PUSH PLATE
44344787 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344755 Whirlpool Refrigerator Spacer
74344756 Whirlpool Refrigerator Spacer
84344757 Whirlpool Refrigerator Bracket
9DOOR STOP
10WPW10238068 Whirlpool Refrigerator Gasket
11WP9872207S Whirlpool Refrigerator Handle
12DOOR SKIN, (STAINLESS STEEL)
134344760 Whirlpool Refrigerator Washer
144344788 Whirlpool Refrigerator Spacer
15Plate
164344796 Whirlpool Refrigerator Screw
17Screw
18W10837731 Whirlpool Screw Assembly
19W10243123 Whirlpool Refrigerator Screw
204344801 Whirlpool Refrigerator Screw
21SCREW, HANDLE
