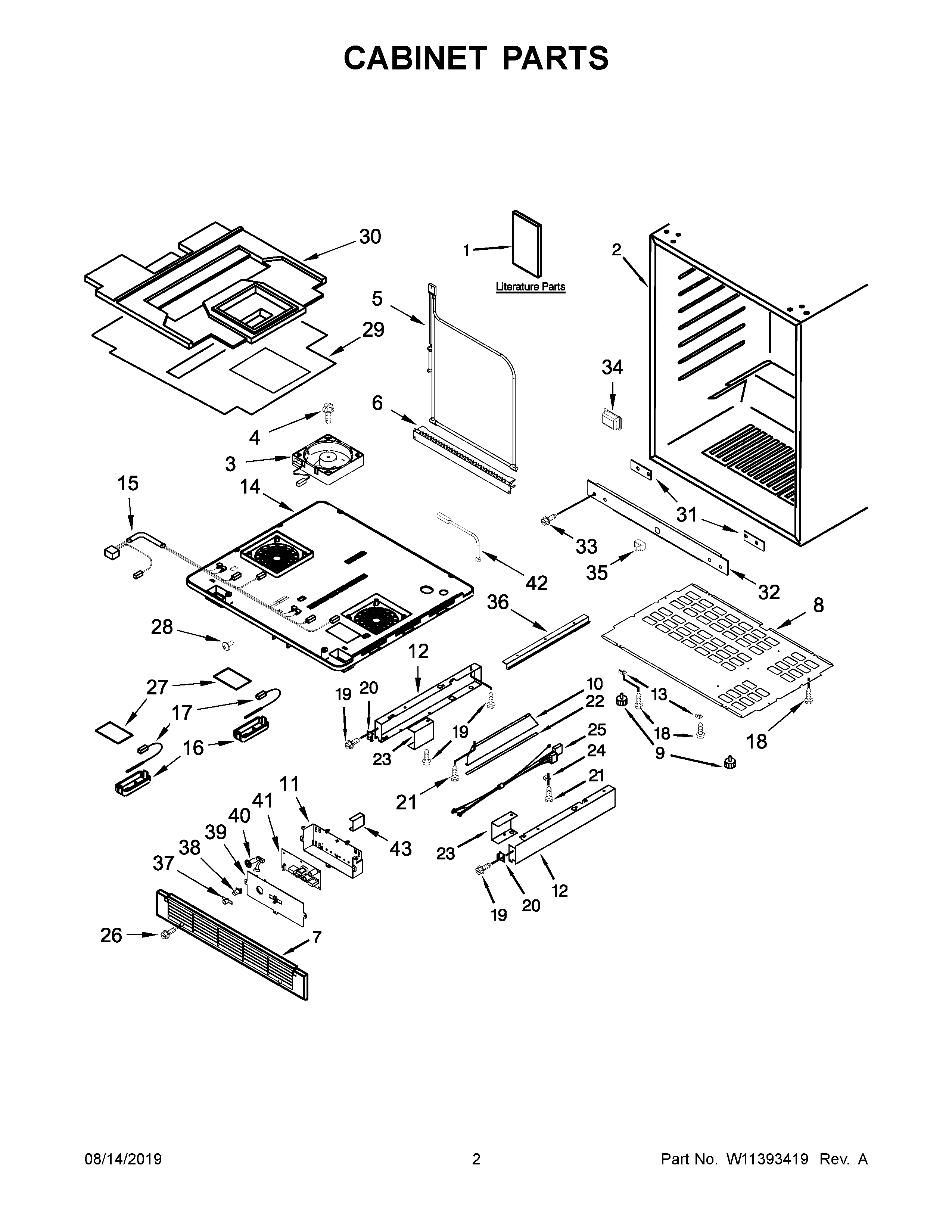

KUWL304EBS01 02 – CABINET PARTSadmin2025-04-26T09:35:07+00:00KUWL304EBS01 02 – CABINET PARTS ProductsPositionProduct1AENERGY GUIDE1USE & CARE GUIDE2CABINET (NOT A SERVICEABLE PART)3W10854409 Whirlpool Refrigerator Evaporator Motor4W10205061 Whirlpool Screw Assembly5W10292475 Whirlpool Refrigerator Defrost Bimetal64344747 Whirlpool Refrigerator Shield7W10780351 Whirlpool Refrigerator Grille8W10772863 Whirlpool Refrigerator Cabinet Base9W11106296 Whirlpool Refrigerator Leveler10W10778959 Whirlpool Cabinet Base11W10772866 Whirlpool Refrigerator Control Box12AW10797388 Whirlpool Refrigerator Support12W10797389 Whirlpool Refrigerator Support13W10239388 Whirlpool Brace14COVER, FAN15W10780364 Whirlpool Refrigerator Wire Harness16SENSOR CASE17W11238391 Whirlpool Refrigerator Thermistor184344826 Whirlpool Refrigerator Screw19W10780355 Whirlpool Refrigerator Screw20W10204640 Whirlpool Refrigerator Clip21SCREW224344823 Whirlpool Refrigerator Seal23A4344820 Whirlpool Refrigerator Support234344821 Whirlpool Refrigerator Support247111P002-60 Whirlpool Clamp25W10772870 Whirlpool Refrigerator Wire Harness26W10319184 Whirlpool Refrigerator Screw27W10204948 Whirlpool Refrigerator Control Box28SCREW29PLATE COVER30INSULATION, FAN COVER31SPACER, FRAME FRONT32FRAME FRONT, BOTTOM33W10780349 Whirlpool Refrigerator Screw34COVER35W10721454 Whirlpool Refrigerator Switch36W10204674 Whirlpool Refrigerator Baffle37W10797391 Whirlpool Refrigerator Cover38W10780359 Whirlpool Refrigerator Sensor39W10772869 Whirlpool Refrigerator Cover40W10780358 Whirlpool Refrigerator Speaker41W10808108-includeCORE Whirlpool W10808108 Refrigerator Electronic Control Board + Core42W11573590 Whirlpool Refrigerator Thermistor43BRACKET, PCB
