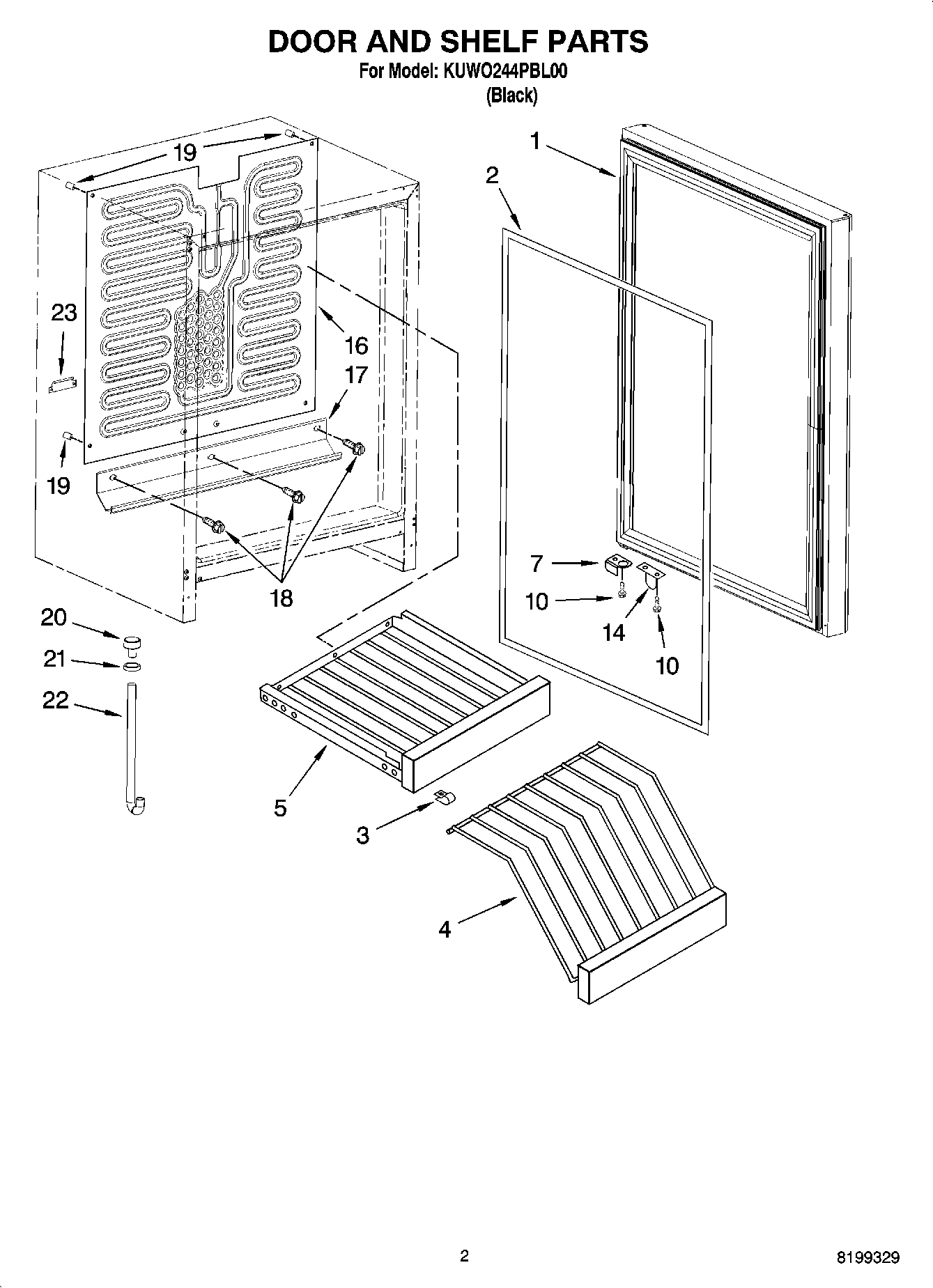

KUWO244PBL00 02 – DOOR AND SHELF PARTS

Written by

Products

Position	Product
1	Door Assembly (Includes Gasket)
2	Gasket, Door (Black)
3	Clip
4	Wine Display Rack
5	Shelf, Wine (5)
7	Plate, Pivot (Black)
10	WP8281227 Whirlpool Screw
14	Bracket, Door Switch
16	Evaporator
17	Channel, Drain
18	Rivet, Push-In
19	Spacer
20	Drain Cup
21	Washer, Foam
22	Tube, Drain
23	Clamp
