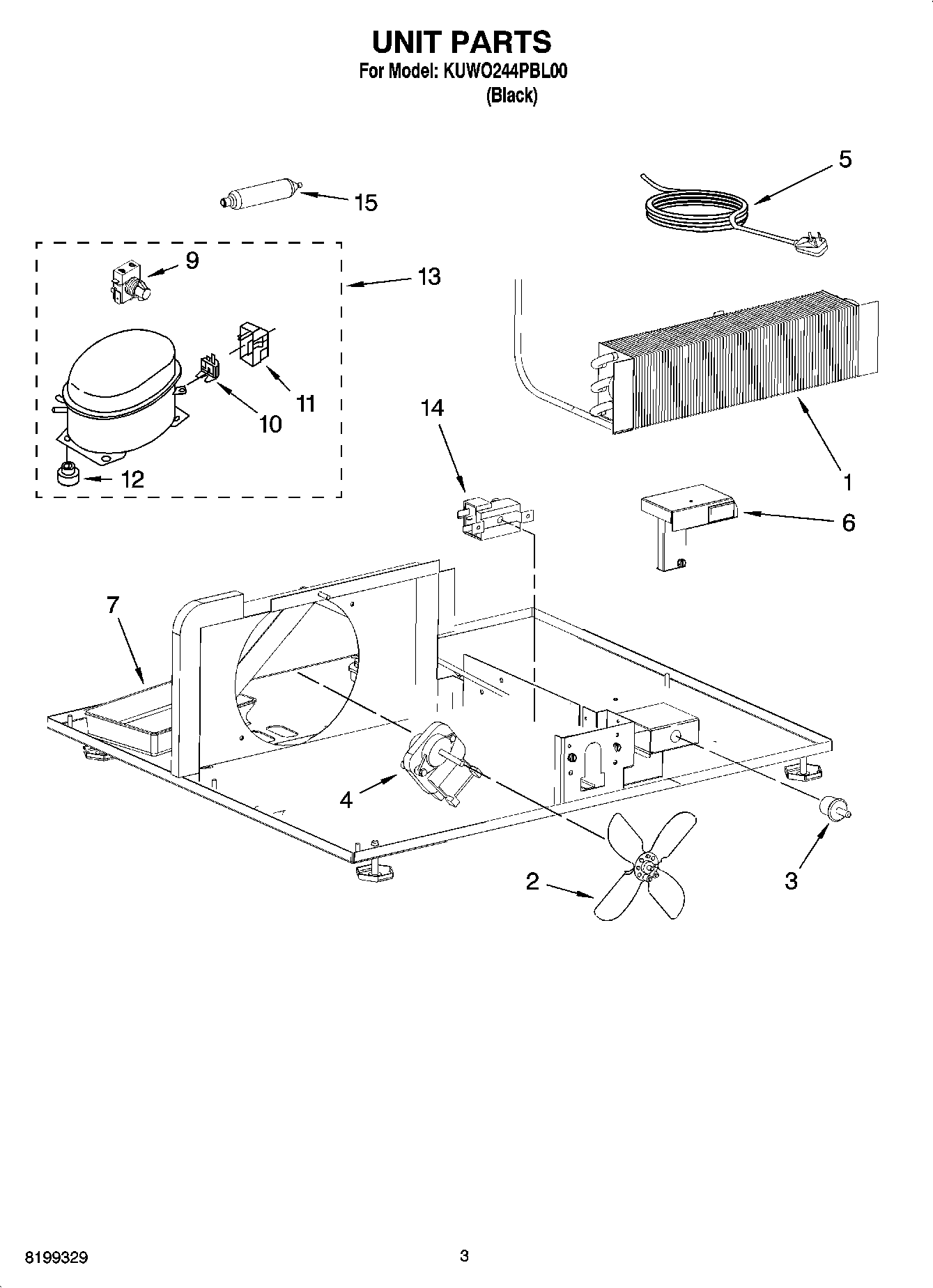

KUWO244PBL00 03 – UNIT PARTS

Products

Position	Product
1	Condenser
2	Blade, Fan Motor
3	Switch, Door
4	Fan Motor
5	Power Cord
6	Bracket, Switch
7	Drain Pan
9	Relay
10	Overload
11	WP2162358 Whirlpool Refrigerator Terminal Cover
12	WP2163786 Whirlpool Refrigerator Grommet
13	Compressor (Includes Items 22, 25 & 32)
14	THERMOSTAT-REFRIGERATOR
15	Drier
15	REFRIGERANT CHARGE 4.0 oz. (R-134)
