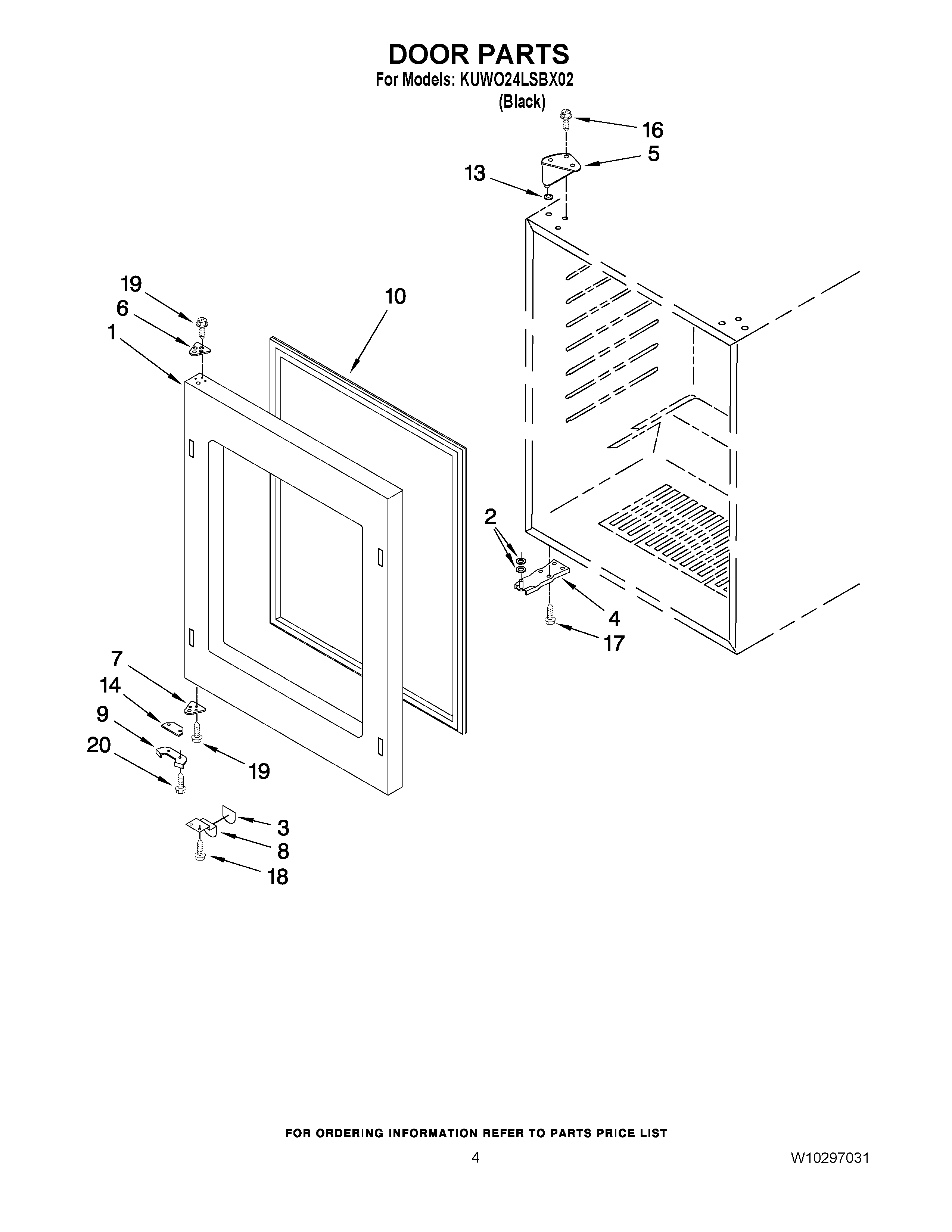

KUWO24LSBX02 03 – DOOR PARTS

Products

PositionProduct
NIInstallation Kit, Door Panel
1Door Assembly (Includes Gasket)
2W11241702 Whirlpool Refrigerator Washer
3GASKET-PUSH PLATE
44344787 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344804 Whirlpool Spacer
74344798 Whirlpool Spacer
84344757 Whirlpool Refrigerator Bracket
9Door Stop (Black)
10WPW10238068 Whirlpool Refrigerator Gasket
134344760 Whirlpool Refrigerator Washer
144344803 Whirlpool Spacer
16SCREW
17Screw, Lower Hinge (Quantity 1)
17Screw
18W10837731 Whirlpool Screw Assembly
19W10243123 Whirlpool Refrigerator Screw
204344801 Whirlpool Refrigerator Screw
