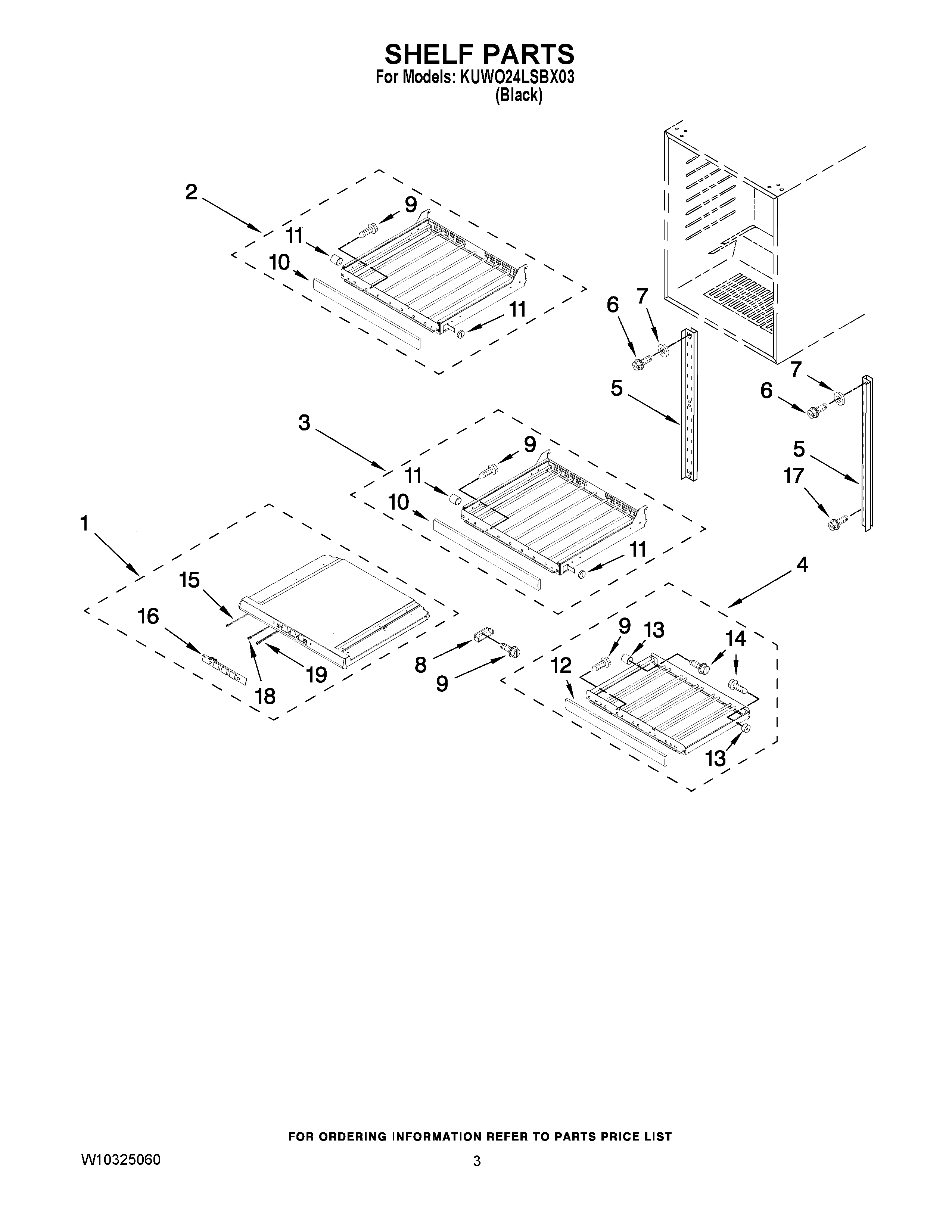

KUWO24LSBX03 02 – SHELF PARTS

Products

Position	Product
NI	LED Spacer
NI	Support
NI	SCREW
NI	SEAL
NI	OVERLAY, DISPLAY
NI	Support Spacer
1	W10297314 Whirlpool Refrigerator Separator
2	Wine Rack, (4)
3	Wine Rack, (1)
4	Wine Rack, Lower
5	LADDER, SHELF (LEFT SIDE)
5	LADDER, SHELF (RIGHT SIDE)
6	Screw
7	Washer
8	Stop, Lower Rack
9	Screw
10	TRIM, TOP AND MIDDLE RACKS
11	Support (Right)
11	Support (Left)
12	TRIM, LOWER RACK
13	Support, Bumper (Left)
13	4344886 Whirlpool Support
14	Screw (Right)
14	Screw (Left)
15	W10238024 Whirlpool Wire
16	W10282164 Whirlpool Refrigerator Display
17	SCREW W/WASHER
18	W10238025 Whirlpool Refrigerator Sensor
19	W10238026 Whirlpool Refrigerator Sensor
