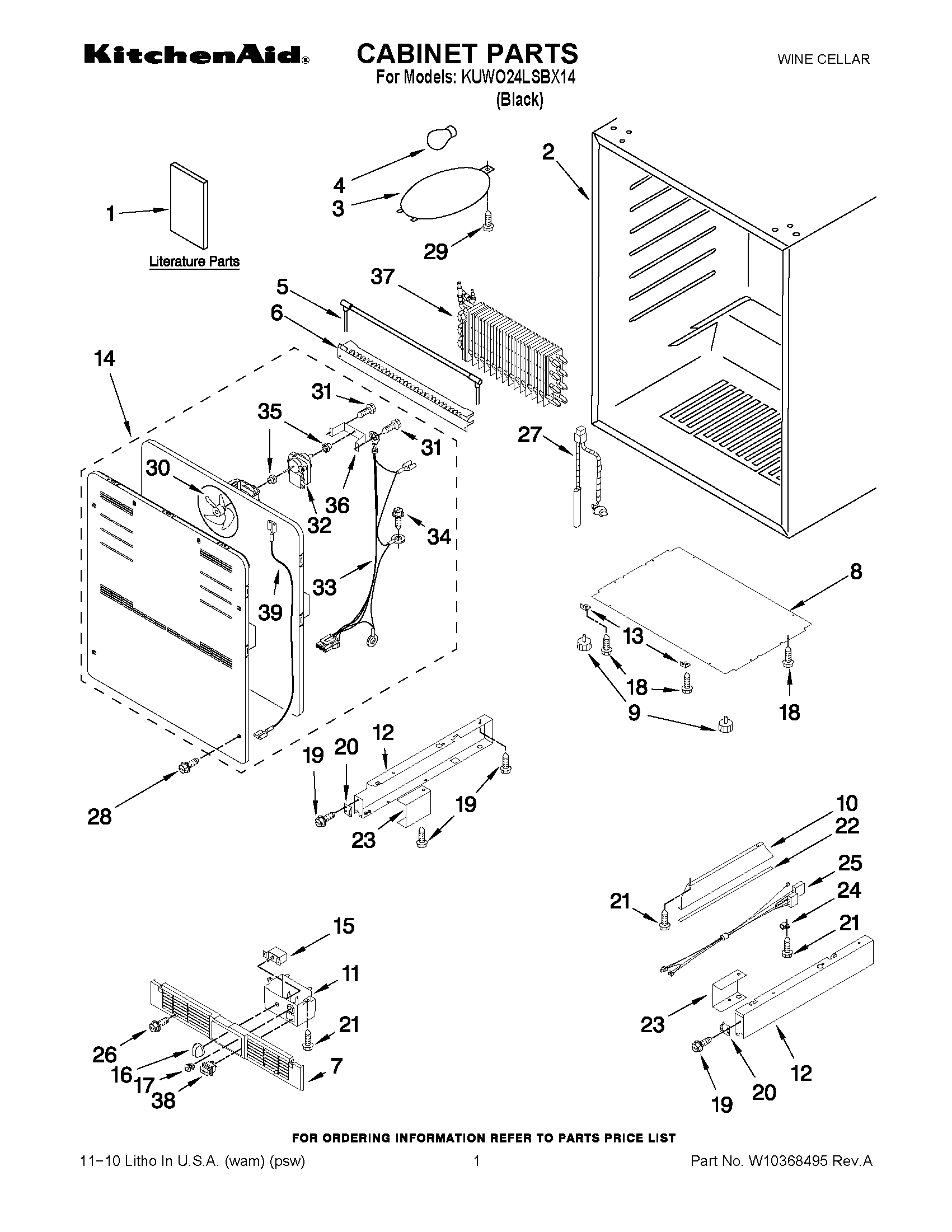

KUWO24LSBX14 01 – CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
3	Lens, Light
4	WP22002263 Whirlpool Dryer 10W Light Bulb
5	W11230119 Whirlpool Refrigerator Heater
6	4344747 Whirlpool Refrigerator Shield
7	GRILLE
8	Plate, Bottom
9	W11106296 Whirlpool Refrigerator Leveler
10	Brace, Support
11	Control Box
12	Frame, Side (Right Side)
12	4344789 Whirlpool Refrigerator Support
13	W10239388 Whirlpool Brace
14	W10299347 Whirlpool Refrigerator Evaporator Motor
15	WP4344859 Whirlpool Refrigerator Thermostat
16	WP3402573 Whirlpool Appliance Knob
17	WP4344767 Whirlpool Refrigerator Switch
19	Screw
20	Clip, Grille
21	SCREW
22	4344823 Whirlpool Refrigerator Seal
23	4344821 Whirlpool Refrigerator Support
23	4344820 Whirlpool Refrigerator Support
24	W11456069 Whirlpool Refrigerator Clamp
25	HARNESS, WIRE
26	4344826 Whirlpool Refrigerator Screw
27	W10860146 Whirlpool Refrigerator Defrost Bi-Metal
28	4344793 Whirlpool Screw
29	Screw
30	WPW10299081 Whirlpool Refrigerator Fan Blade
31	Screw
32	WPW10299082 Whirlpool Refrigerator Evaporator Motor
33	4344877 Whirlpool Refrigerator Wire Harness
34	W11380570 Whirlpool Microwave Screw
35	Grommet, Fan Motor
36	4344899 Whirlpool Refrigerator Bracket
37	CABINET (NOT A SERVICEABLE PART)
38	4344858 Whirlpool Refrigerator Switch
39	TRANSFORMER CABLE
