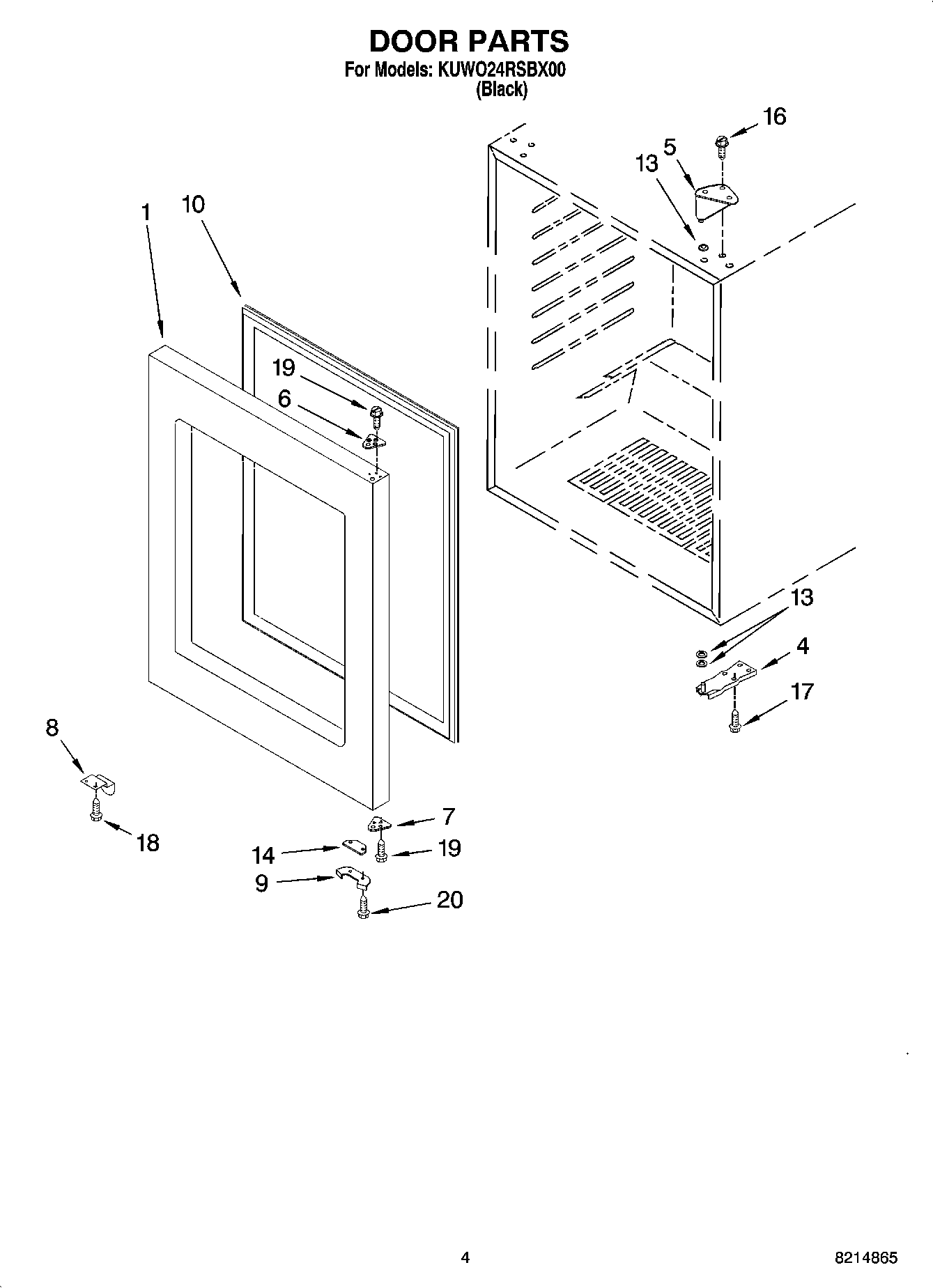

KUWO24RSBX00 03 – DOOR PARTS

KUWO24RSBX00 03 – DOOR PARTS

Written by

in

KUWO24RSBX00 03 – DOOR PARTS

Products

PositionProduct
1Door Assembly (Includes Gasket)
4W10239363 Whirlpool Refrigerator Door Hinge
54344754 Whirlpool Refrigerator Door Hinge
64344804 Whirlpool Spacer
74344798 Whirlpool Spacer
84344757 Whirlpool Refrigerator Bracket
94344802 Whirlpool Bracket Assembly
10WPW10238068 Whirlpool Refrigerator Gasket
134344760 Whirlpool Refrigerator Washer
144344803 Whirlpool Spacer
164344796 Whirlpool Refrigerator Screw
174344797 Whirlpool Screw
17Screw, Lower Hinge (Quantity 1)
18SCREW
19Screw
20Installation Kit, Door Panel
204344801 Whirlpool Refrigerator Screw
20OPTIONAL PARTS NOT ILLUSTRATED
