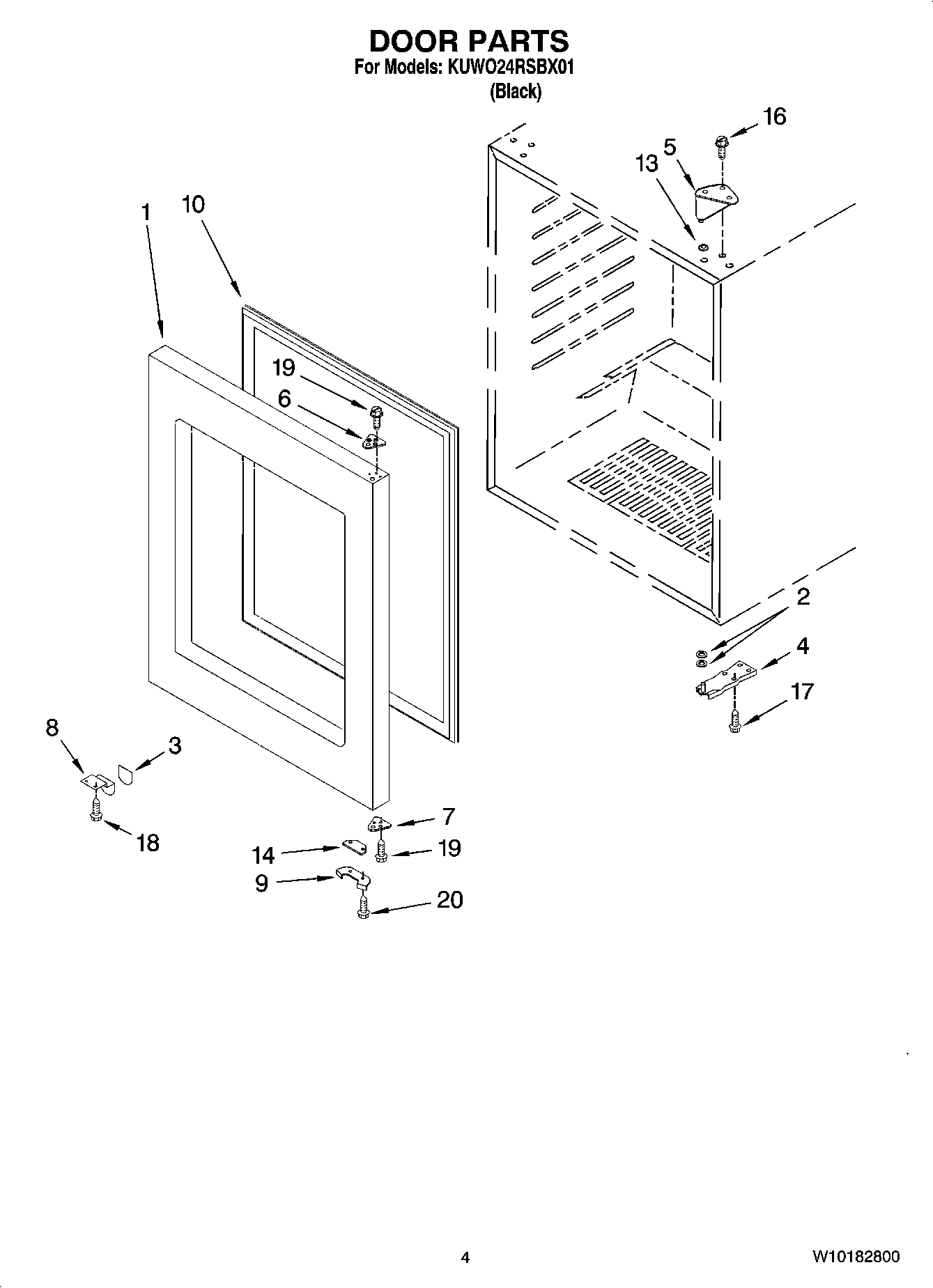

KUWO24RSBX01 03 – DOOR PARTS

Products

Position	Product
	OPTIONAL PARTS NOT ILLUSTRATED
	Installation Kit, Door Panel
1	Door Assembly (Includes Gasket)
2	W11241702 Whirlpool Refrigerator Washer
3	GASKET-PUSH PLATE
4	W10239363 Whirlpool Refrigerator Door Hinge
5	4344754 Whirlpool Refrigerator Door Hinge
6	4344804 Whirlpool Spacer
7	4344798 Whirlpool Spacer
8	4344757 Whirlpool Refrigerator Bracket
9	4344802 Whirlpool Bracket Assembly
10	WPW10238068 Whirlpool Refrigerator Gasket
13	4344760 Whirlpool Refrigerator Washer
14	4344803 Whirlpool Spacer
16	4344796 Whirlpool Refrigerator Screw
17	Screw, Lower Hinge (Quantity 1)
17	4344797 Whirlpool Screw
18	SCREW
19	Screw
20	4344801 Whirlpool Refrigerator Screw
