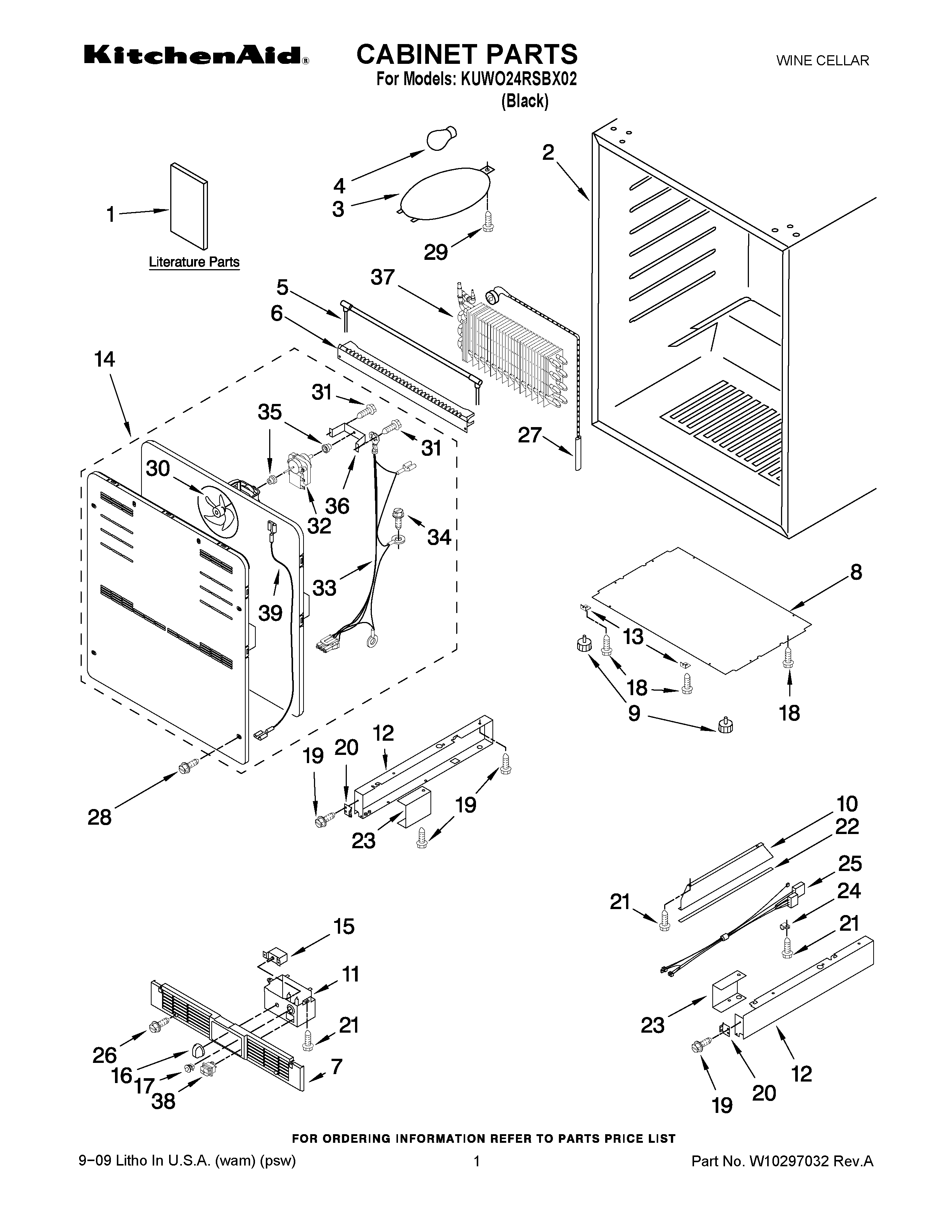

KUWO24RSBX02 01 – CABINET PARTSadmin2025-04-26T09:35:15+00:00KUWO24RSBX02 01 – CABINET PARTS ProductsPositionProduct1Wiring Diagram1Use & Care Guide3Lens, Light4WP22002263 Whirlpool Dryer 10W Light Bulb5W11230119 Whirlpool Refrigerator Heater64344747 Whirlpool Refrigerator Shield7Grille8Plate, Bottom9W11106296 Whirlpool Refrigerator Leveler10Brace, Support11Control Box124344770 Whirlpool Refrigerator Support12Frame, Side (Left Side)134344771 Whirlpool Refrigerator Clip14W10299347 Whirlpool Refrigerator Evaporator Motor15WP4344859 Whirlpool Refrigerator Thermostat16WP3402573 Whirlpool Appliance Knob17WP4344767 Whirlpool Refrigerator Switch19Screw20Clip, Grille21SCREW224344823 Whirlpool Refrigerator Seal234344821 Whirlpool Refrigerator Support234344820 Whirlpool Refrigerator Support24W11456069 Whirlpool Refrigerator Clamp254344857 Whirlpool Refrigerator Wire Harness264344826 Whirlpool Refrigerator Screw274344792 Whirlpool Refrigerator Bi-Metal284344793 Whirlpool Screw29Screw30W10315091 Whirlpool Refrigerator Evaporator Motor31Screw334344877 Whirlpool Refrigerator Wire Harness34W11380570 Whirlpool Microwave Screw35Grommet, Fan Motor364344899 Whirlpool Refrigerator Bracket37CABINET (NOT A SERVICEABLE PART)384344858 Whirlpool Refrigerator Switch39Transformer Cable
