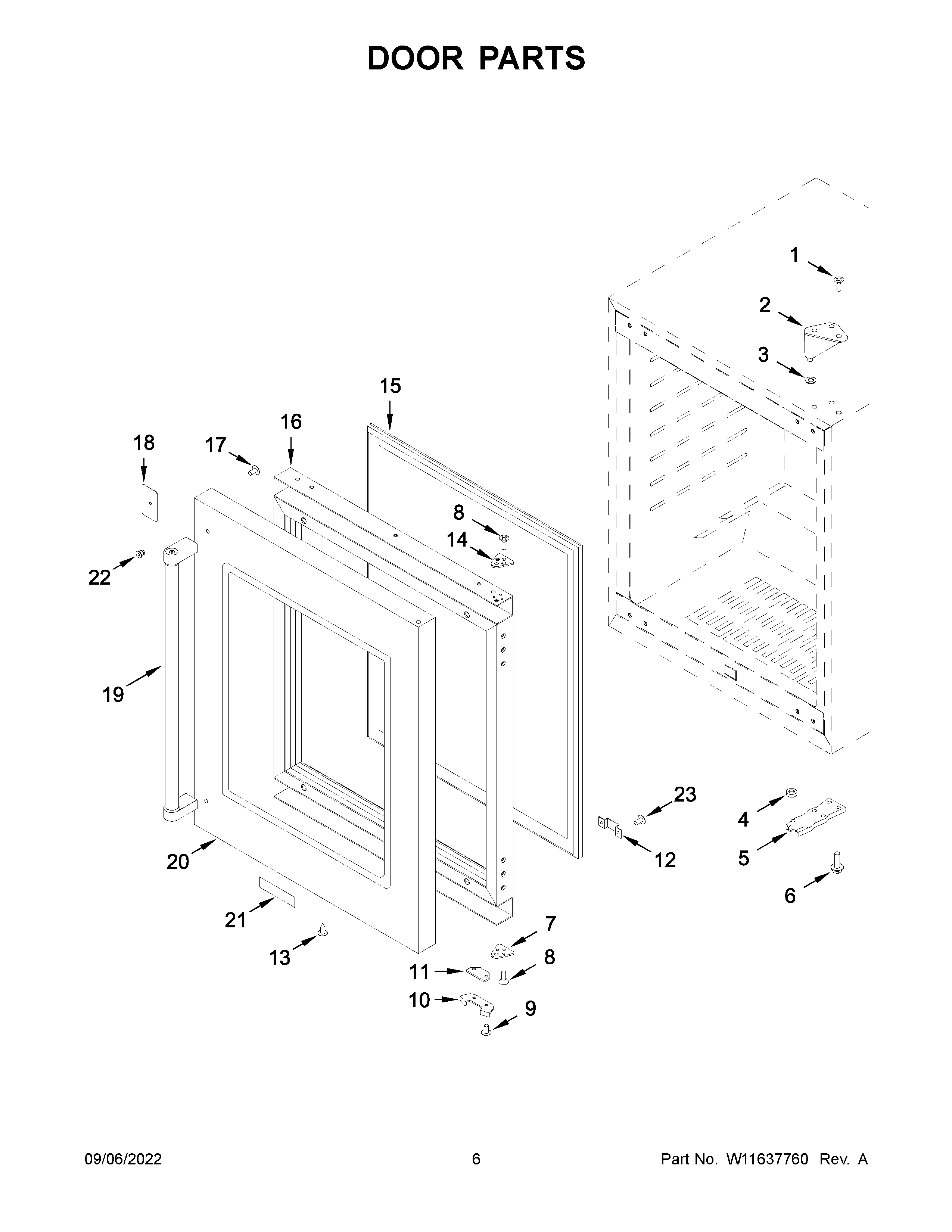

KUWR204ESB01 04 – DOOR PARTS

Products

Position	Product
1	4344796 Whirlpool Refrigerator Screw
2	4344754 Whirlpool Refrigerator Door Hinge
3	4344760 Whirlpool Refrigerator Washer
4	W11241702 Whirlpool Refrigerator Washer
5A	W10239363 Whirlpool Refrigerator Door Hinge
5	4344787 Whirlpool Refrigerator Door Hinge
6	W10780355 Whirlpool Refrigerator Screw
7	4344756 Whirlpool Refrigerator Spacer
8	W10243123 Whirlpool Refrigerator Screw
9	4344801 Whirlpool Refrigerator Screw
10	4344758 Whirlpool Refrigerator Bracket
11	4344788 Whirlpool Refrigerator Spacer
12	SWITCH PLATE
13	SCREW
14	4344755 Whirlpool Refrigerator Spacer
15	WPW10624183 Whirlpool Refrigerator Gasket
16	DOOR ASSEMBLY (BLACK STAINLESS (RIGHT HINGE))
16A	DOOR ASSEMBLY (BLACK STAINLESS (LEFT HINGE))
17	W10859467 Whirlpool Refrigerator Screw
18	W11263339 Whirlpool Refrigerator Plate
19	HANDLE, DOOR (STAINLESS)
20A	BLACK STAINLESS WRAP (LEFT HAND)
20	BLACK STAINLESS WRAP (RIGHT HAND)
21	W11179312 Whirlpool Refrigerator Nameplate
22	W11179356 Whirlpool Refrigerator Stud Handle
23	W10319187 Whirlpool Refrigerator Screw
