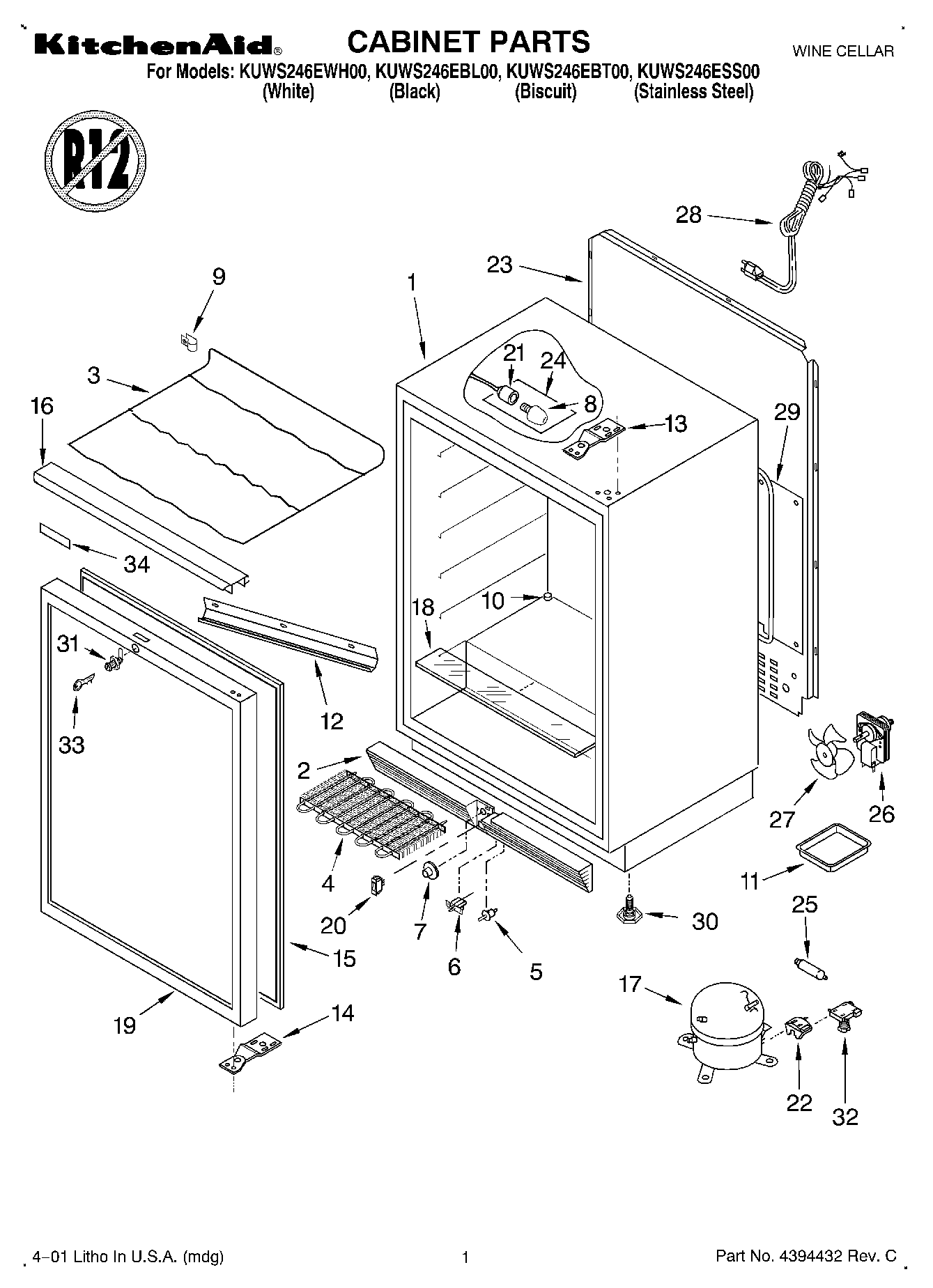

KUWS246ESS00 01 – SECTION

Products

Position	Product
	WPL LIT4344601
	WPL LIT4344600
1	Cabinet (Not A Serviceable Part)
2	Grille (White)
2	Grille (Black)
2	Grille (Biscuit)
3	Wine Shelf (White)
3	Wine Shelf (Chrome)
4	Condenser
5	Switch, Door
6	THERMOSTAT-REFRIGERATOR
7	Knob, Thermostat
8	WP22002263 Whirlpool Dryer 10W Light Bulb
9	Shelf Clip
10	Drain Cup
11	Drain Pan
12	Drain Trough
13	Hinge, Top (Black)
13	Hinge, Top (White)
13	Hinge, Top (Stainless)
13	Hinge, Top (Biscuit)
14	Hinge, Bottom (White)
14	Hinge, Bottom (Stainless)
14	Hinge, Bottom (Biscuit)
14	Hinge, Bottom (Black)
15	Door Gasket (Grey)
15	Door Gasket (White)
16	Door Handle (Biscuit)
16	Door Handle (Stainless)
16	Door Handle (White)
16	Door Handle (Black)
17	Compressor (Includes Items 22, 25 & 32)
18	Glass Shelf, Half
19	Door Assembly (Includes Items 15, 16 & 31) (White)
19	Door Assembly (Includes Items 15, 16 & 31) (Black)
19	Door Assembly (Includes Items 15, 16 & 31) (Biscuit)
19	Door Assembly (Includes Items 15, 16 & 31) (Stainless)
20	Switch, Light
21	Light Socket
22	Overload
23	Back Panel
24	Light Cover
25	Drier
26	Fan Motor
27	Blade, Fan Motor
28	Power Cord
29	Evaporator And Heat Exchanger
30	Foot, Leveling (4)
31	Lock (Includes Key)
32	Relay
33	Key
34	Nameplate (White an
34	WPL 2205369
