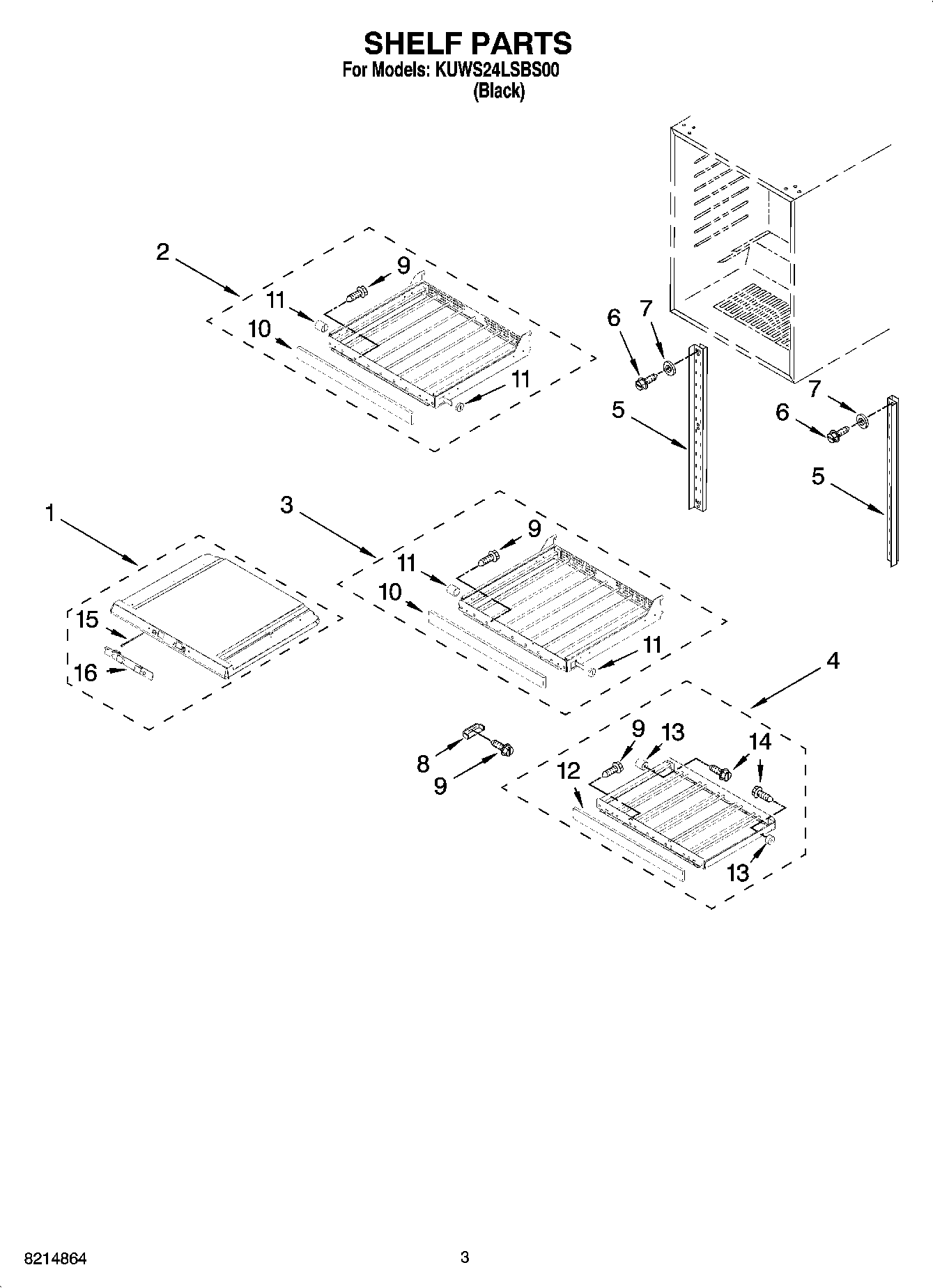

KUWS24LSBS00 02 – SHELF PARTS

Products

PositionProduct
1W10297314 Whirlpool Refrigerator Separator
2Wine Rack, (4)
3Wine Rack, (1)
4Wine Rack, Lower
5Ladder, Shelf (Left Side)
5Ladder, Shelf (Right Side)
6Screw
7Washer
8Stop, Lower Rack
9Screw
10Trim, Top And Middle Racks
11Support (Left)
11Support (Right)
12Trim, Lower Rack
13Support, Bumper (Left)
134344886 Whirlpool Support
14Screw (Right)
14Screw (Left)
15Transformer Cable
164344894 Whirlpool Refrigerator Display
