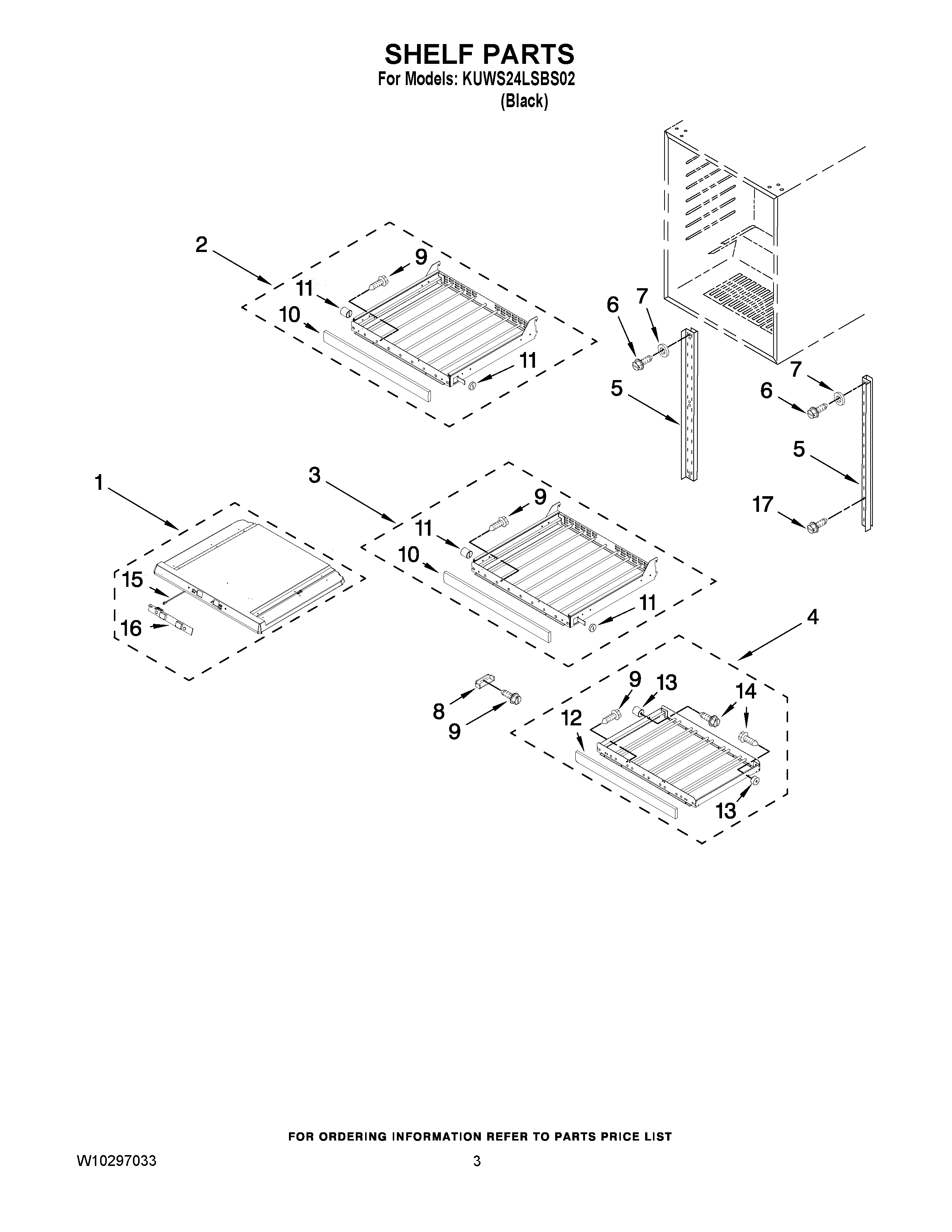

KUWS24LSBS02 02 – SHELF PARTS

Products

Position	Product
1	W10297314 Whirlpool Refrigerator Separator
2	Wine Rack, (4)
3	Wine Rack, (1)
4	Wine Rack, Lower
5	Ladder, Shelf (Left Side)
5	Ladder, Shelf (Right Side)
6	Screw
7	Washer
8	Stop, Lower Rack
9	Screw
10	Trim, Top And Middle Racks
11	Support (Right)
11	Support (Left)
12	Trim, Lower Rack
13	Support, Bumper (Left)
13	4344886 Whirlpool Support
14	Screw (Right)
14	Screw (Left)
15	W10238024 Whirlpool Wire
16	W10282164 Whirlpool Refrigerator Display
17	SCREW W/WASHER
