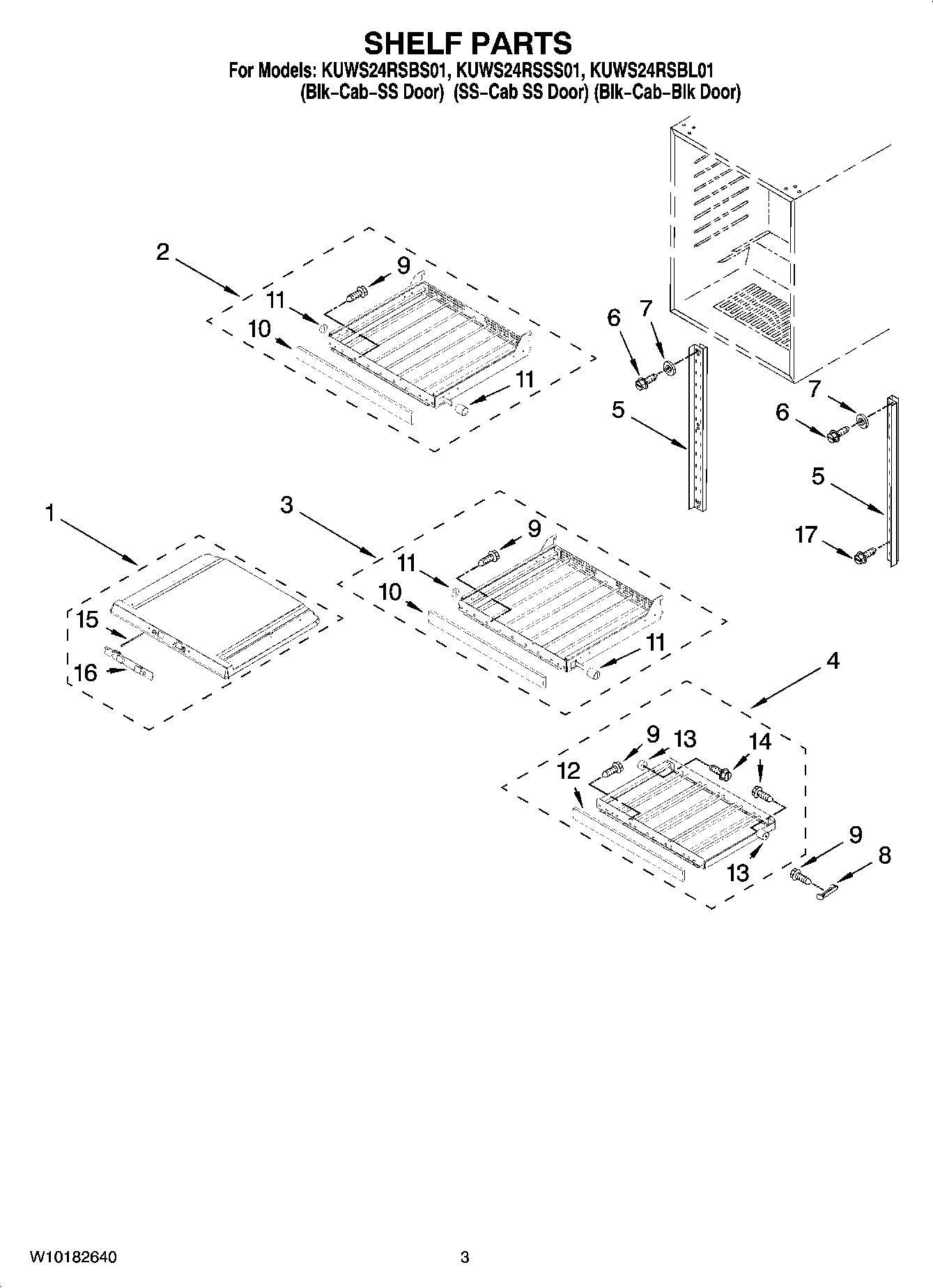

KUWS24RSBL01 02 – SHELF PARTS

Products

Position	Product
1	WPW10297313 Whirlpool Refrigerator Separator
2	Wine Rack, (4)
3	Wine Rack, (1)
4	Wine Rack, Lower
5	Ladder, Shelf (Right Side)
5	Ladder, Shelf (Left Side)
6	Screw
7	Washer
8	Stop, Lower Rack
9	Screw
10	Trim, Top And Middle Racks
11	Support (Right)
11	Support (Left)
12	Trim, Lower Rack
13	Support, Bumper (Left)
13	4344886 Whirlpool Support
14	Screw (Left)
14	Screw (Right)
15	Transformer Cable
16	4344894 Whirlpool Refrigerator Display
17	SCREW W/WASHER
