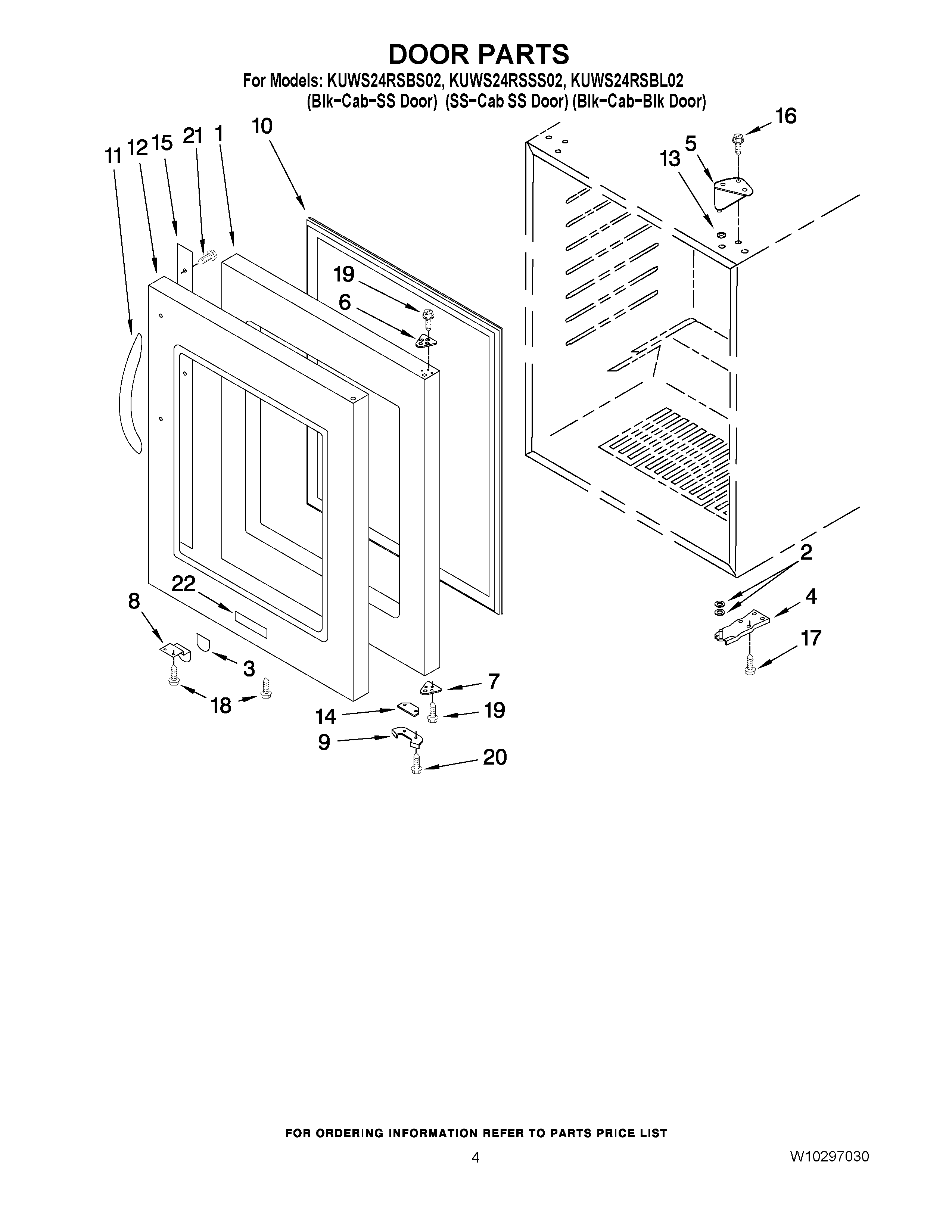

KUWS24RSBL02 03 – DOOR PARTS

Products

Position	Product
NI	CLEANER, STAINLESS STEEL (12 OZ)
1	Door Assembly (Includes Gasket)
2	W11241702 Whirlpool Refrigerator Washer
3	GASKET-PUSH PLATE
4	W10239363 Whirlpool Refrigerator Door Hinge
4	HINGE BOTTOM (BLACK DOOR)
5	4344754 Whirlpool Refrigerator Door Hinge
5	HINGE, TOP (BLACK DOOR)
6	4344755 Whirlpool Refrigerator Spacer
7	4344756 Whirlpool Refrigerator Spacer
8	4344757 Whirlpool Refrigerator Bracket
9	Door Stop (Black)
9	4344758 Whirlpool Refrigerator Bracket
10	WPW10238068 Whirlpool Refrigerator Gasket
11	WP9872207S Whirlpool Refrigerator Handle
11	Handle, Door (Black)
12	Door Skin, Stainless Steel
12	Door Skin (Black)
13	4344760 Whirlpool Refrigerator Washer
14	4344788 Whirlpool Refrigerator Spacer
15	Plate
16	SCREW
16	4344796 Whirlpool Refrigerator Screw
17	Screw
17	Screw, Lower Hinge (Quantity 1)
18	W10837731 Whirlpool Screw Assembly
19	W10243123 Whirlpool Refrigerator Screw
20	4344801 Whirlpool Refrigerator Screw
21	SCREW, HANDLE
22	NAMEPLATE
22	NAMEPLATE (BLACK DOOR)
