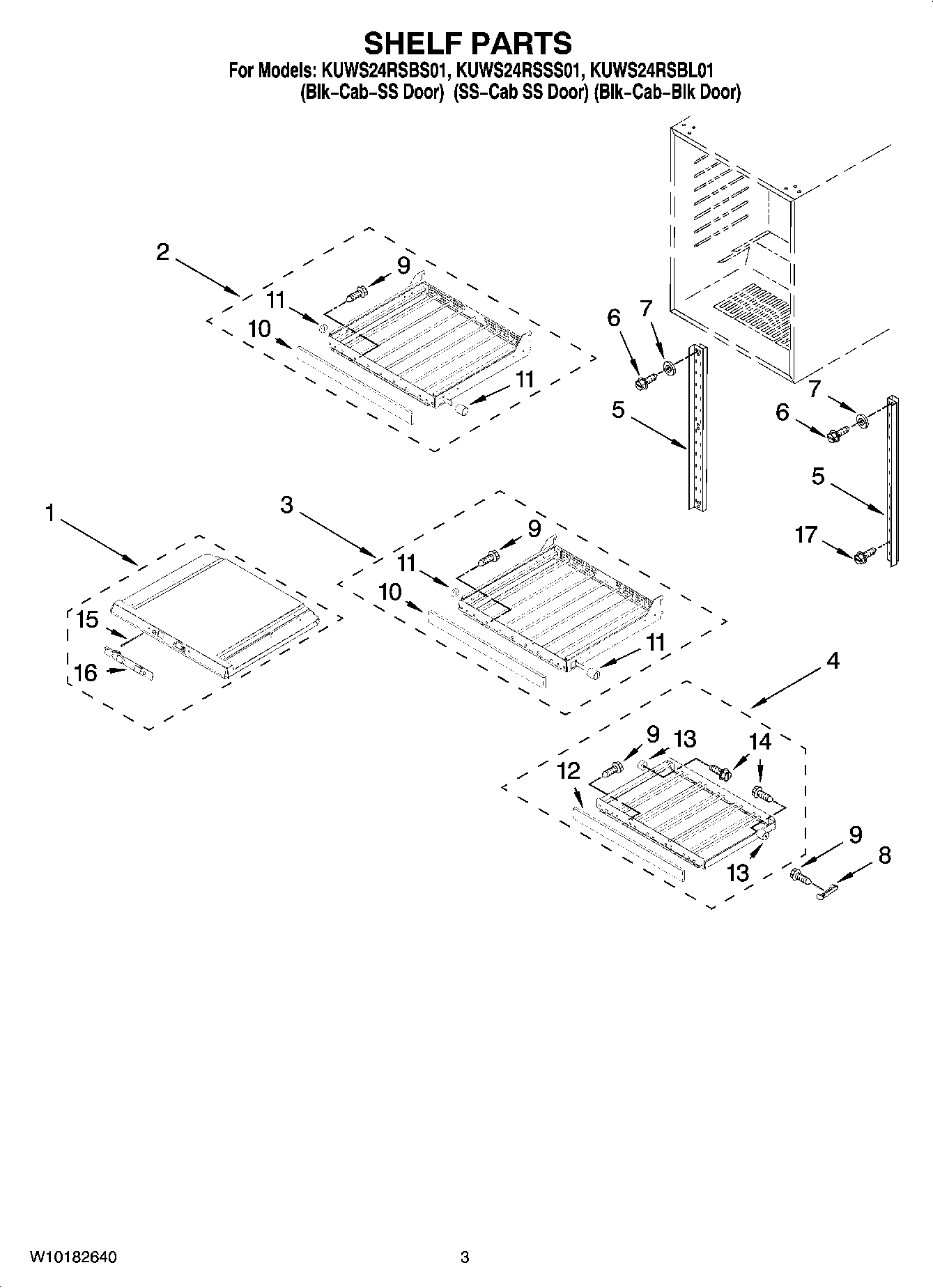

KUWS24RSBS01 02 – SHELF PARTS

KUWS24RSBS01 02 – SHELF PARTS

Written by

in

KUWS24RSBS01 02 – SHELF PARTS

Products

PositionProduct
1WPW10297313 Whirlpool Refrigerator Separator
2Wine Rack, (4)
3Wine Rack, (1)
4Wine Rack, Lower
5Ladder, Shelf (Right Side)
5Ladder, Shelf (Left Side)
6Screw
7Washer
8Stop, Lower Rack
9Screw
10Trim, Top And Middle Racks
11Support (Right)
11Support (Left)
12Trim, Lower Rack
13Support, Bumper (Left)
134344886 Whirlpool Support
14Screw (Left)
14Screw (Right)
15Transformer Cable
164344894 Whirlpool Refrigerator Display
17SCREW W/WASHER
