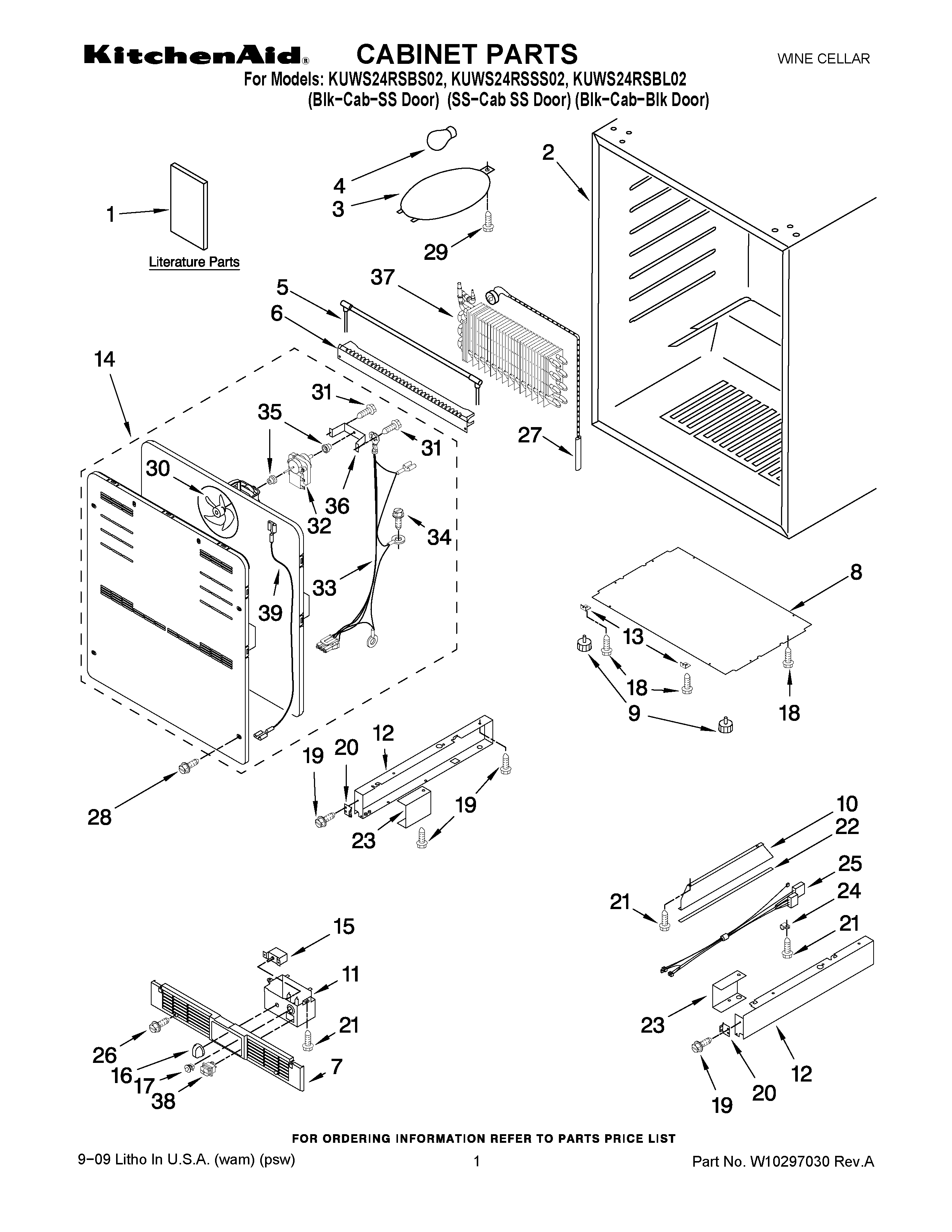

KUWS24RSSS02 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
3	Lens, Light
4	WP22002263 Whirlpool Dryer 10W Light Bulb
5	W11230119 Whirlpool Refrigerator Heater
6	4344747 Whirlpool Refrigerator Shield
7	Grille
8	Plate, Bottom
9	W11106296 Whirlpool Refrigerator Leveler
10	Brace, Support
11	Control Box
12	4344770 Whirlpool Refrigerator Support
12	Frame, Side (Left Side)
13	4344771 Whirlpool Refrigerator Clip
14	W10299347 Whirlpool Refrigerator Evaporator Motor
15	WP4344859 Whirlpool Refrigerator Thermostat
16	WP3402573 Whirlpool Appliance Knob
17	WP4344767 Whirlpool Refrigerator Switch
19	Screw
20	Clip, Grille
21	SCREW
22	4344823 Whirlpool Refrigerator Seal
23	4344821 Whirlpool Refrigerator Support
23	4344820 Whirlpool Refrigerator Support
24	W11456069 Whirlpool Refrigerator Clamp
25	4344857 Whirlpool Refrigerator Wire Harness
26	4344826 Whirlpool Refrigerator Screw
27	4344792 Whirlpool Refrigerator Bi-Metal
28	4344793 Whirlpool Screw
29	Screw
30	W10315091 Whirlpool Refrigerator Evaporator Motor
31	Screw
33	4344877 Whirlpool Refrigerator Wire Harness
34	W11380570 Whirlpool Microwave Screw
35	Grommet, Fan Motor
36	4344899 Whirlpool Refrigerator Bracket
37	CABINET (NOT A SERVICEABLE PART)
38	4344858 Whirlpool Refrigerator Switch
39	Transformer Cable
