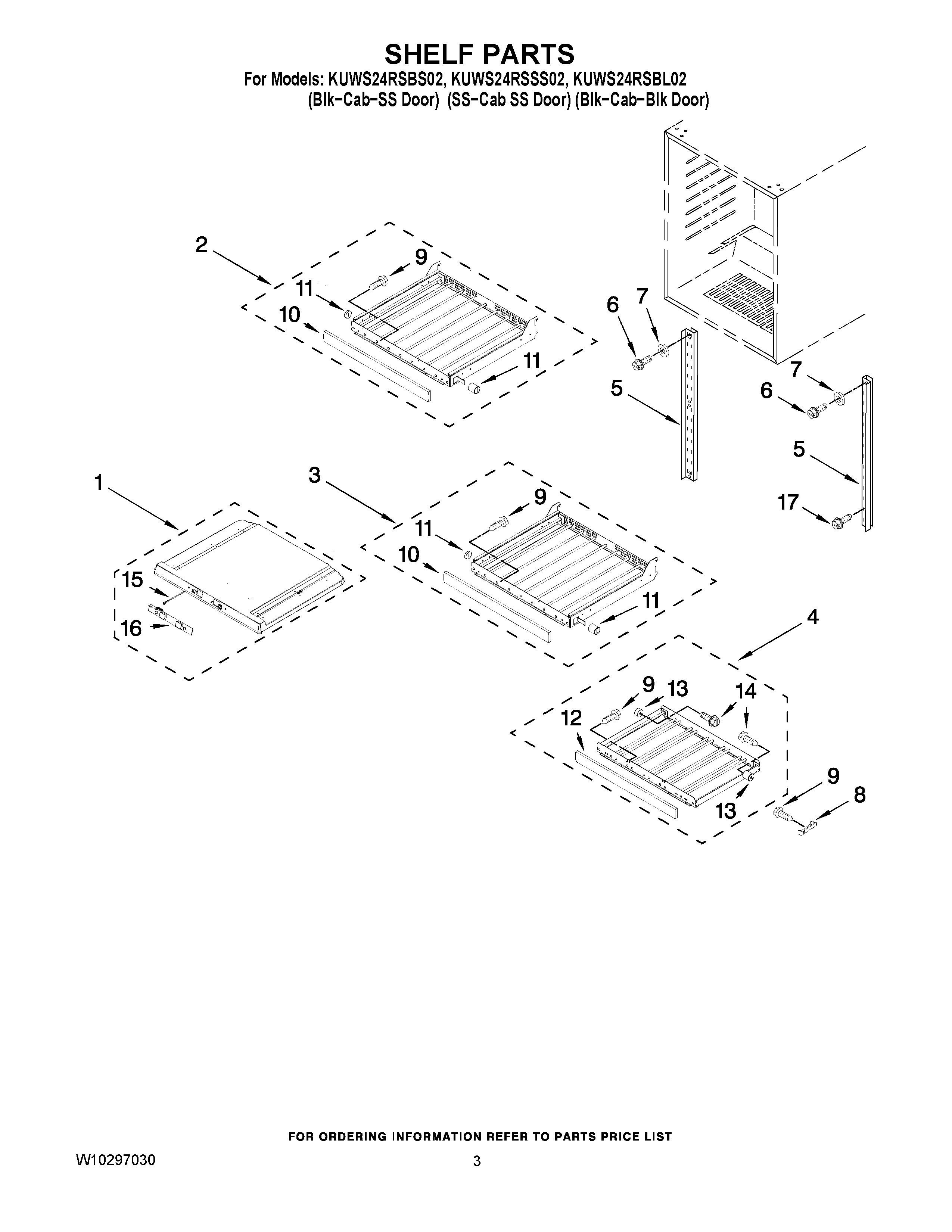

KUWS24RSSS02 02 – SHELF PARTS

Products

PositionProduct
1WPW10297313 Whirlpool Refrigerator Separator
2Wine Rack, (4)
3Wine Rack, (1)
4Wine Rack, Lower
5Ladder, Shelf (Left Side)
5Ladder, Shelf (Right Side)
6Screw
7Washer
8Stop, Lower Rack
9Screw
10Trim, Top And Middle Racks
11Support (Right)
11Support (Left)
12Trim, Lower Rack
13Support, Bumper (Left)
134344886 Whirlpool Support
14Screw (Right)
14Screw (Left)
15W10238024 Whirlpool Wire
16W10282164 Whirlpool Refrigerator Display
17SCREW W/WASHER
