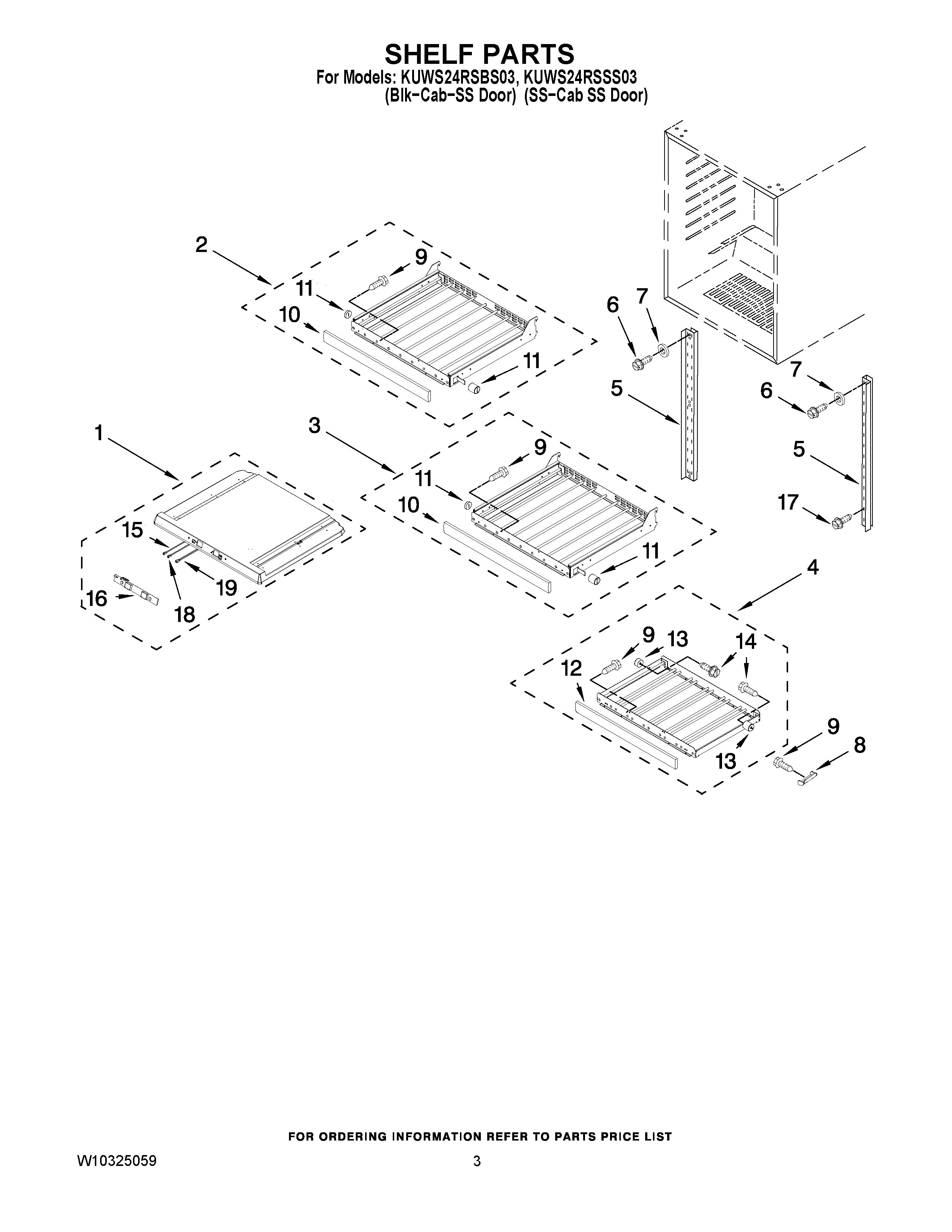

KUWS24RSSS03 02 – SHELF PARTSadmin2025-04-26T09:38:38+00:00KUWS24RSSS03 02 – SHELF PARTS
Products
| Position | Product |
|---|
| NI | LED Spacer |
| NI | Support |
| NI | SEAL |
| NI | Support Spacer |
| NI | OVERLAY, DISPLAY |
| NI | SCREW |
| 1 | WPW10297313 Whirlpool Refrigerator Separator |
| 2 | Wine Rack, (4) |
| 3 | Wine Rack, (1) |
| 4 | Wine Rack, Lower |
| 5 | LADDER, SHELF (LEFT SIDE) |
| 5 | LADDER, SHELF (RIGHT SIDE) |
| 6 | Screw |
| 7 | Washer |
| 8 | Stop, Lower Rack |
| 9 | Screw |
| 10 | TRIM, TOP AND MIDDLE RACKS |
| 11 | Support (Left) |
| 11 | Support (Right) |
| 12 | TRIM, LOWER RACK |
| 13 | 4344886 Whirlpool Support |
| 13 | Support, Bumper (Left) |
| 14 | Screw (Right) |
| 14 | Screw (Left) |
| 15 | W10238024 Whirlpool Wire |
| 16 | W10282164 Whirlpool Refrigerator Display |
| 17 | SCREW W/WASHER |
| 18 | W10238025 Whirlpool Refrigerator Sensor |
| 19 | W10238026 Whirlpool Refrigerator Sensor |
