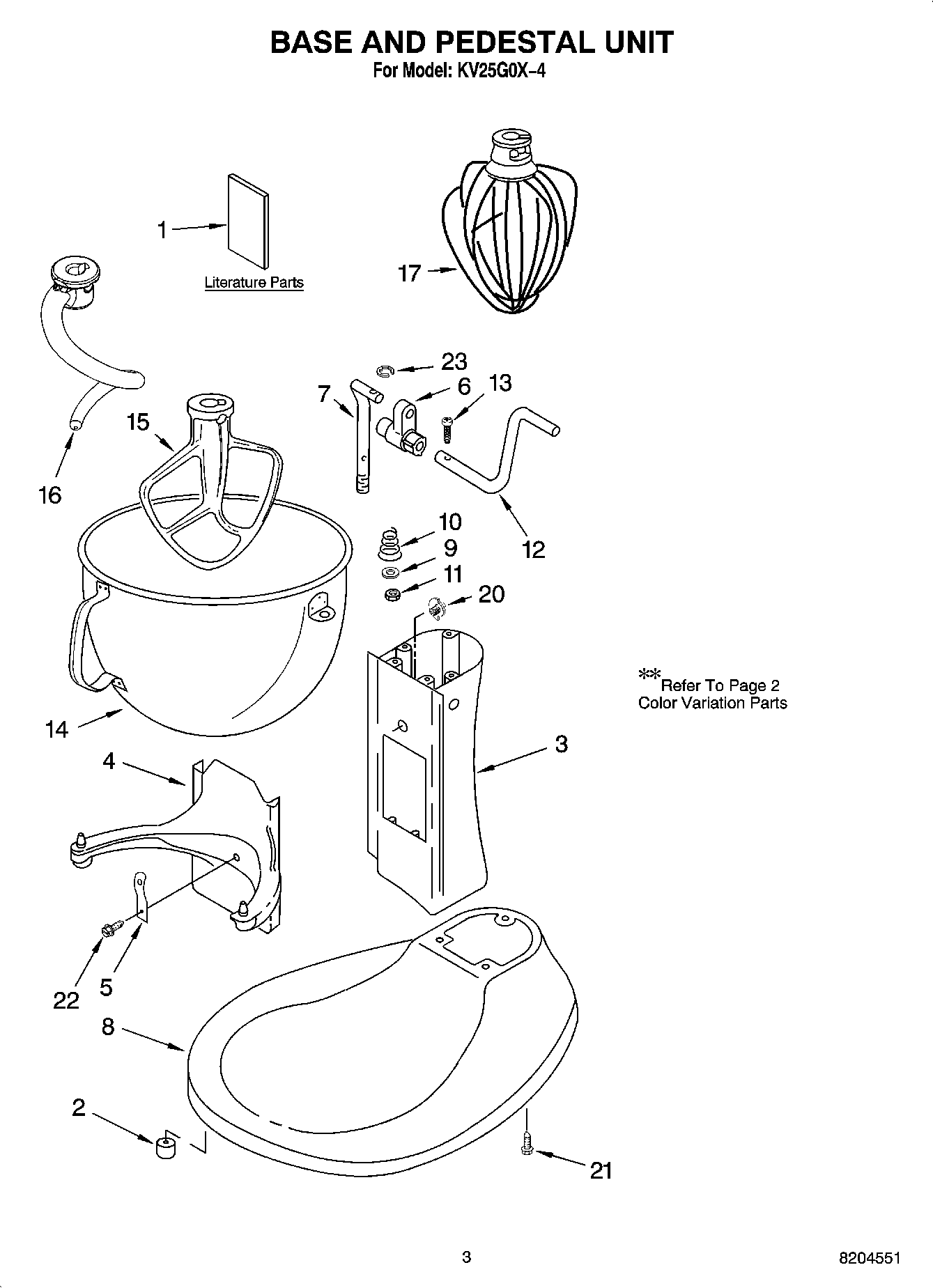

KV25G0X-4 02 – BASE AND PEDESTAL UNIT

KV25G0X-4 02 – BASE AND PEDESTAL UNIT

Written by

in

KV25G0X-4 02 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Use & Care Guide)
28211628 Whirlpool Foot Assembly
3Column Assembly
4Bowl Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
8Base And Foot Supports
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP3400814 Whirlpool Screw
14WPW10717235 Whirlpool Mixer Bowl
15WPW10672616 Whirlpool Mixer Beater
16W10908278 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
