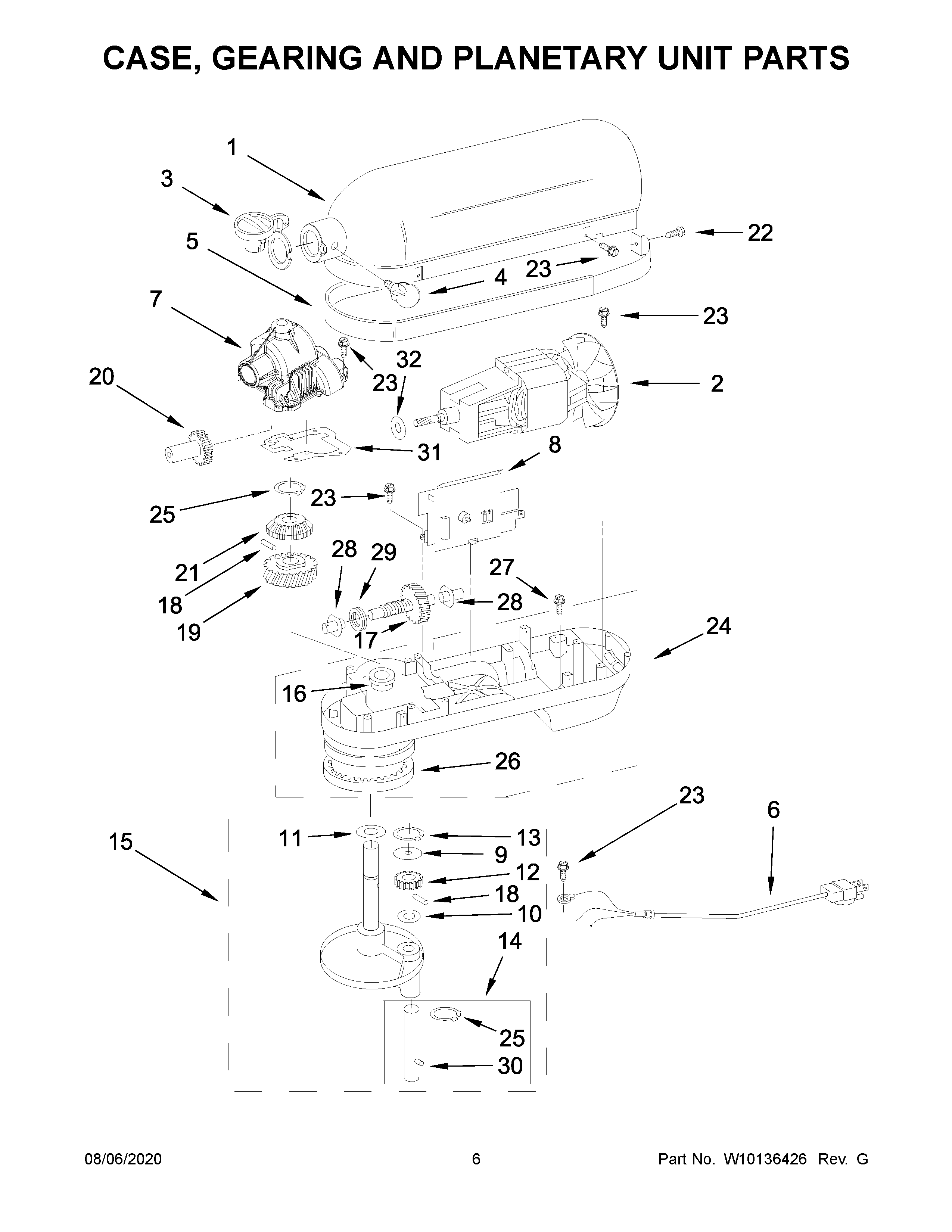

KV25G0XCU5 04 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	WPW10247536 Whirlpool Motor
3	WP9703315 Whirlpool Hub Cap
4	WP9709196 Whirlpool Screw
4A	WP9709194 Whirlpool Black Thumb Screw
6A	W11728151 Whirlpool Power Cord
6	W11359748 Whirlpool Power Cord
7	8212396 Whirlpool Housing
8	WP9706648 Whirlpool Speed Control
9	W10854966 Whirlpool Washer
10	WP9706090 Whirlpool Washer
11	W11084660 Whirlpool Washer
12	W11133646 Whirlpool Gear
13	WP9703438 Whirlpool Snap Retaining Ring
14	WP9708191 Whirlpool Agitator Shaft
16	WP16897 Whirlpool Bearing
17	WP9709231 Whirlpool Gear Assembly
18	WP9707223 Whirlpool Dowel Pin
19	GEAR
21	W11192795 Whirlpool Gear
22	W10853069 Whirlpool Screw
23	WP3400814 Whirlpool Screw
24	CABINET (NOT A SERVICEABLE PART)
25	WP9703680 Whirlpool Retainer Ring
26	W11181966 Whirlpool Gear
27	W10913677 Whirlpool Screw
28A	WPW10170081 Whirlpool Bearing
28	WPW10170080 Whirlpool Bearing Assembly
29	WP9703445 Whirlpool Bearing Kit Thrust
30	W11664709 Whirlpool Groove Pin
31	WP9709511 Whirlpool Microwave High Voltage Transformer
32	WP9706247 Whirlpool Seal
