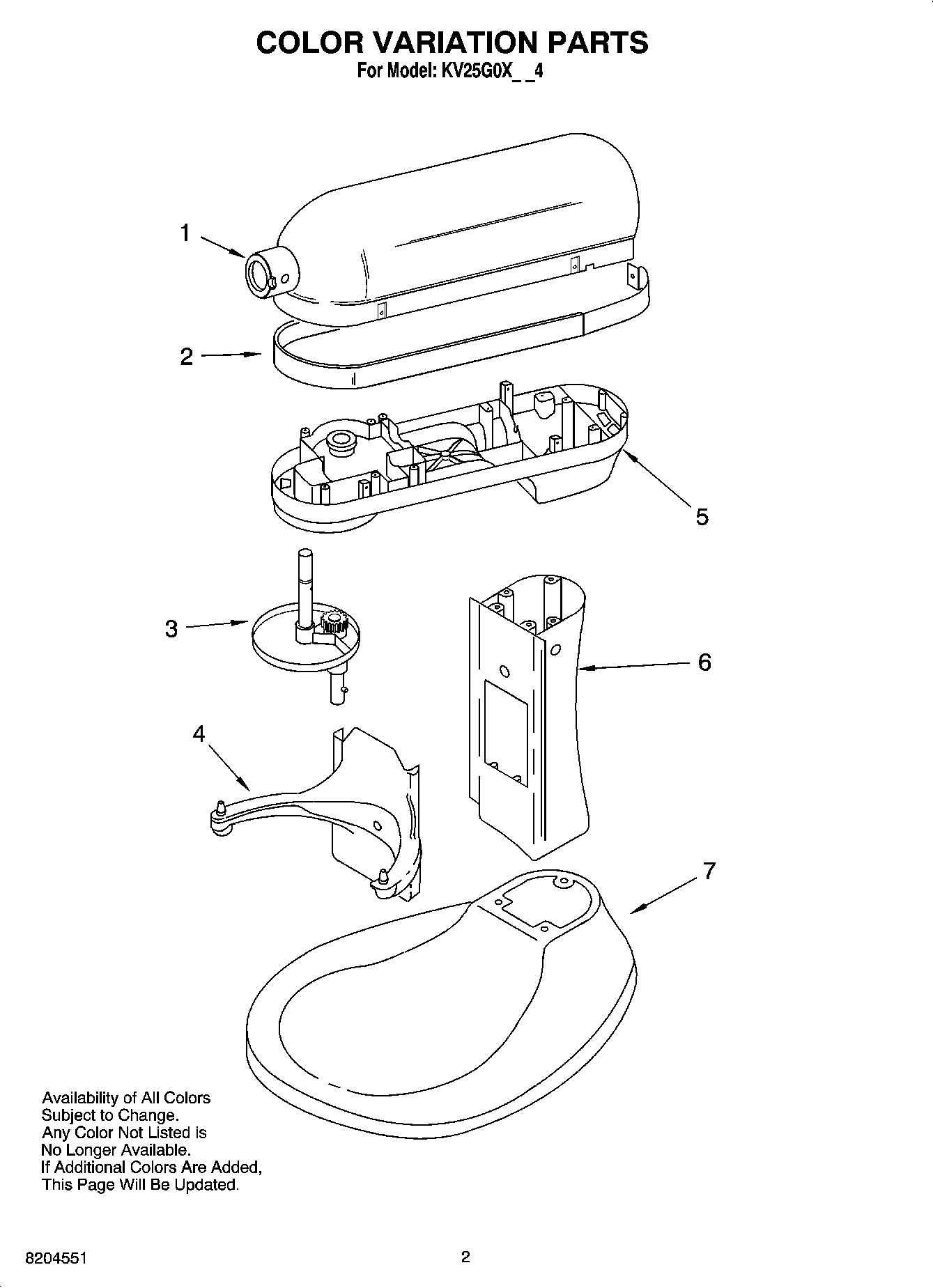

KV25G0XCV4 01 – COLOR VARIATION PARTS

KV25G0XCV4 01 – COLOR VARIATION PARTS

Written by

in

KV25G0XCV4 01 – COLOR VARIATION PARTS

Products

PositionProduct
19705300 Whirlpool Housing Assembly
1Motor Housing (Cobalt Blue)
1Motor Housing (Imperial Grey)
1W10114555 Whirlpool Housing
19705296 Whirlpool Housing
19703433 Whirlpool Housing
19703311 Whirlpool Housing Assembly
1MOTOR HOUSING (BING CHERRY)
1MOTOR HOUSING (BLUE WILLOW)
1MOTOR HOUSING (CAVIAR)
2Trim Band (Grey)
2Trim Band (Black)
2W11171098 Whirlpool Trim Band
3PLANETARY (CAVIAR)
3PLANETARY (BING CHERRY)
3PLANETARY (BLUE WILLOW)
3Planetary (Cobalt Blue)
3WP9708180 Whirlpool Planetary Gear
3WP9708176 Whirlpool Planetary Mixer
3WP9708173 Whirlpool Planetary Gear
3WP9708172 Whirlpool Planetary Assembly
3W10114559 Whirlpool Planetary Assembly
3WP9708175 Whirlpool Planetary Gear
4WPL W10114566
4WPL 9705682
4WPL 9708824
4WPL W10114585
4BOWL SUPPORT-Cobalt blue
49705360 Whirlpool Support Assembly
49705356 Whirlpool Support
49703397 Whirlpool Support
49703519 Whirlpool Support
49703674 Whirlpool Support
5Lower Gearcase (Imperial Grey)
5WPL W10114581
59706311 Whirlpool Gearcase
5WPL 9708820
59706331 Whirlpool Gearcase
5WPL 9706346
5WP9706047 Whirlpool Gearcase
5Lower Gearcase (Cobalt Blue)
5Lower Gearcase (Metallic Chrome)
5WPL W10114562
6WPL W10114588
6WPL 9705679
69703673 Whirlpool Column
69705320 Whirlpool Column
69705324 Whirlpool Column Assembly
69705384 Whirlpool Column
6WPL W10114569
69703349 Whirlpool Column
6Column (Imperial Grey)
6WPL 9708827
79705348 Whirlpool Base
7Base And Foot Assembly (Imperial Grey)
7Base And Foot Assembly (C
79705344 Whirlpool Base
7WPL W10114591
7WPL 9708830
7WPL 9705676
79703690 Whirlpool Base
79703346 Whirlpool Base
7WPL W10114572
