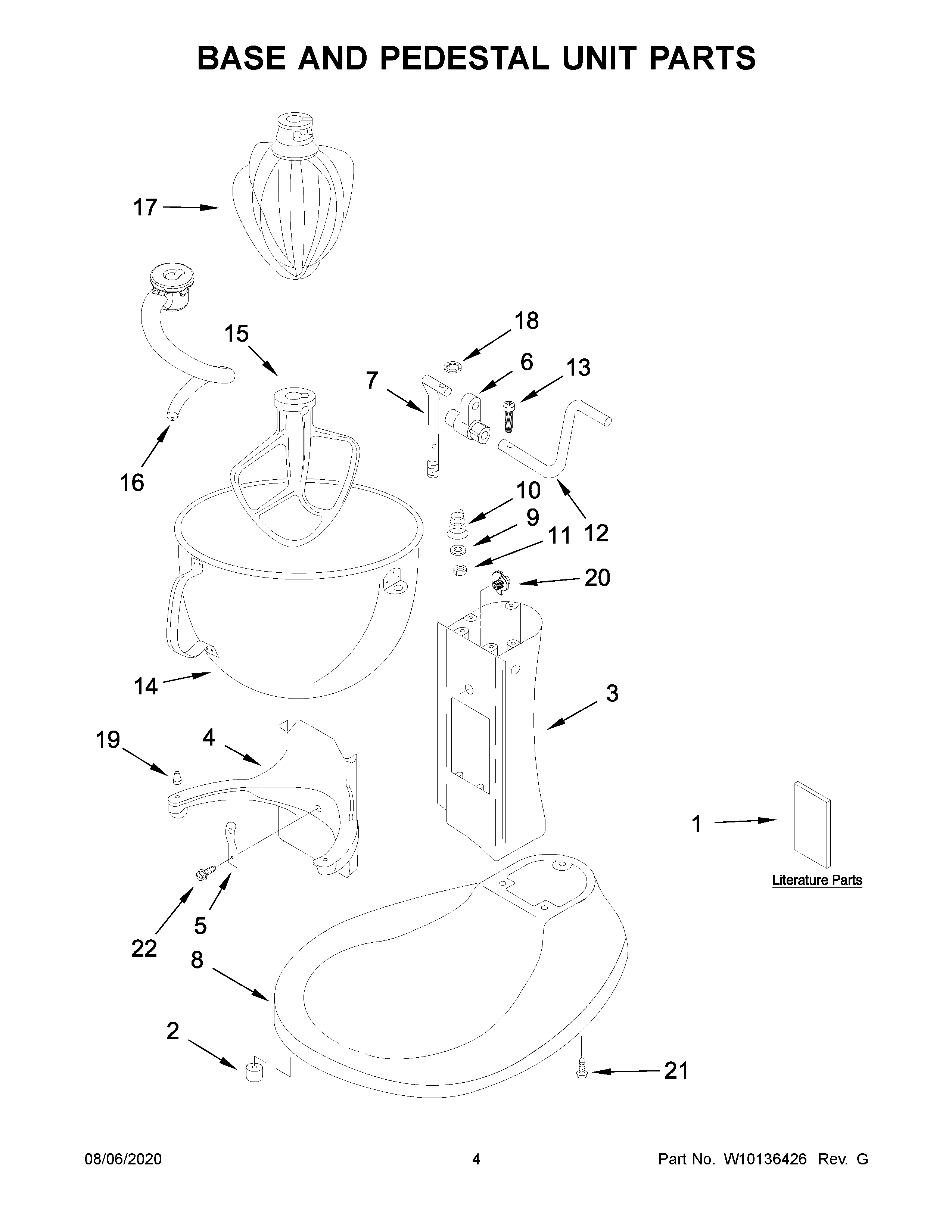

KV25G0XCY5 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	WP9708649 Whirlpool Foot
5	WPW10504114 Whirlpool Clip
6	WP9706885 Whirlpool Lift Arm Assembly
7	W11376364 Whirlpool Lift Rod
8	CABINET (NOT A SERVICEABLE PART)
9	Washer
10	4159622 Whirlpool PP Spring
11	8533907 Whirlpool Dishwasher Nut
12	W11376371 Whirlpool Handle Assembly
13	WP3400814 Whirlpool Screw
14	WPW10717235 Whirlpool Mixer Bowl
15	WPW10672616 Whirlpool Mixer Beater
16	W10908278 Whirlpool Dough Hook
17	WP9703491 Whirlpool Wire Whip
18	WP9703307 Whirlpool Ring-C Assembly
19	WP240185 Whirlpool Bowl Retaining Pin
20	Cam, Adjusting
21	W10913677 Whirlpool Screw
22	W10861883 Whirlpool Screw
