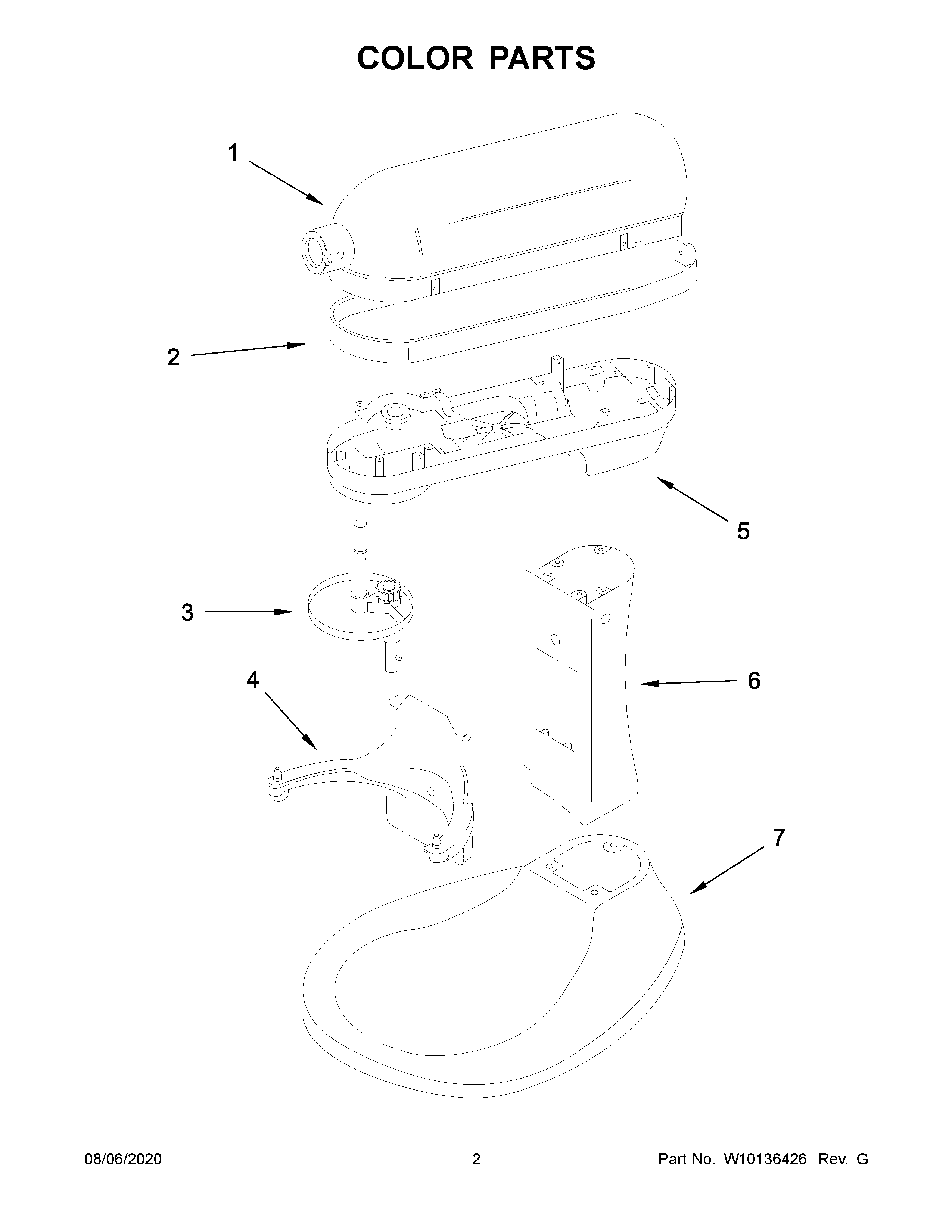

KV25G0XWH5 02 – COLOR PARTS

KV25G0XWH5 02 – COLOR PARTS

Written by

in

KV25G0XWH5 02 – COLOR PARTS

Products

PositionProduct
1DMotor Housing (Cobalt Blue)
1RMOTOR HOUSING (BLACK MATTE)
1QMOTOR HOUSING (INK BLUE)
1PW10327951 Whirlpool Housing
1OW10726426 Whirlpool Housing
1FMOTOR HOUSING (CAVIAR)
1NMOTOR HOUSING (MATTE MILKSHAKE)
1MMOTOR HOUSING (AQUA SKY)
1L9709571 Whirlpool Housing Assembly
1KMOTOR HOUSING (BUTTERCUP)
1JMOTOR HOUSING (ALMOND CREAM/CREME)
1IW10114555 Whirlpool Housing
1HMOTOR HOUSING (BLUE WILLOW)
1GMOTOR HOUSING (BING CHERRY)
1EMotor Housing (Imperial Grey)
1C9705300 Whirlpool Housing Assembly
1B9705296 Whirlpool Housing
19703311 Whirlpool Housing Assembly
1A9703433 Whirlpool Housing
2W11171098 Whirlpool Trim Band
2BTrim Band (Black)
2ATrim Band (Grey)
2CTRIM BAND (LIMITED EDITION BLACK)
3HPLANETARY (BLUE WILLOW)
3J9708178 Whirlpool Planetary
3IW10114559 Whirlpool Planetary Assembly
3RW11123171 Whirlpool Planetary Assembly
3GPLANETARY (BING CHERRY)
3QPLANETARY (INK BLUE)
3PW10327955 Whirlpool Planetary Mixer
3OW10726430 Whirlpool Planetary Mixer
3KPLANETARY (BUTTERCUP)
3FPLANETARY (CAVIAR)
3MW10577733 Whirlpool Planetary Gear
3LWP9709575 Whirlpool Planetary Mixer
3NPLANETARY (MATTE MILKSHAKE)
3EWP9708173 Whirlpool Planetary Gear
3AWP9708175 Whirlpool Planetary Gear
3WP9708172 Whirlpool Planetary Assembly
3BWP9708176 Whirlpool Planetary Mixer
3CWP9708180 Whirlpool Planetary Gear
3DPlanetary (Cobalt Blue)
4FWPL 9705682
4DBOWL SUPPORT-Cobalt blue
4C9705360 Whirlpool Support Assembly
4A9705356 Whirlpool Support
49703674 Whirlpool Support
4E9703519 Whirlpool Support
4B9703397 Whirlpool Support
4OWPL W11234531
4GWPL 9708824
4JWPL 9705358
4PWPL W10327966
4NWPL W11113728
4MWPL W10577761
4QWPL W11415365
4LW10327840 Whirlpool Support
4KWPL W10206607
4RWPL W11328664
4IWPL W10114566
4HWPL W10114585
5QWPL W11415360
5PW10327958 Whirlpool Gearcase
5OW10726433 Whirlpool Gearcase
5NW11157089 Whirlpool Gearcase
5MW10577750 Whirlpool Gearcase
5KWPL W10206603
5J9706321 Whirlpool Gearcase
5IWPL W10114562
5HWPL W10114581
5FWPL 9706346
5L9709578 Whirlpool Gearcase
5RGEARCASE
5DLower Gearcase (Cobalt Blue)
5ALower Gearcase (Metallic Chrome)
5WP9706047 Whirlpool Gearcase
5GWPL 9708820
5C9706331 Whirlpool Gearcase
5B9706311 Whirlpool Gearcase
5ELower Gearcase (Imperial Grey)
6RWPL W11123140
6HWPL W10114588
6JWPL 9705322
6IWPL W10114569
6D9705384 Whirlpool Column
6C9705324 Whirlpool Column Assembly
6B9705320 Whirlpool Column
69703673 Whirlpool Column
6QWPL W11415366
6A9703349 Whirlpool Column
6KWPL W10206610
6LWPL 9709585
6EColumn (Imperial Grey)
6FWPL 9705679
6PW10328003 Whirlpool Column Assembly
6OW10726438 Whirlpool Column Assembly
6NWPL W11113727
6GWPL 9708827
6MWPL W10577769
7B9705344 Whirlpool Base
7C9705348 Whirlpool Base
7EBase And Foot Assembly (Imperial Grey)
7DBase And Foot Assembly (C
7IWPL W10114572
7MWPL W10577773
7JWPL 9705346
7NW11113722 Whirlpool Base
7OWPL W1072644
7HWPL W10114591
7GWPL 9708830
7FWPL 9705676
7L9709588 Whirlpool Base
79703690 Whirlpool Base
7A9703346 Whirlpool Base
7KWPL W10206613
