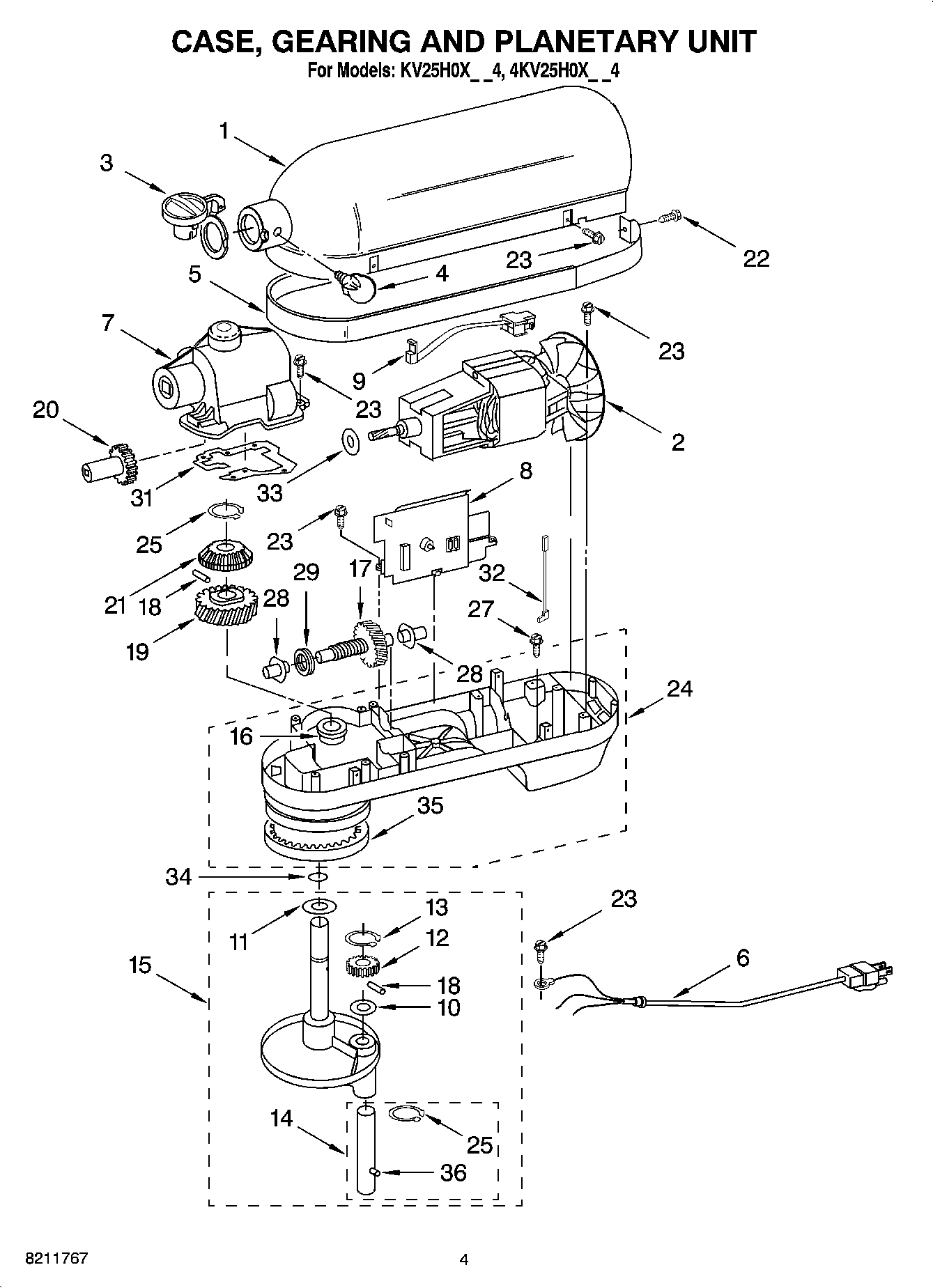

KV25H0XWH4 03 – CASE, GEARING AND PLANETARY UNIT AND ACCESSORY PARTS

Products

Position	Product
1	Gearcase Motor Housing
2	WPW10247536 Whirlpool Motor
3	WP9703315 Whirlpool Hub Cap
4	WP9709194 Whirlpool Black Thumb Screw
5	Band, Trim
6	W11728151 Whirlpool Power Cord
6	W11359748 Whirlpool Power Cord
7	8212396 Whirlpool Housing
9	WP9706648 Whirlpool Speed Control
10	WP9706090 Whirlpool Washer
11	W11084660 Whirlpool Washer
12	W11133646 Whirlpool Gear
13	WP9703438 Whirlpool Snap Retaining Ring
14	WP9708191 Whirlpool Agitator Shaft
15	Planetary Assembly
16	WP16897 Whirlpool Bearing
17	WP9709231 Whirlpool Gear Assembly
18	WP9707223 Whirlpool Dowel Pin
19	GEAR
21	W11192795 Whirlpool Gear
22	W10853069 Whirlpool Screw
23	WP3400814 Whirlpool Screw
24	Lower Gear Case
25	WP9703680 Whirlpool Retainer Ring
27	W10913677 Whirlpool Screw
28	WPW10170081 Whirlpool Bearing
28	WPW10170080 Whirlpool Bearing Assembly
29	WP9703445 Whirlpool Bearing Kit Thrust
32	9706036 Whirlpool Wire Assembly
33	WP9706247 Whirlpool Seal
34	O RING
35	W11181966 Whirlpool Gear
36	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
36	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
36	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
36	FOOD GRINDER (FG-A)
36	JUICER (JE)
36	CAN OPENER (CO)
36	Food Tray (FT)
36	W11200218 Whirlpool Grease Filter
36	Grain Mill (GM-A)
36	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
36	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
36	PASTA MAKER PLATES (SNPA)
36	SAUSAGE STUFFER KIT (SSA)
36	W11664709 Whirlpool Groove Pin
