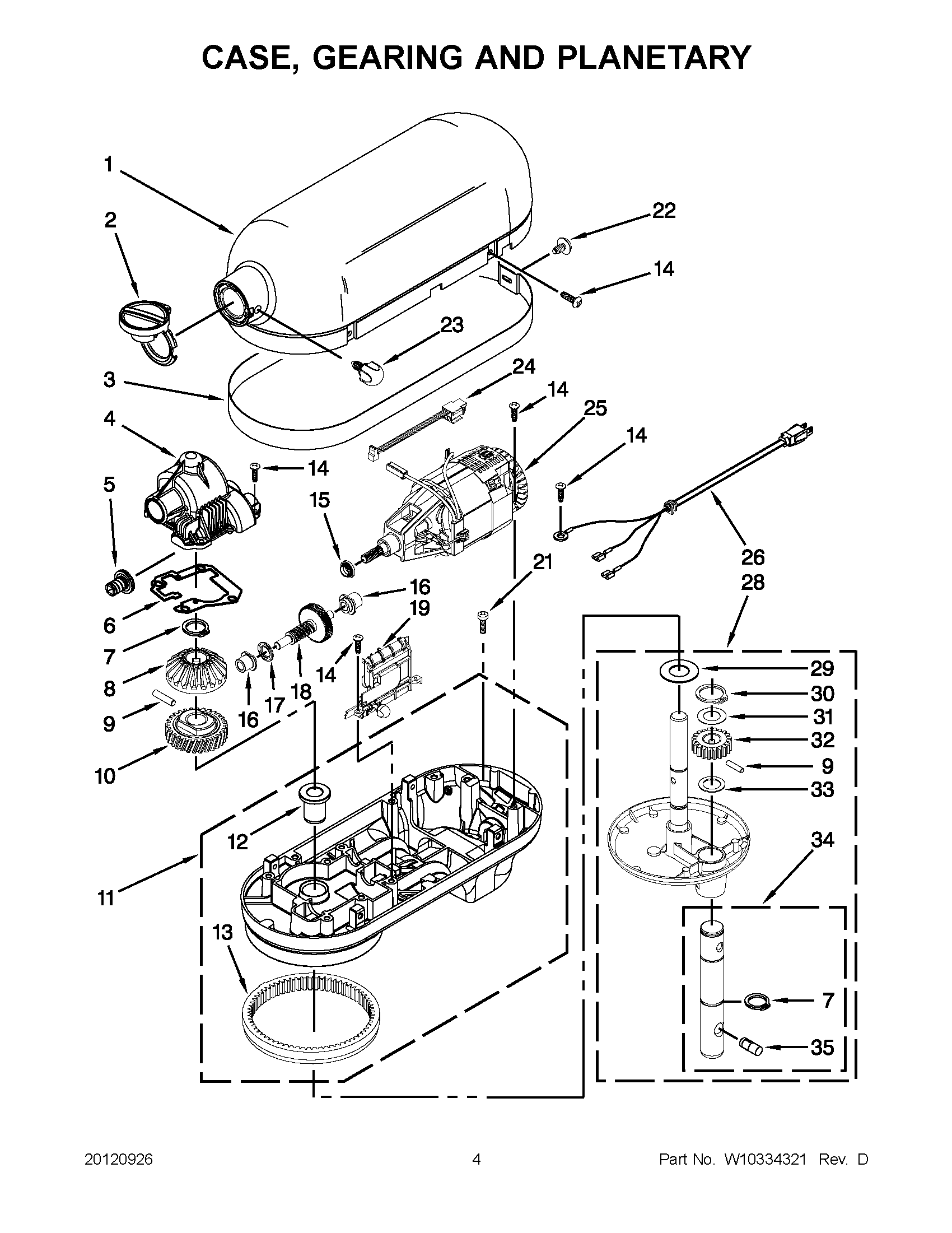

KV25MCXWH5 02 – CASE, GEARING AND PLANETARY

KV25MCXWH5 02 – CASE, GEARING AND PLANETARY

Products

PositionProduct
2WP9703315 Whirlpool Hub Cap
48212396 Whirlpool Housing
6WP9709511 Whirlpool Microwave High Voltage Transformer
7WP9703680 Whirlpool Retainer Ring
8W11192795 Whirlpool Gear
9WP9707223 Whirlpool Dowel Pin
10GEAR
12WP16897 Whirlpool Bearing
13W11181966 Whirlpool Gear
14WP3400814 Whirlpool Screw
15WP9706247 Whirlpool Seal
16WPW10170080 Whirlpool Bearing Assembly
16WPW10170081 Whirlpool Bearing
17WP9703445 Whirlpool Bearing Kit Thrust
18WP9709231 Whirlpool Gear Assembly
21W10913677 Whirlpool Screw
22W10853069 Whirlpool Screw
23WP9709194 Whirlpool Black Thumb Screw
24WP9706648 Whirlpool Speed Control
25WPW10247536 Whirlpool Motor
26W11359748 Whirlpool Power Cord
26W11728151 Whirlpool Power Cord
28CABINET (NOT A SERVICEABLE PART)
29W11084660 Whirlpool Washer
30WP9703438 Whirlpool Snap Retaining Ring
31WP9706090 Whirlpool Washer
32W11133646 Whirlpool Gear
33W10854966 Whirlpool Washer
34WP9708191 Whirlpool Agitator Shaft
35W11664709 Whirlpool Groove Pin
