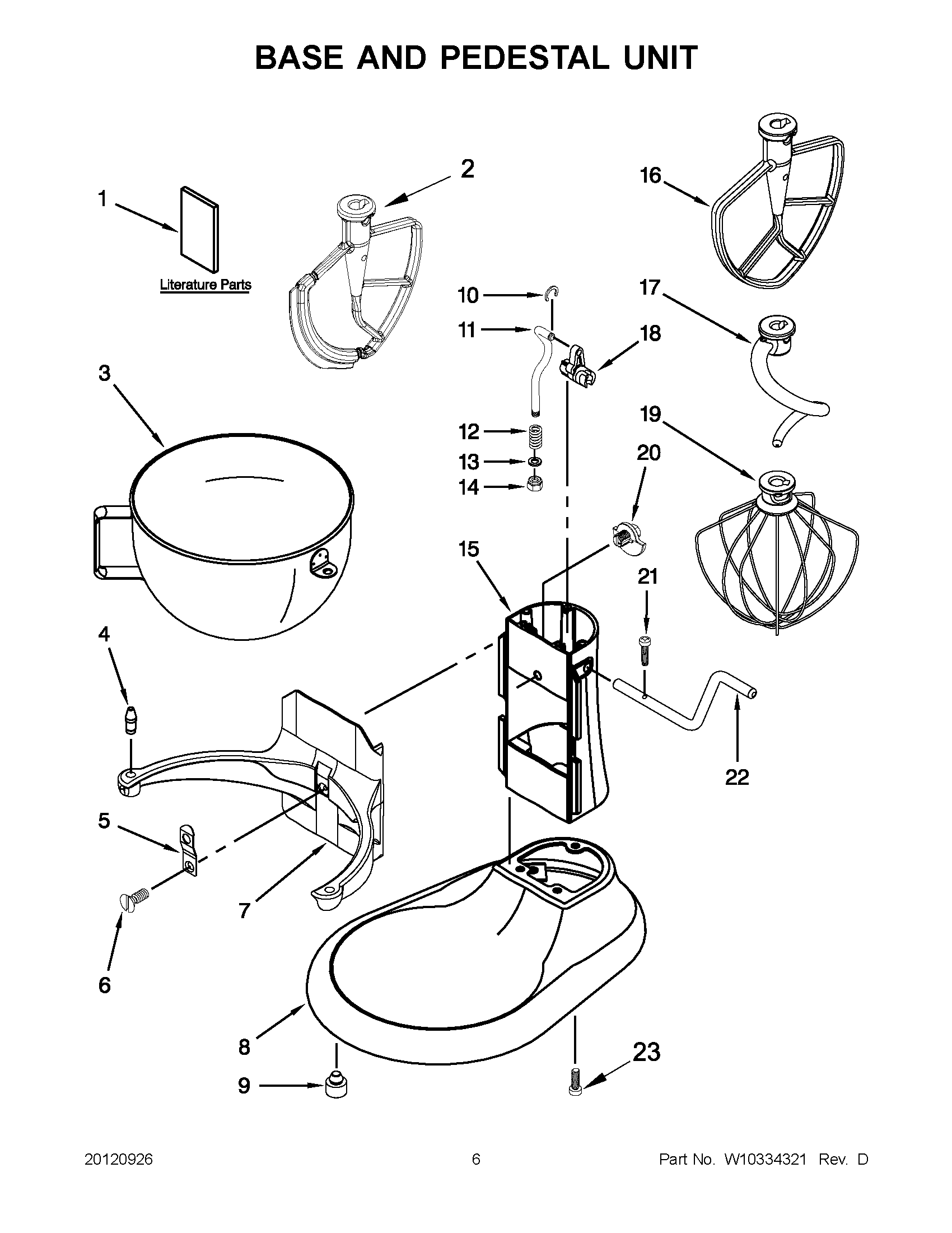

KV25MEXGC5 03 – BASE AND PEDESTAL UNITadmin2025-04-26T09:40:00+00:00KV25MEXGC5 03 – BASE AND PEDESTAL UNIT ProductsPositionProduct1GUIDE, USE AND CARE1GUIDE, USE AND CARE2BEATER, FLEX EDGE3WPW10245251 Whirlpool Mixer Bowl3WPW10717235 Whirlpool Mixer Bowl4WP240185 Whirlpool Bowl Retaining Pin5WPW10504114 Whirlpool Clip6W10861883 Whirlpool Screw9WP9708649 Whirlpool Foot10WP9703307 Whirlpool Ring-C Assembly11W11376364 Whirlpool Lift Rod124159622 Whirlpool PP Spring13Washer148533907 Whirlpool Dishwasher Nut15CABINET (NOT A SERVICEABLE PART)16WPW10672616 Whirlpool Mixer Beater16W11646967 Whirlpool Mixer Beater17W11646968 Whirlpool Dough Hook17W10908278 Whirlpool Dough Hook18WP9706885 Whirlpool Lift Arm Assembly19WP9703491 Whirlpool Wire Whip20Cam, Adjusting21WP3400814 Whirlpool Screw22W11376371 Whirlpool Handle Assembly23W10913677 Whirlpool Screw
