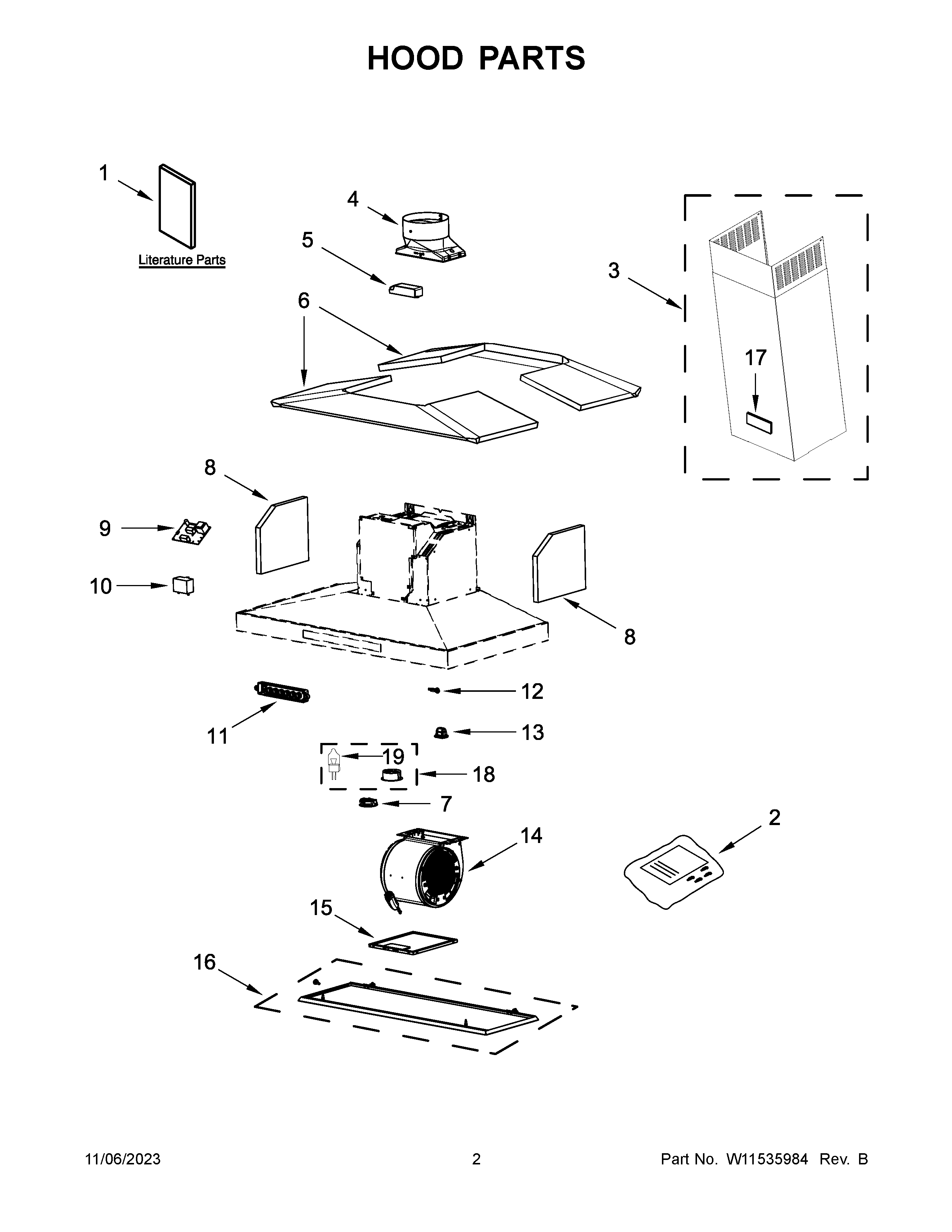

KVIB602DSS4 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	W10795224 Whirlpool Hardware
3	W11321565 Whirlpool Chimney
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11282989 Whirlpool Transformer
6	W11688382 Whirlpool Insulation
7	W11493395 Whirlpool Light Assembly
8	W10717244 Whirlpool Insulation
9	W11293971 Whirlpool Electronic Control Board
10	W11715950 Whirlpool Capacitor Assembly
11	WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
12	W11737108 Whirlpool Thermostat Switch
13	W10854245 Whirlpool Clip
14	W11106377 Whirlpool Blower Fan
15	W10915369 Whirlpool Stove Hood Filter
16	W10735402 Whirlpool Base Cover
17	W10909682 Whirlpool Nameplate Tag
18	WPW10638164 Whirlpool Light Bulb
19	BULB-LIGHT
