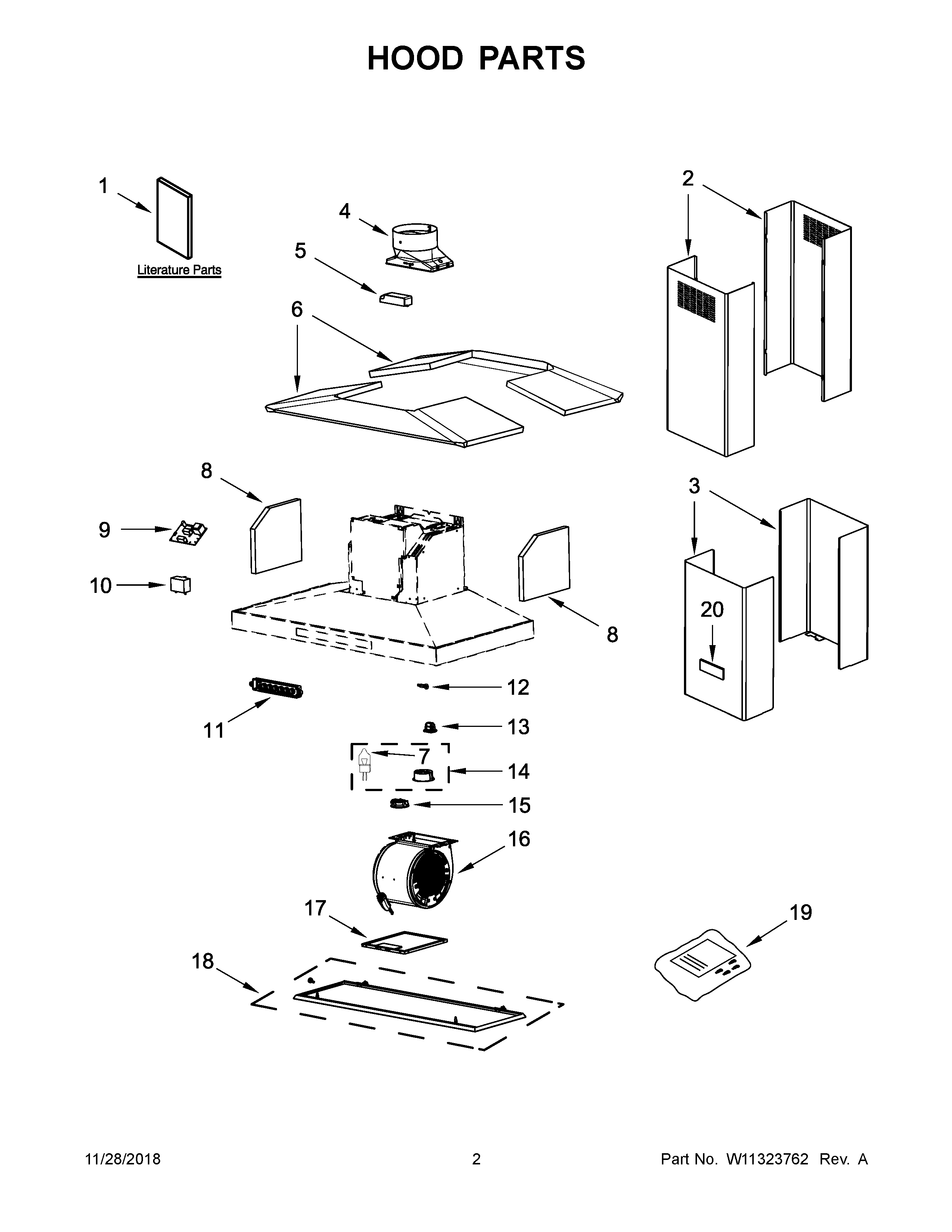

KVIB606DBS2 02 – HOOD PARTS

Products

Position	Product
NI	W10750880 Whirlpool Chimney
NI	W11430922 Whirlpool Duct Kit
NI	W11430921 Whirlpool Duct Kit
NI	W10692945 Whirlpool Range Hood Fan Motor
NI	W10613691 Whirlpool Range Hood Power Cord
NI	W10446915 Whirlpool Range Hood Air Kit
1	USE AND CARE GUIDE
2	CHIMNEY, UPPER
3	CHIMNEY, LOWER
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11282989 Whirlpool Transformer
6	W11688720 Whirlpool Insulation
7	BULB-LIGHT
8	W10717244 Whirlpool Insulation
9	W11293971 Whirlpool Electronic Control Board
10	W11715950 Whirlpool Capacitor Assembly
11	WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
12	W11737108 Whirlpool Thermostat Switch
13	W10854245 Whirlpool Clip
14	WPW10638164 Whirlpool Light Bulb
15	W11109591 Whirlpool Light Assembly
16	W11106377 Whirlpool Blower Fan
17	W10915369 Whirlpool Stove Hood Filter
18	W10795232 Whirlpool Base Cover
19	W10795224 Whirlpool Hardware
20	W10909682 Whirlpool Nameplate Tag
