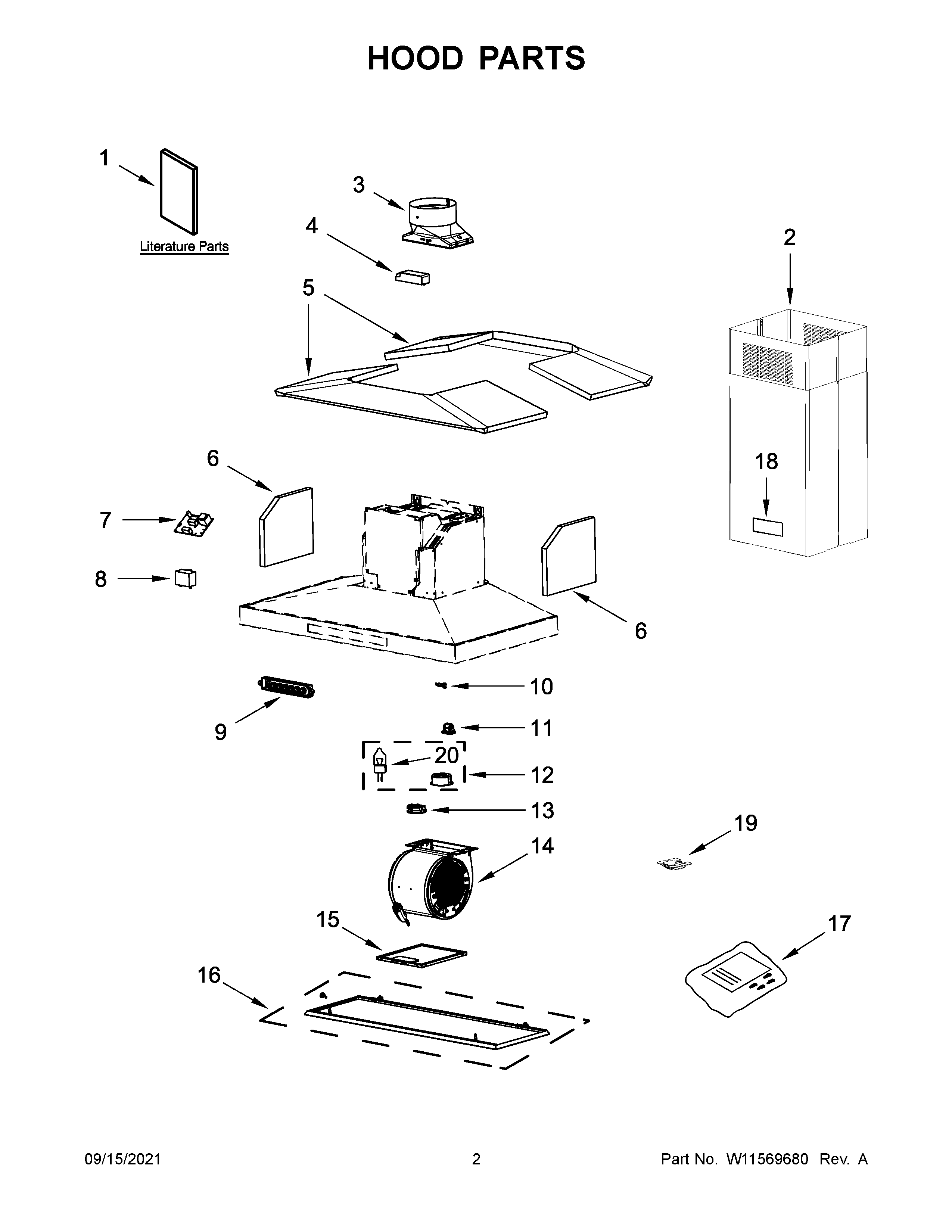

KVIB606DBS3 02 – HOOD PARTS

Products

Position	Product
1	OWNER'S MANUAL
2	CHIMNEY, LOWER AND UPPER
3	W10847841 Whirlpool Range Hood Vent Damper
4	W11282989 Whirlpool Transformer
5	W11688720 Whirlpool Insulation
6	W10717244 Whirlpool Insulation
7	W11293971 Whirlpool Electronic Control Board
8	W11715950 Whirlpool Capacitor Assembly
9	WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
10	W11737108 Whirlpool Thermostat Switch
11	W10854245 Whirlpool Clip
12	WPW10638164 Whirlpool Light Bulb
13	W11493395 Whirlpool Light Assembly
14	W11106377 Whirlpool Blower Fan
15	W10915369 Whirlpool Stove Hood Filter
16	W10795232 Whirlpool Base Cover
17	W10795224 Whirlpool Hardware
18	W10909682 Whirlpool Nameplate Tag
19	GROMMET, CABLE
20	BULB-LIGHT
