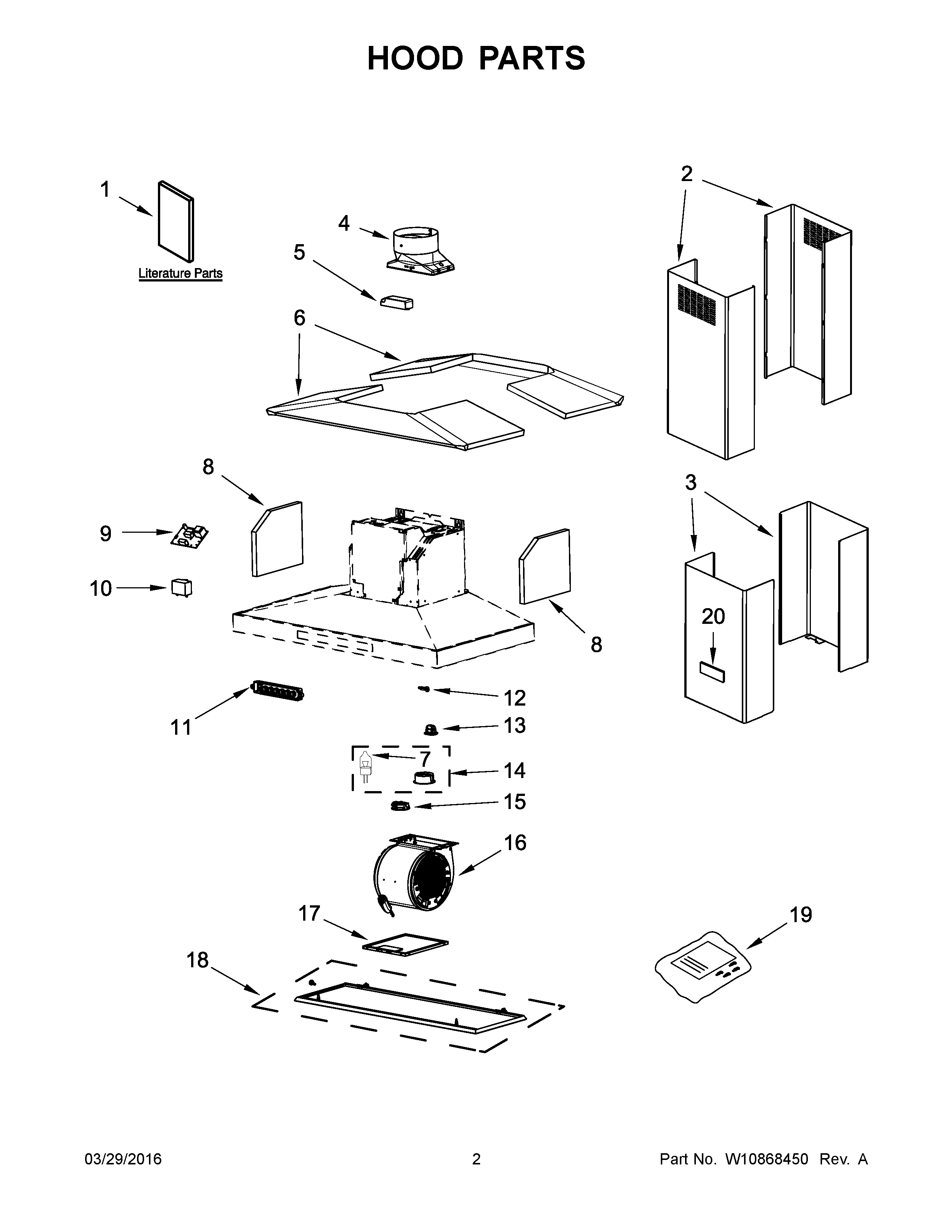

KVIB606DSS1 02 – HOOD PARTS

KVIB606DSS1 02 – HOOD PARTS

Written by

in

KVIB606DSS1 02 – HOOD PARTS

Products

PositionProduct
NIW11430922 Whirlpool Duct Kit
NIW11430921 Whirlpool Duct Kit
NIW10692945 Whirlpool Range Hood Fan Motor
NIW10688278 Whirlpool Chimney
NIW10613691 Whirlpool Range Hood Power Cord
NIW10446915 Whirlpool Range Hood Air Kit
1USE AND CARE GUIDE
3W11321565 Whirlpool Chimney
4W10847841 Whirlpool Range Hood Vent Damper
5W11282989 Whirlpool Transformer
6AW11688382 Whirlpool Insulation
6W11688720 Whirlpool Insulation
7BULB-LIGHT
8W10717244 Whirlpool Insulation
9WPW10716816-includeCORE Whirlpool WPW10716816 Refrigerator Electronic Control Board + Core
10W11715950 Whirlpool Capacitor Assembly
11WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
12W11737108 Whirlpool Thermostat Switch
13W10854245 Whirlpool Clip
14WPW10638164 Whirlpool Light Bulb
15W11109591 Whirlpool Light Assembly
16W11106377 Whirlpool Blower Fan
17W10915369 Whirlpool Stove Hood Filter
18W10735373 Whirlpool Base Cover
18AW10735402 Whirlpool Base Cover
19W10795224 Whirlpool Hardware
20W10909682 Whirlpool Nameplate Tag
