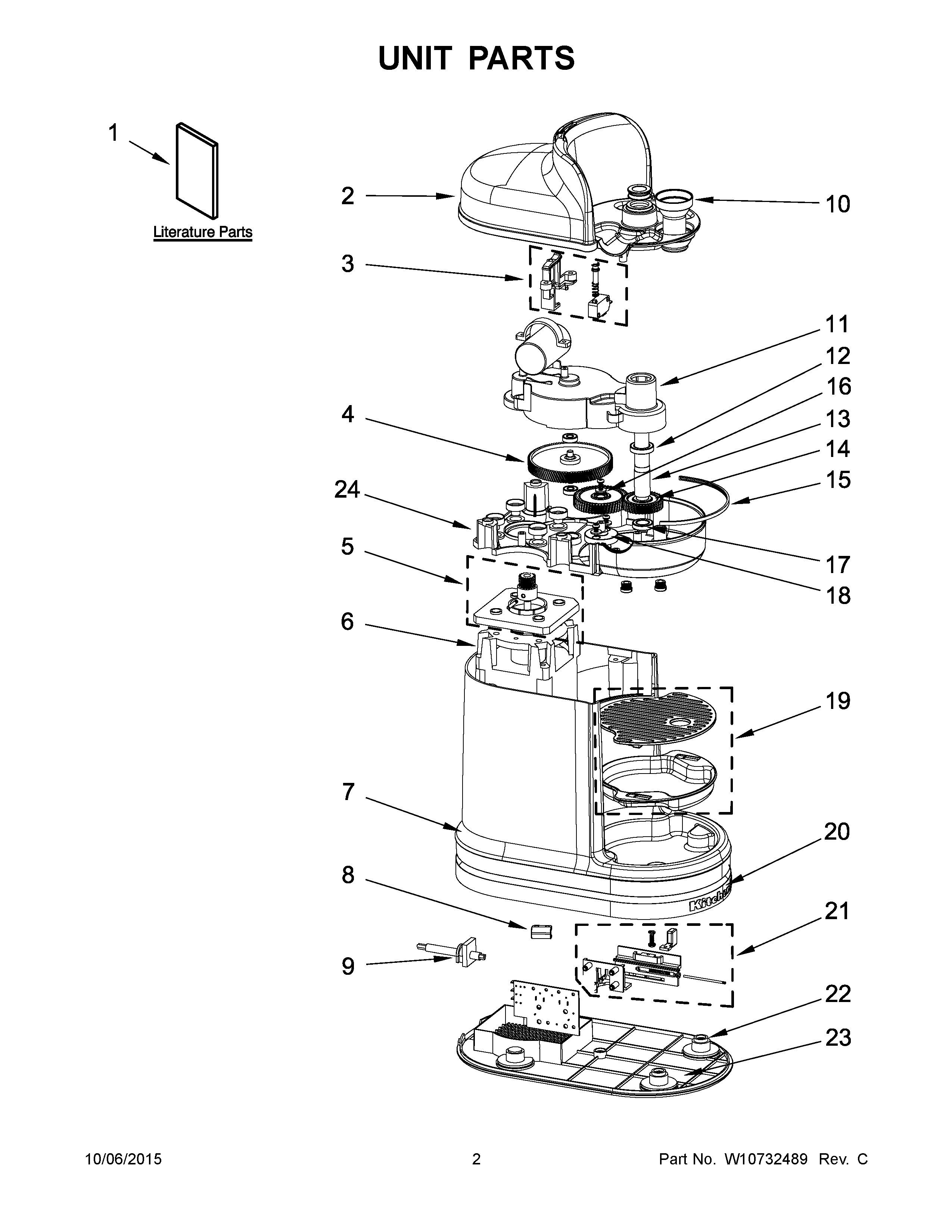

KVJ0111WH0 02 – UNIT PARTS

Products

Position	Product
1B	CABINET (NOT A SERVICEABLE PART)
1	USE AND CARE GUIDE, US
1A	USE AND CARE GUIDE, EUROPEAN
2E	COVER, HOUSING (MEDALLION SILVER)
2D	COVER, HOUSING (ALMOND CREME)
2C	COVER, HOUSING (CANDY APPLE)
2B	COVER, HOUSING (CONTOUR SILVER)
2A	COVER, HOUSING (ONYX BLACK)
2	COVER, HOUSING (WHITE)
3	SWITCH, MICRO
4	GEAR, COMPOUND
5	BRACKET, MOTOR ASSEMBLY
6	MOTOR (INCLUDES CAPACITOR) (U.S.)
6A	MOTOR (INCLUDES CAPACITOR) (EUROPEAN)
7	BASE HOUSING (WHITE, U.S.)
7A	BASE HOUSING (ONYX BLACK, U.S.)
7B	BASE HOUSING (ONYX BLACK, EUROPEAN)
7D	BASE HOUSING (CANDY APPLE, EUROPEAN)
7E	BASE HOUSING (ALMOND CREME)
7F	BASE HOUSING (MEDALLION SILVER)
7C	BASE HOUSING (CONTOUR SILVER, U.S.)
8	SUPPORT, CORD LOCK
9B	CORD, POWER (BRAZIL)
9A	CORD, POWER (EUROPEAN)
9	CORD, POWER (U.S.)
10	W10736798 Whirlpool Spout
11	COVER, GEARBOX
12	BEARING, BALL
13	SHAFT, OUTPUT GEAR
14	GEAR, OUTPUT
15	SEAL, GEARBOX
16	GEAR, IDLER
17	BEARING, BALL
18	SHAFT, POWER
19	COVER, TRAY GRATE
20	TRIM BAND (U.S.)
20A	TRIM BAND (EUROPEAN)
21	SWITCH ASSEMBLY
22	BASE
22A	BASE, BRAZIL
23	FOOT
24E	WPL W10842695
24D	GEAR BOX (ALMOND C
24C	GEAR BOX (CANDY APPLE)
24B	GEAR BOX (CONTOUR SILVER)
24	GEAR BOX (WHITE)
24A	GEAR BOX (ONYX BLACK)
