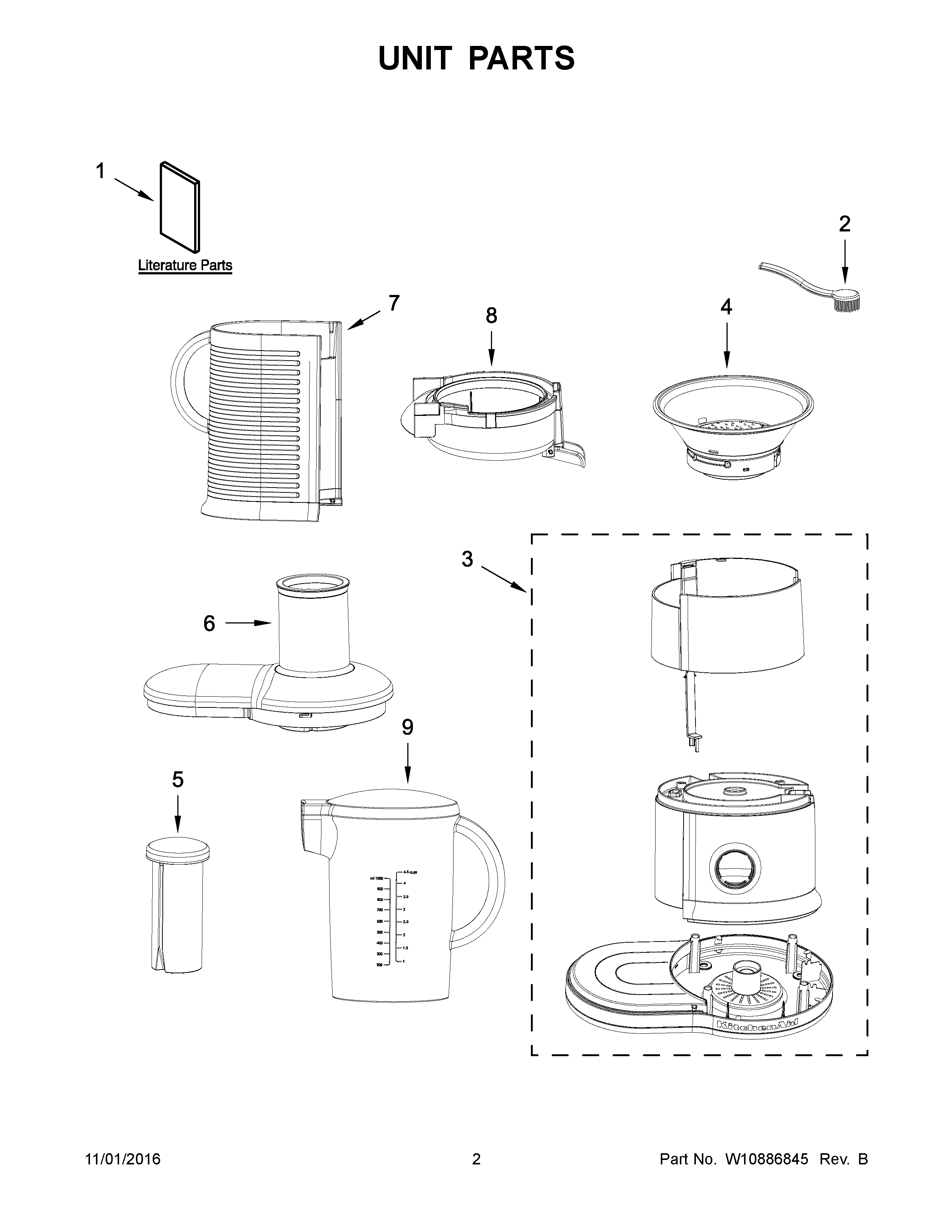

KVJ0333WH1 02 – UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	BRUSH, CLEANING
3	LOWER HOUSING (INCLUDES MOTOR & CONTROLS) (WHITE)
3A	LOWER HOUSING (INCLUDES MOTOR & CONTROLS) (ONYX BLACK)
3B	LOWER HOUSING (INCLUDES MOTOR & CONTROLS) (CONTOUR SILVER)
3C	LOWER HOUSING (INCLUDES MOTOR & CONTROLS) (LIQUID GRAPHITE)
4	BASKET ASSEMBLY, ADJUSTABLE FIBER (CERAMIC)
5	PUSHER ASSEMBLY
6	LID ASSEMBLY
7	CONTAINER ASSEMBLY, PULP
8	HOUSING ASSEMBLY, JUICE (INCLUDES SPOUT)
9	CONTAINER ASSEMBLY, JUICE
