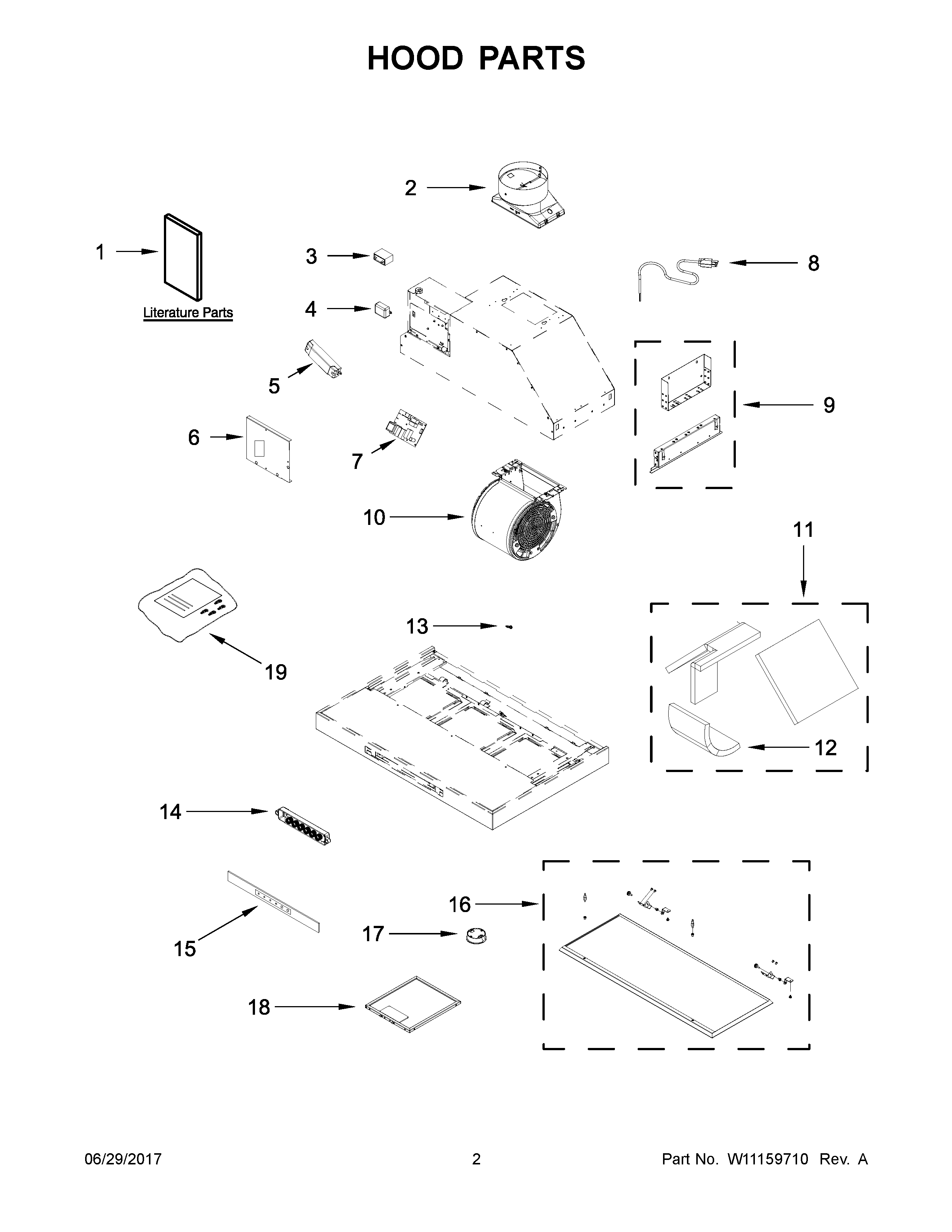

KVUB400GSS00 02 – HOOD PARTS

KVUB400GSS00 02 – HOOD PARTS

Written by

in

KVUB400GSS00 02 – HOOD PARTS

Products

PositionProduct
NIW10490330 Whirlpool Range Hood Recirculation Kit
NIW10272068 Whirlpool Range Hood Charcoal Filter Set
1USE AND CARE GUIDE
2W10847841 Whirlpool Range Hood Vent Damper
3W11328673 Whirlpool Capacitor
4W10711069 Whirlpool Filter
5W11157481 Whirlpool Transformer
6COVER, JUNCTION BOX
7WPW10716816-includeCORE Whirlpool WPW10716816 Refrigerator Electronic Control Board + Core
8W11157556 Whirlpool Power Cord
9AKIT, UPPER & LOWER BRACKET (36" MODEL ONLY)
9W11157534 Whirlpool Mounting Bracket
10WPW10291577 Whirlpool Fan Motor
11W11684786 Whirlpool Insulation
12W11688852 Whirlpool Insulation Assembly
13W11737108 Whirlpool Thermostat Switch
14W11445771 Whirlpool Electronic Control Board + Core
15W11432229 Whirlpool Glass
16W10735352 Whirlpool Base Cover
17W11109591 Whirlpool Light Assembly
18W10915369 Whirlpool Stove Hood Filter
19W11157524 Whirlpool Hardware Assembly
