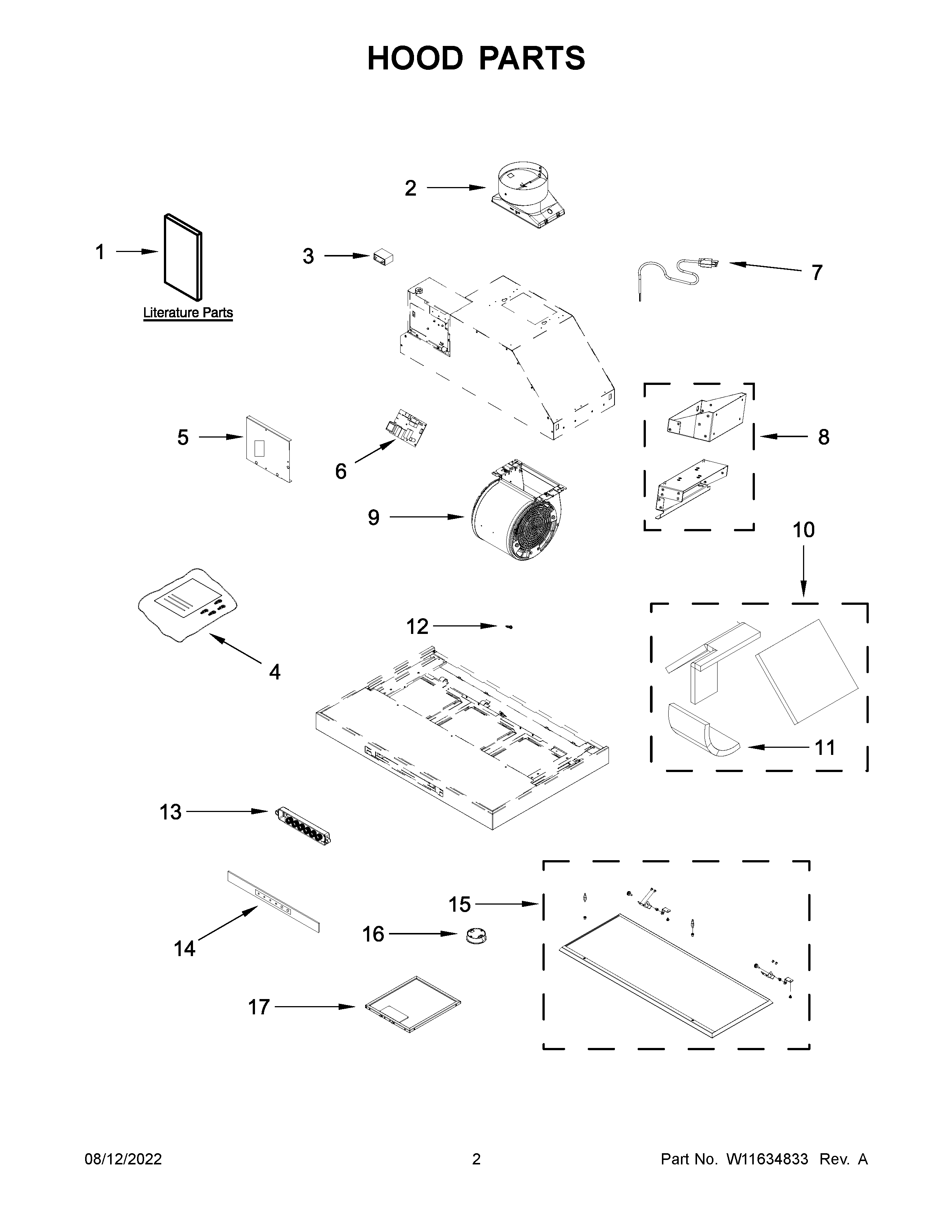

KVUB400GSS03 02 – HOOD PARTS

KVUB400GSS03 02 – HOOD PARTS

Written by

in

KVUB400GSS03 02 – HOOD PARTS

Products

PositionProduct
1OWNER'S MANUAL
2W10847841 Whirlpool Range Hood Vent Damper
3W11328673 Whirlpool Capacitor
4W11157524 Whirlpool Hardware Assembly
5COVER, JUNCTION BOX
6W11613025-includeCORE Whirlpool W11613025 Refrigerator Electronic Control Board with Core
7W11157556 Whirlpool Power Cord
8W11157534 Whirlpool Mounting Bracket
8AKIT, UPPER & LOWER BRACKET (36" MODEL ONLY)
9WPW10291577 Whirlpool Fan Motor
10W11684786 Whirlpool Insulation
11W11688852 Whirlpool Insulation Assembly
12W11737108 Whirlpool Thermostat Switch
13W11572075-includeCORE Whirlpool W11572075 Refrigerator Electronic Control Board
14W11432229 Whirlpool Glass
15W10735352 Whirlpool Base Cover
16W11493395 Whirlpool Light Assembly
17W10915369 Whirlpool Stove Hood Filter
