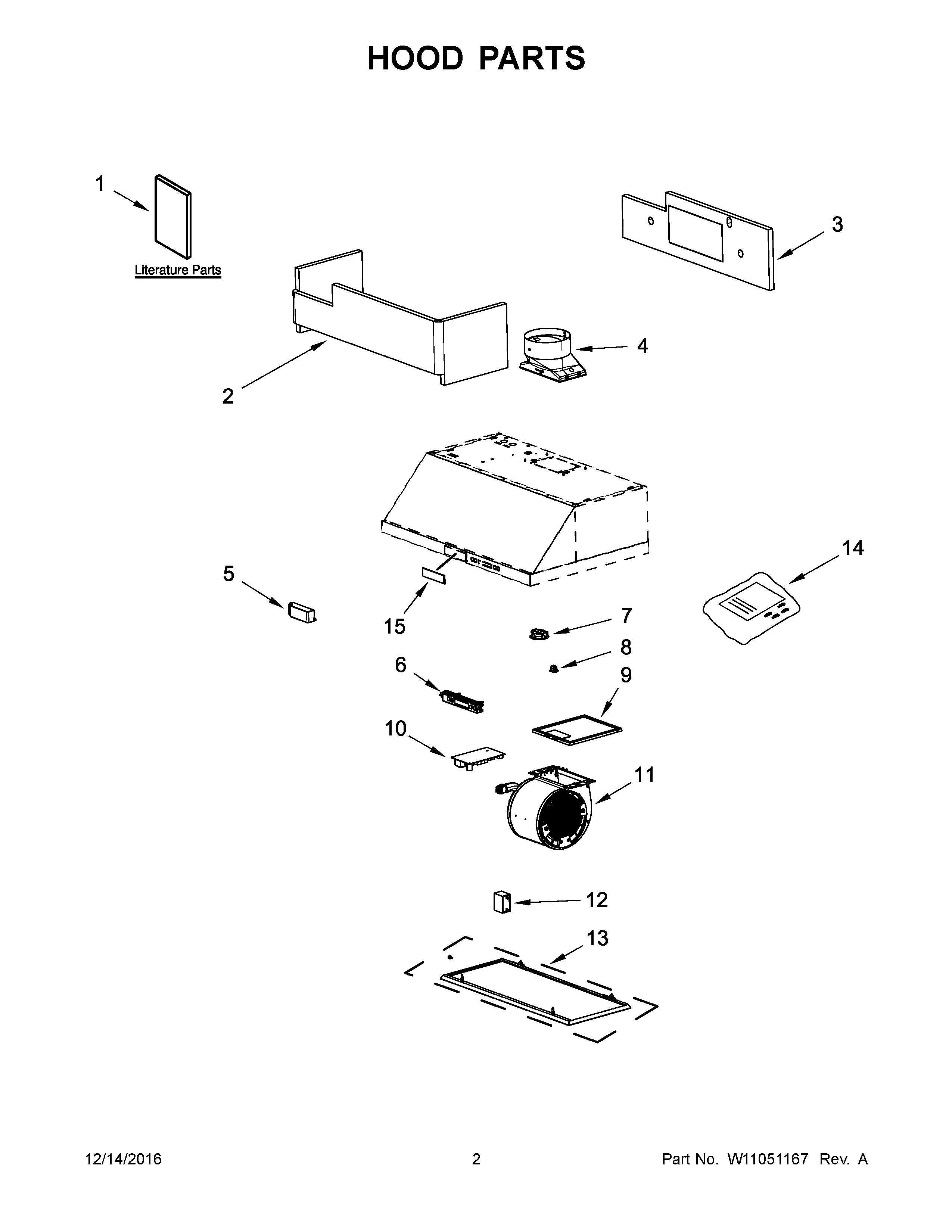

KVUB600DSS1 02 – HOOD PARTS

Products

Position	Product
NI	W10613691 Whirlpool Range Hood Power Cord
NI	W10692945 Whirlpool Range Hood Fan Motor
NI	W10490330 Whirlpool Range Hood Recirculation Kit
NI	W10692946 Whirlpool Range Hood Damper
NI	W10446915 Whirlpool Range Hood Air Kit
NI	W10272068 Whirlpool Range Hood Charcoal Filter Set
1	USE AND CARE GUIDE
2	W11688383 Whirlpool Insulation
2A	W10735396 Whirlpool Insulation
3	W11688384 Whirlpool Insulation
3A	W11684913 Whirlpool Insulation
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11282989 Whirlpool Transformer
6	W11282990 Whirlpool Electronic Control Board
7	W11109591 Whirlpool Light Assembly
8	W10854245 Whirlpool Clip
9	W10915369 Whirlpool Stove Hood Filter
10	WPW10291604-includeCORE Whirlpool WPW10291604 Washer Electronic Control Board + Core
11	W11035826 Whirlpool Fan Motor
12	W11715950 Whirlpool Capacitor Assembly
13A	W10735373 Whirlpool Base Cover
13	W10735352 Whirlpool Base Cover
14	W11051290 Whirlpool Hardware
15	W10852683 Whirlpool Nameplate
