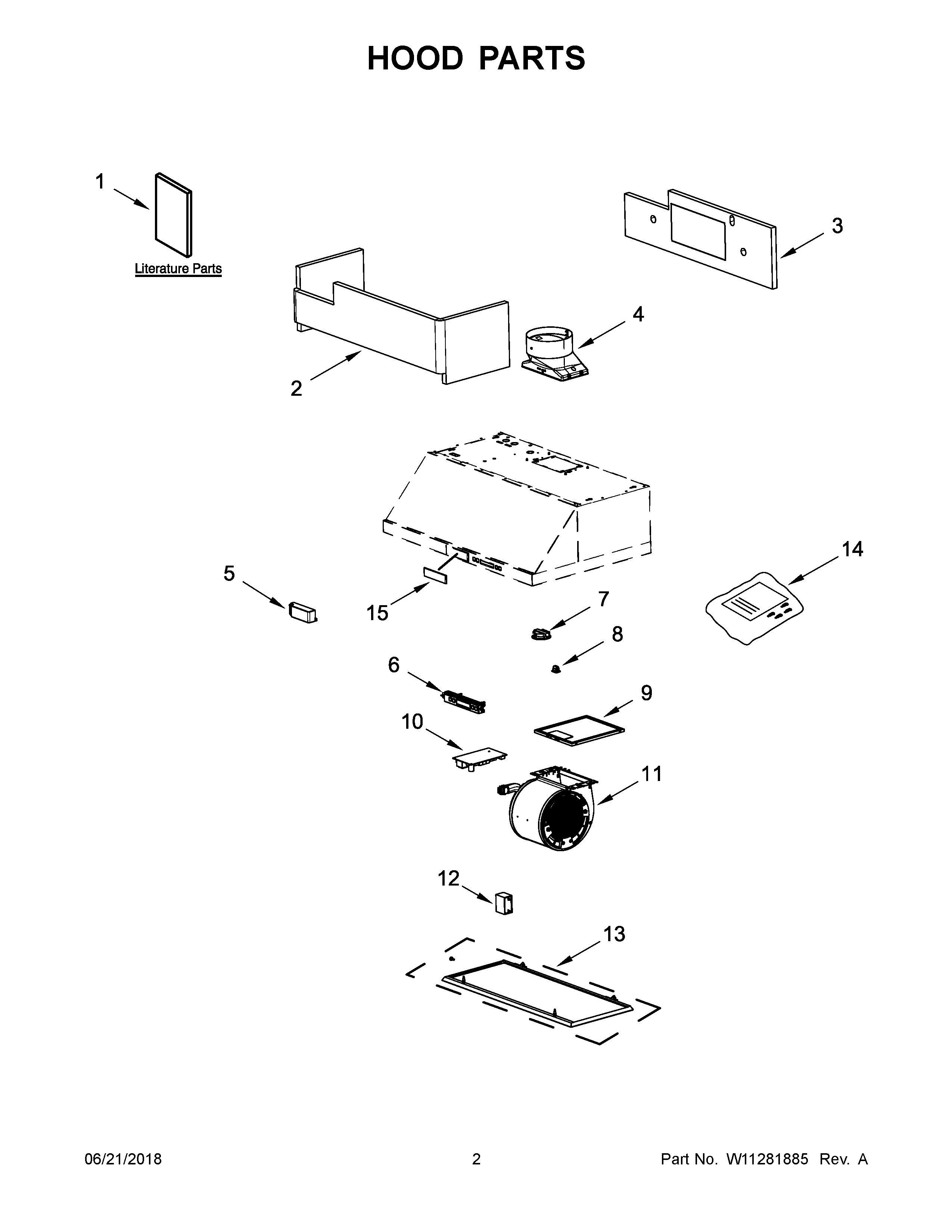

KVUB600DSS3 02 – HOOD PARTS

KVUB600DSS3 02 – HOOD PARTS

Written by

in

KVUB600DSS3 02 – HOOD PARTS

Products

PositionProduct
NIW10692946 Whirlpool Range Hood Damper
NIW10692945 Whirlpool Range Hood Fan Motor
NIW10613691 Whirlpool Range Hood Power Cord
NIW10490330 Whirlpool Range Hood Recirculation Kit
NIW10446915 Whirlpool Range Hood Air Kit
NIW10272068 Whirlpool Range Hood Charcoal Filter Set
1USE AND CARE GUIDE
2AW10735396 Whirlpool Insulation
2W11688383 Whirlpool Insulation
3AW11684913 Whirlpool Insulation
3W11688384 Whirlpool Insulation
4W10847841 Whirlpool Range Hood Vent Damper
5W11282989 Whirlpool Transformer
6W11282990 Whirlpool Electronic Control Board
7W11109591 Whirlpool Light Assembly
8W10854245 Whirlpool Clip
9W10915369 Whirlpool Stove Hood Filter
10W11282983 Whirlpool Electronic Control Board
11W11035826 Whirlpool Fan Motor
12W11715950 Whirlpool Capacitor Assembly
13AW10735373 Whirlpool Base Cover
13W10735352 Whirlpool Base Cover
14W11281881 Whirlpool Hardware
15W10909682 Whirlpool Nameplate Tag
