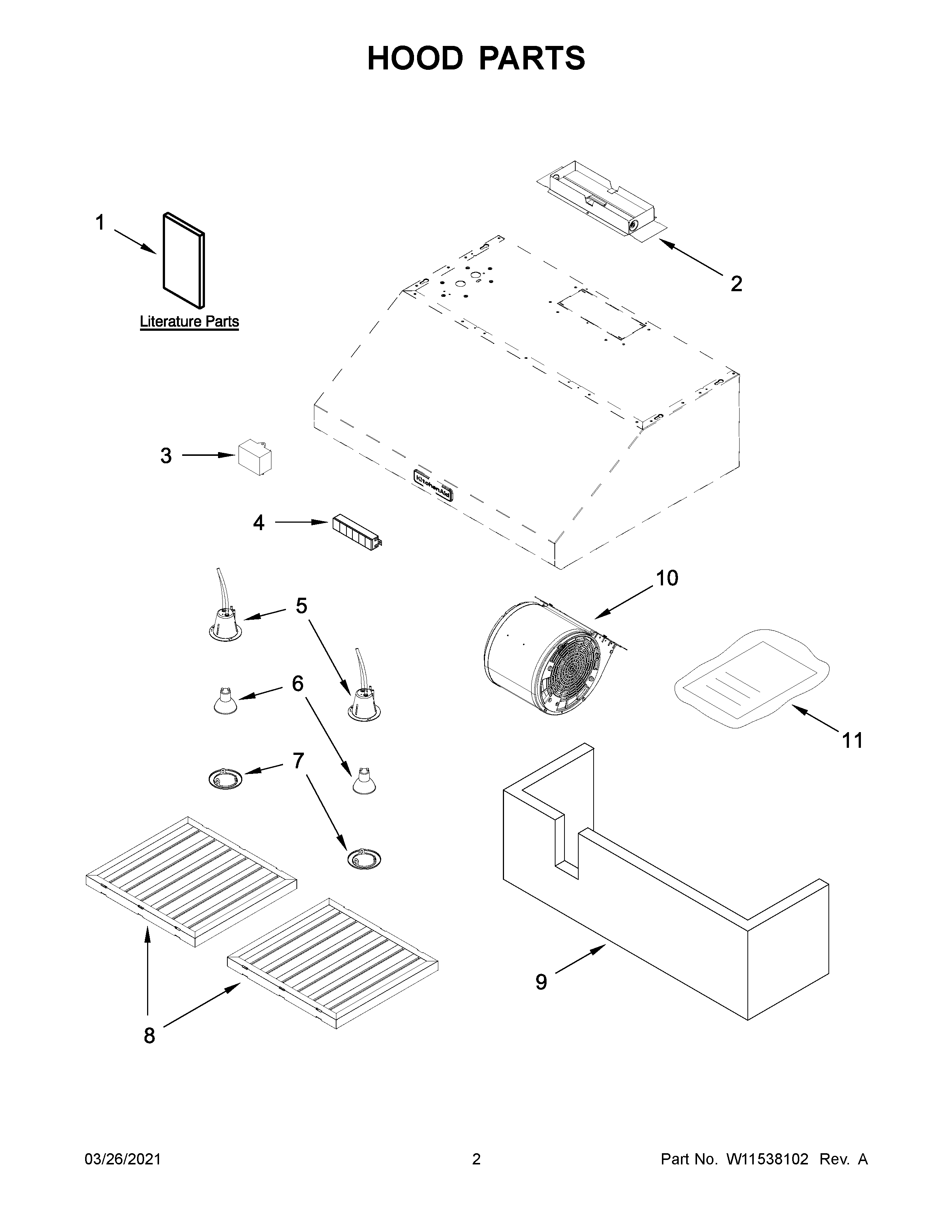

KVUC600KSS0 02 – HOOD PARTS

Products

Position	Product
1	OWNER'S MANUAL
2	W11516461 Whirlpool Hood Damper
3	W11715950 Whirlpool Capacitor Assembly
4	W11516463-includeCORE Whirlpool W11516463 Washer Electronic Control Board + Core
5	HOUSING, LAMP
6	W11388881 Whirlpool Light Assembly
7	W10351924 Whirlpool Bezel
8A	W10351892 Whirlpool Filter Assembly
8	W10351890 Whirlpool Filter
9	INSULATION (30" MODEL ONLY)
9A	INSULATION (36" MODEL ONLY)
10	W11035826 Whirlpool Fan Motor
11	W11514919 Whirlpool Hardware Assembly
