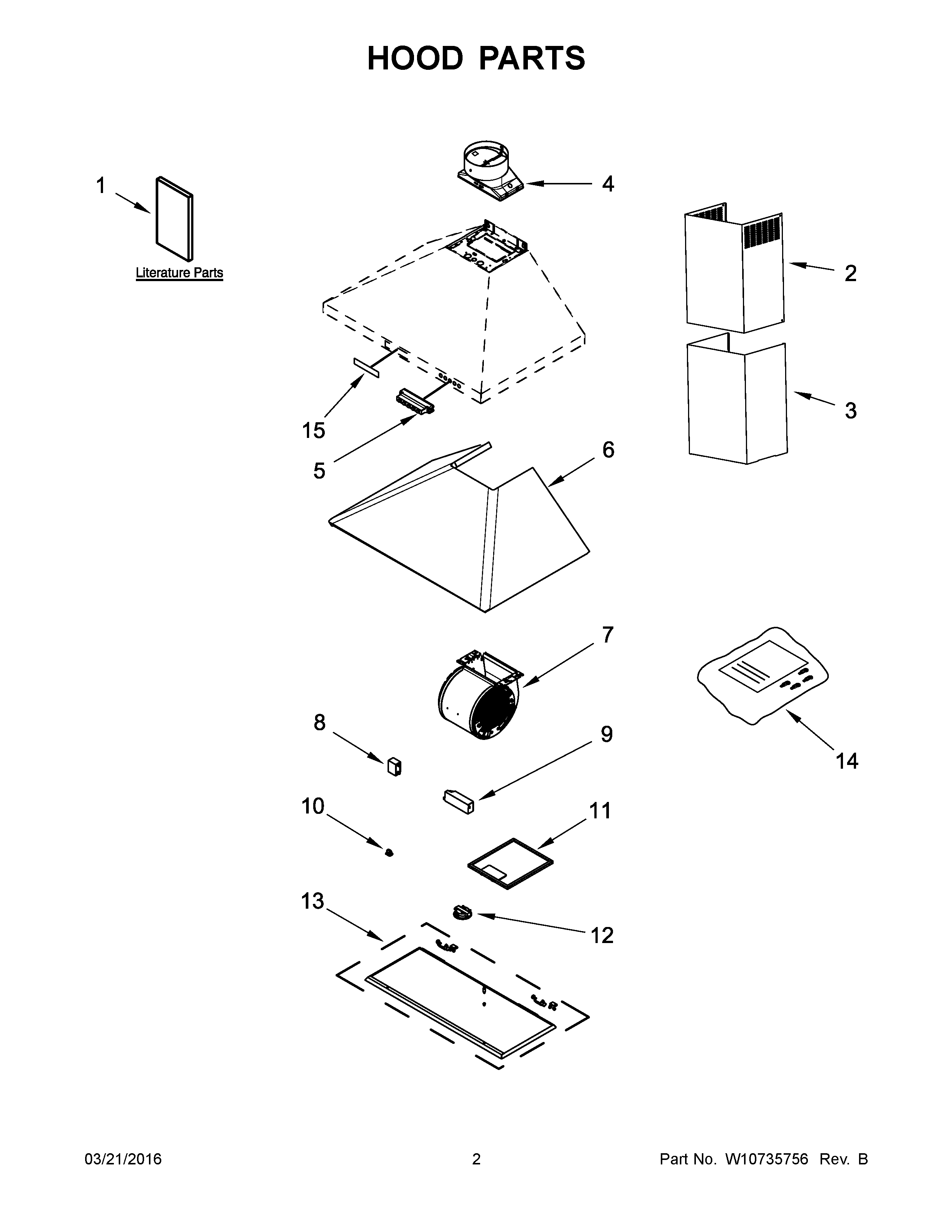

KVWB400DSS0 02 – HOOD PARTS

Products

Position	Product
NI	W10337357 Whirlpool Range Hood Chimney
NI	W10272063 Whirlpool Range Hood Recirculation Kit
NI	W10692945 Whirlpool Range Hood Fan Motor
NI	W10613691 Whirlpool Range Hood Power Cord
NI	W10272068 Whirlpool Range Hood Charcoal Filter Set
1	USE AND CARE GUIDE
3	W11417192 Whirlpool Duct Assembly
4	W10847841 Whirlpool Range Hood Vent Damper
5	WPW10727063-includeCORE Whirlpool WPW10727063 Refrigerator Electronic Control Board + Core
6A	W11684790 Whirlpool Insulation
6	W11688813 Whirlpool Insulation
7	W11244048 Whirlpool Fan Motor
8	W11328673 Whirlpool Capacitor
9	W11282989 Whirlpool Transformer
10	W10854245 Whirlpool Clip
11	W10915369 Whirlpool Stove Hood Filter
12	W11109591 Whirlpool Light Assembly
13A	W10735373 Whirlpool Base Cover
13	W10735352 Whirlpool Base Cover
14	W11038859 Whirlpool Hardware
15	W10909682 Whirlpool Nameplate Tag
