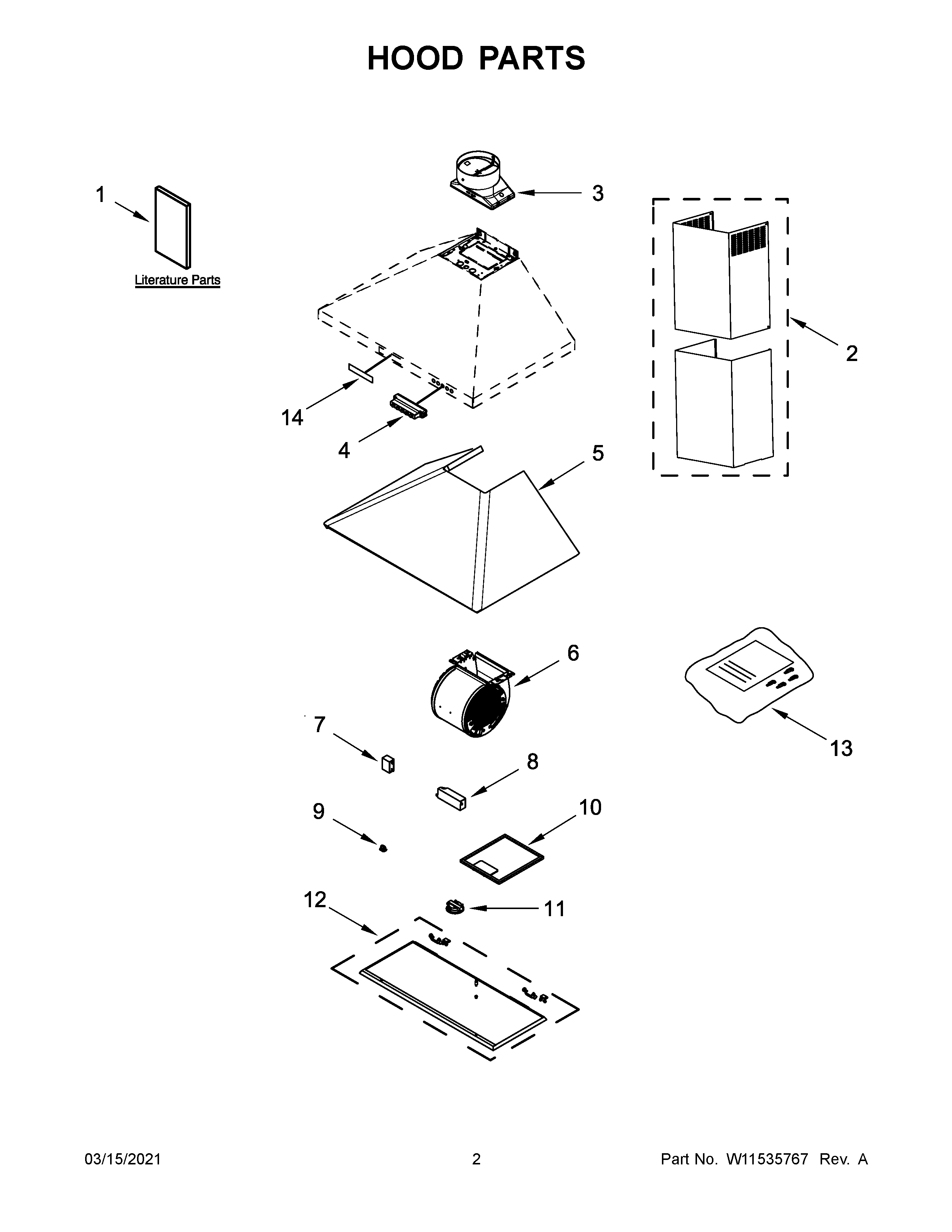

KVWB400DSS3 02 – HOOD PARTS

KVWB400DSS3 02 – HOOD PARTS

Written by

in

KVWB400DSS3 02 – HOOD PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2W11417192 Whirlpool Duct Assembly
3W10847841 Whirlpool Range Hood Vent Damper
4WPW10727063-includeCORE Whirlpool WPW10727063 Refrigerator Electronic Control Board + Core
5W11688813 Whirlpool Insulation
5AW11684790 Whirlpool Insulation
6W11244048 Whirlpool Fan Motor
7W11328673 Whirlpool Capacitor
8W11282989 Whirlpool Transformer
9W10854245 Whirlpool Clip
10W10915369 Whirlpool Stove Hood Filter
11W11493395 Whirlpool Light Assembly
12AW10735373 Whirlpool Base Cover
12W10735352 Whirlpool Base Cover
13W11038859 Whirlpool Hardware
14W10909682 Whirlpool Nameplate Tag
