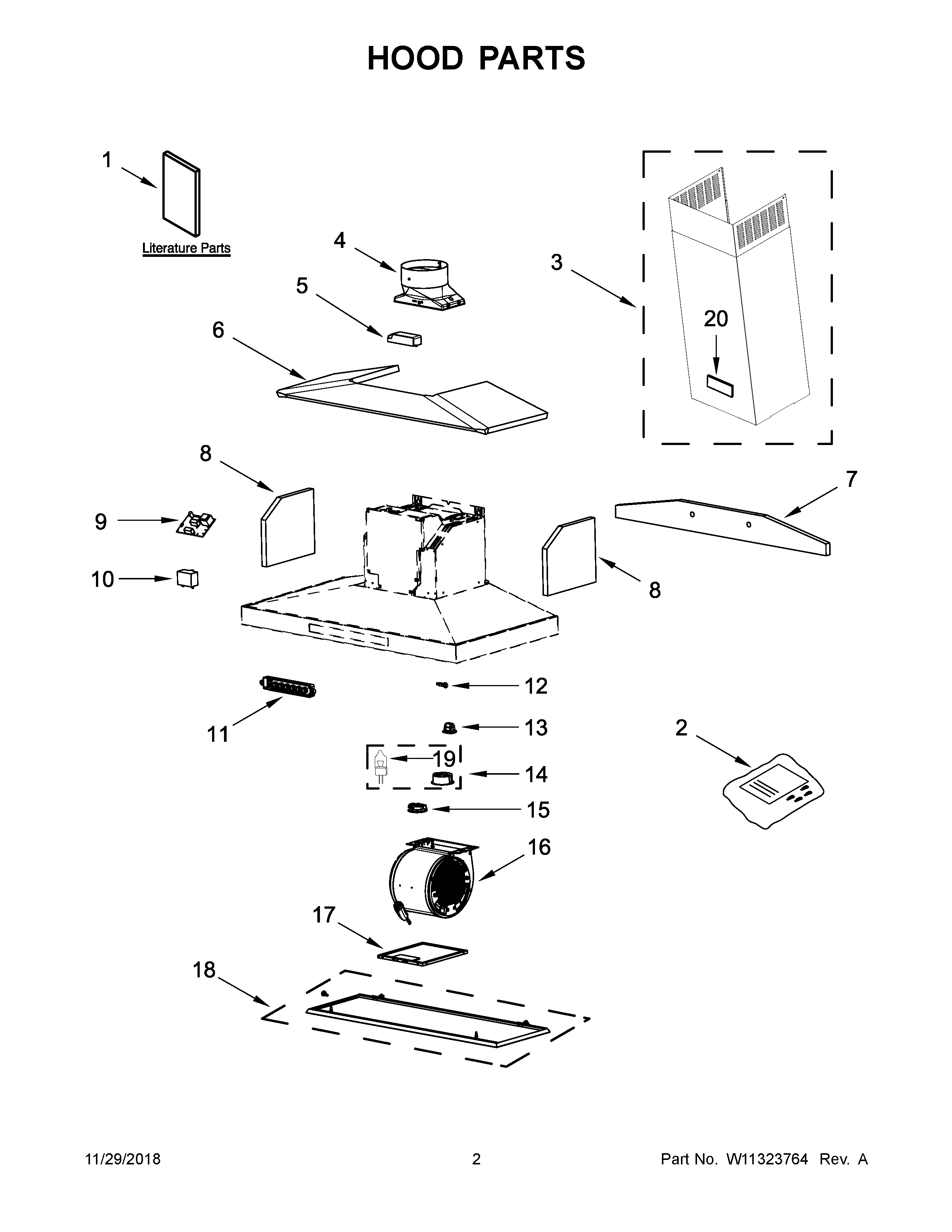

KVWB600DBS1 02 – HOOD PARTS

KVWB600DBS1 02 – HOOD PARTS

Written by

in

KVWB600DBS1 02 – HOOD PARTS

Products

PositionProduct
NIW10750879 Whirlpool Chimney
NIW11430925 Whirlpool Duct Kit
NIW11430921 Whirlpool Duct Kit
NIW10692945 Whirlpool Range Hood Fan Motor
NIW10613691 Whirlpool Range Hood Power Cord
NIW10446915 Whirlpool Range Hood Air Kit
1USE AND CARE GUIDE
2W11321343 Whirlpool Hardware
3W11339715 Whirlpool Chimney
4W10847841 Whirlpool Range Hood Vent Damper
5W11282989 Whirlpool Transformer
6AW11688395 Whirlpool Insulation
6W11688772 Whirlpool Insulation
7W11684907 Whirlpool Insulation
7AW11684803 Whirlpool Insulation
8W10717244 Whirlpool Insulation
9W11293971 Whirlpool Electronic Control Board
10W11715950 Whirlpool Capacitor Assembly
11WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
12W11737108 Whirlpool Thermostat Switch
13W10854245 Whirlpool Clip
14WPW10638164 Whirlpool Light Bulb
15W11109591 Whirlpool Light Assembly
16W11106377 Whirlpool Blower Fan
17W10915369 Whirlpool Stove Hood Filter
18AW10795232 Whirlpool Base Cover
18W10795231 Whirlpool Base Cover
19BULB-LIGHT
20W10909682 Whirlpool Nameplate Tag
