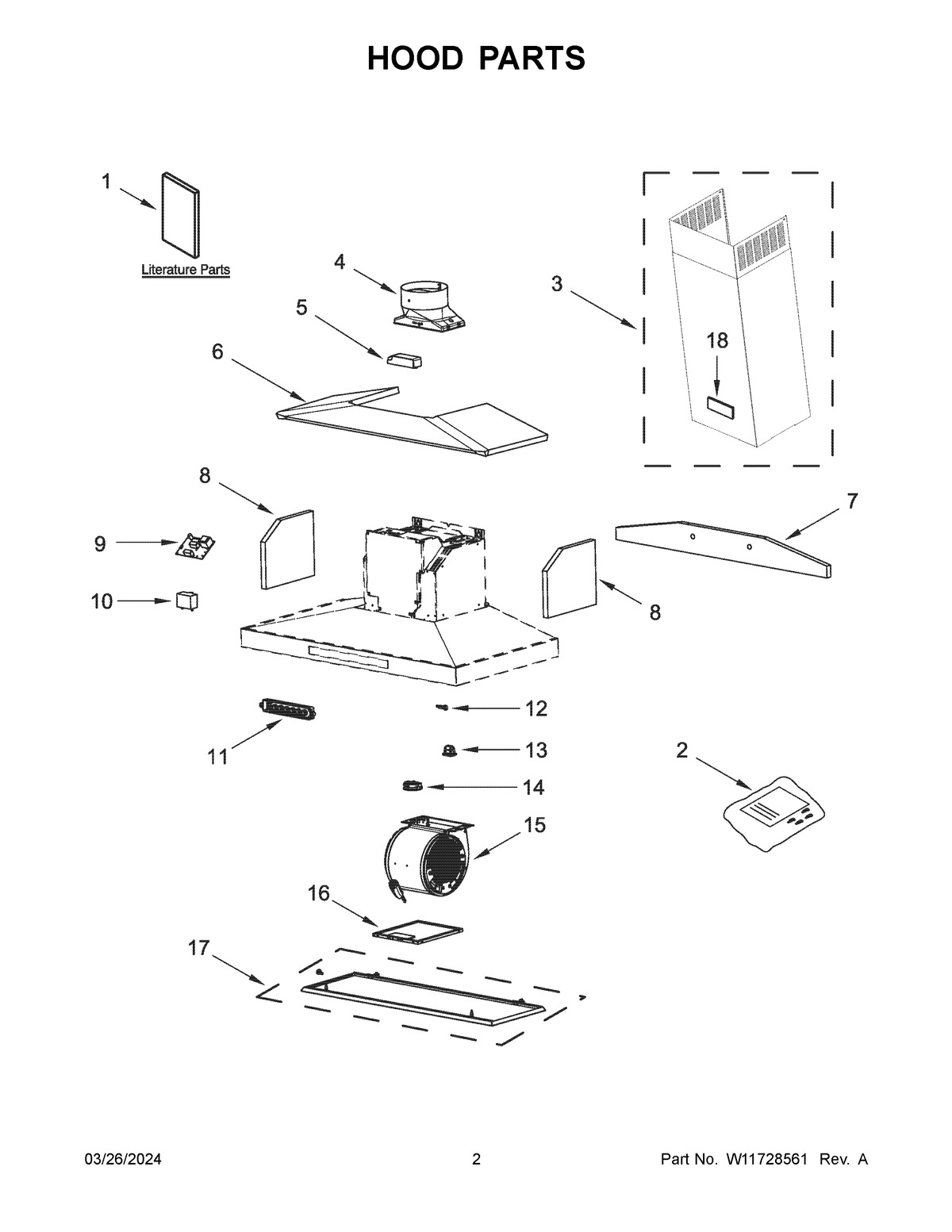

KVWB600DSS4 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	W11321343 Whirlpool Hardware
3	W11321566 Whirlpool Chimney Assembly
4	W10847841 Whirlpool Range Hood Vent Damper
5	W11282989 Whirlpool Transformer
6	W11688772 Whirlpool Insulation
6A	W11688395 Whirlpool Insulation
7A	W11684803 Whirlpool Insulation
7	W11684907 Whirlpool Insulation
8	W10717244 Whirlpool Insulation
9	W11293971 Whirlpool Electronic Control Board
10	W11715950 Whirlpool Capacitor Assembly
11	WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
12	W11737108 Whirlpool Thermostat Switch
13	W10854245 Whirlpool Clip
14	W11493395 Whirlpool Light Assembly
15	W11106377 Whirlpool Blower Fan
16	W10915369 Whirlpool Stove Hood Filter
17	W10735352 Whirlpool Base Cover
17A	W10735373 Whirlpool Base Cover
18	W10909682 Whirlpool Nameplate Tag
