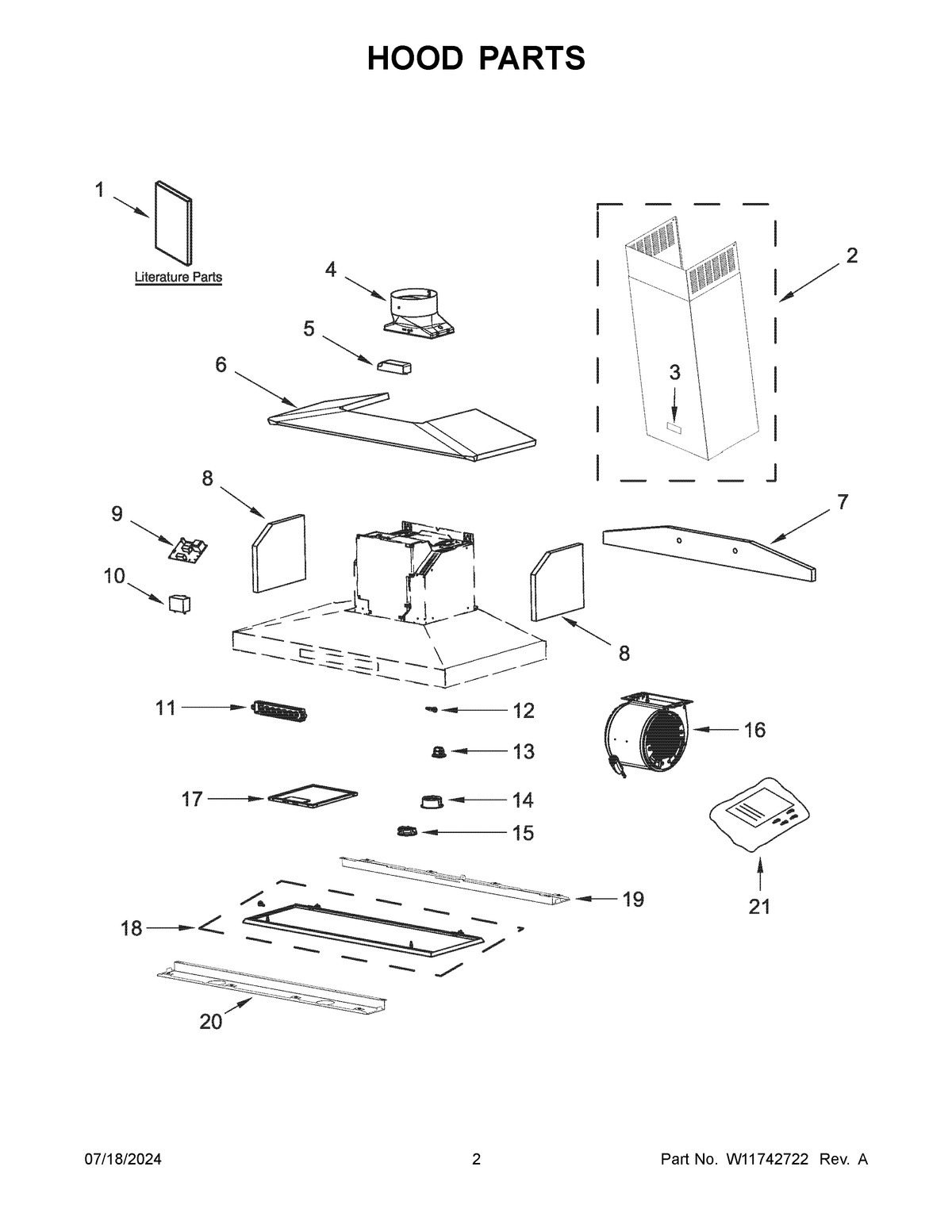

KVWB606HBS3 02 – HOOD PARTS

KVWB606HBS3 02 – HOOD PARTS

Written by

in

KVWB606HBS3 02 – HOOD PARTS

Products

PositionProduct
1AWARRANTY PAGE
1USE AND CARE GUIDE
2W11339715 Whirlpool Chimney
3W10909682 Whirlpool Nameplate Tag
4W10847841 Whirlpool Range Hood Vent Damper
5W11282989 Whirlpool Transformer
6W11688772 Whirlpool Insulation
6AW11688395 Whirlpool Insulation
7W11684907 Whirlpool Insulation
7AW11684803 Whirlpool Insulation
8W10717244 Whirlpool Insulation
9W11293971 Whirlpool Electronic Control Board
10W11715950 Whirlpool Capacitor Assembly
11WPW10716813-includeCORE Whirlpool WPW10716813 Washer Electronic Control Board + Core
12W11737108 Whirlpool Thermostat Switch
13W10854245 Whirlpool Clip
14WPW10638164 Whirlpool Light Bulb
15W11493395 Whirlpool Light Assembly
16W11106377 Whirlpool Blower Fan
17W10915369 Whirlpool Stove Hood Filter
18PANEL, PERIMETRIC (30" MODEL ONLY)
18APANEL, PERIMETRIC (36" MODEL ONLY)
19W11330959 Whirlpool Support Bracket
19ALIGHT PANEL, REAR (36" MODEL ONLY)
20LIGHT PANEL, FRONT (30" MODEL ONLY)
20ALIGHT PANEL, FRONT (36" MODEL ONLY)
21HARDWARE, INSTALLATION
