KVWC906JSS0 02 – HOOD PARTS

KVWC906JSS0 02 – HOOD PARTS

Written by

in

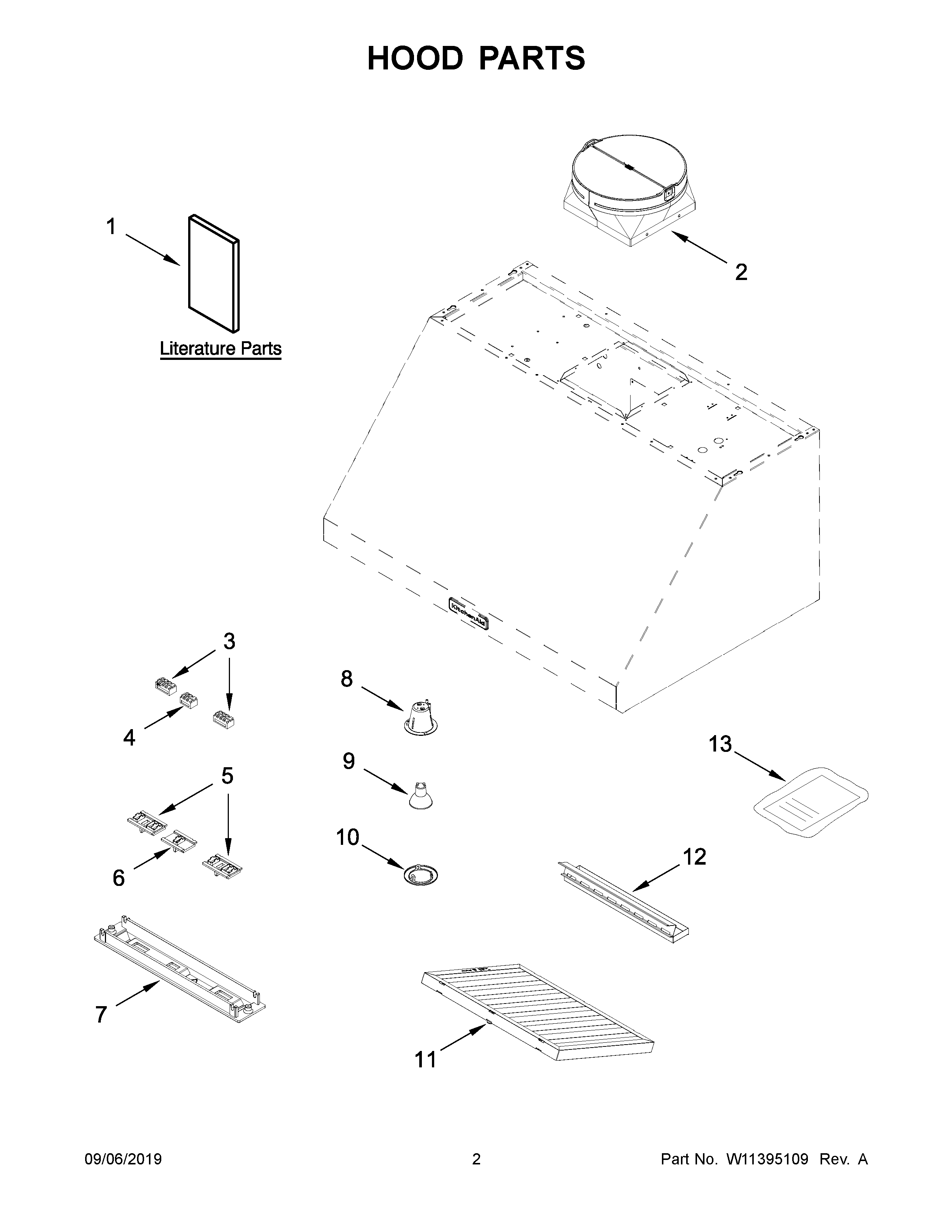

KVWC906JSS0 02 – HOOD PARTS

Products

PositionProduct
NIW10285448 Whirlpool Backsplash
NIW10352735 Whirlpool Backsplash
NIW10225949 Whirlpool Range Hood Backsplash, Stainless Steel, Dual Shelf
NIW10225948 Whirlpool Range Hood Tall Backsplash with Dual Position Shelf
NIACCESSORIES KIT, BACKSPLASH, 48" WITHOUT SHELF
NIW10285449 Whirlpool Backsplash
1OWNERS MANUAL
2W11156393 Whirlpool Hood Damper
3W10853393 Whirlpool Rocker Switch
4W11193832 Whirlpool Rocker Switch
5W11569415 Whirlpool Control Switch Long Slider
6W11662407 Whirlpool Range Slide Switch
7W11387938 Whirlpool Range Hood Control Panel
8WPW10370558 Whirlpool Socket
9W11388881 Whirlpool Light Assembly
10W10351924 Whirlpool Bezel
11AWPW10351929 Whirlpool Filter
11W10351892 Whirlpool Filter Assembly
12AW10294022 Whirlpool Grease Channel
12W10294011 Whirlpool Grease Channel
13W10351930 Whirlpool Hardware Assembly
