KVWC908KSS0 02 – HOOD PARTS

Products

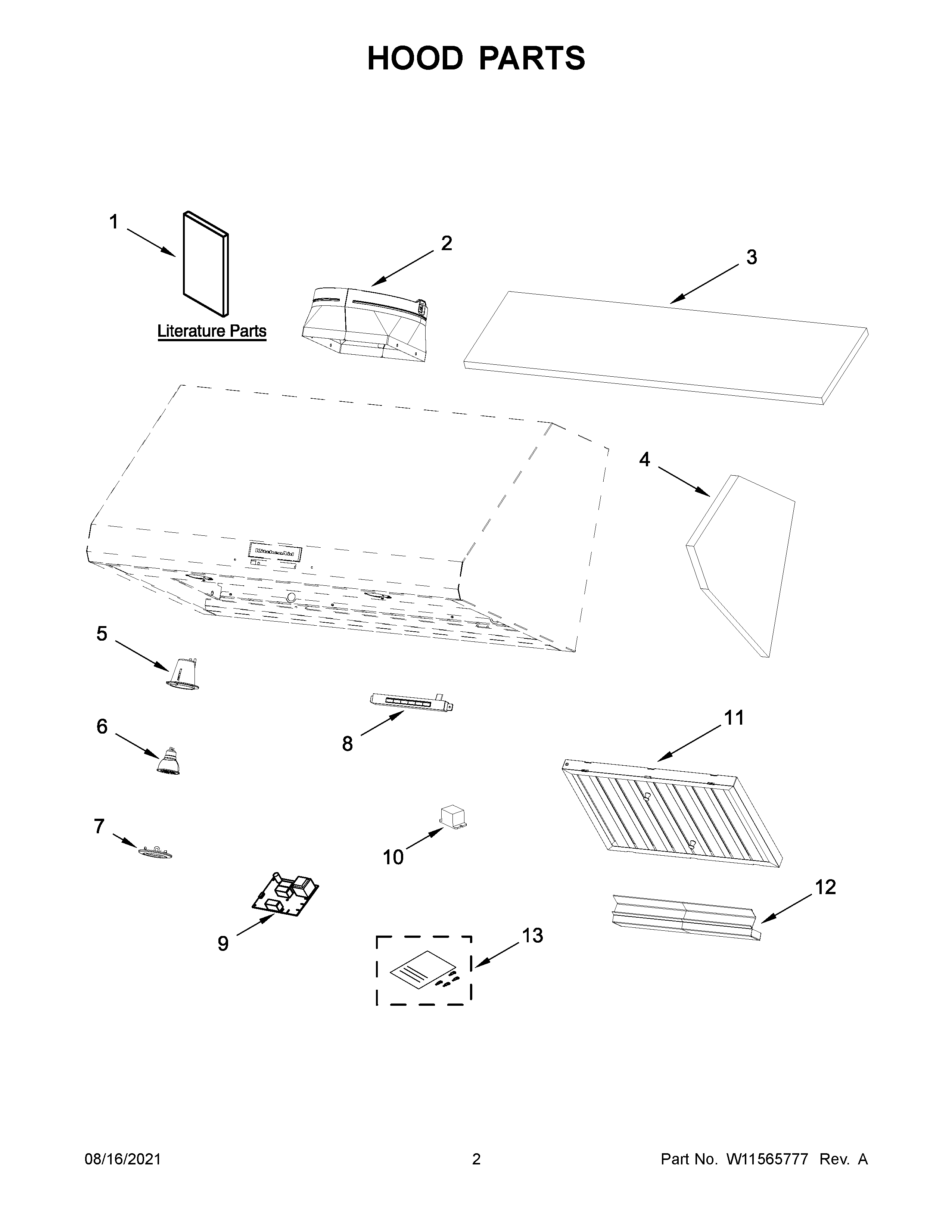

PositionProduct
1USE AND CARE GUIDE
2W11156393 Whirlpool Hood Damper
3INSULATION (36" MODEL)
3AINSULATION (48" MODEL)
4INSULATION, SIDE
5W11565681 Whirlpool Socket Assembly
6W11388881 Whirlpool Light Assembly
7W10351924 Whirlpool Bezel
8W11516463-includeCORE Whirlpool W11516463 Washer Electronic Control Board + Core
9W11700319 Whirlpool Filter
10W11565687 Whirlpool Power Relay
11W10351892 Whirlpool Filter Assembly
11AWPW10351929 Whirlpool Filter
12AW10294022 Whirlpool Grease Channel
12W10294011 Whirlpool Grease Channel
13W11565535 Whirlpool Hardware
